American craftsman window

A handy person from New Jersey says:
July 16, 2022

I am looking to replace broken balance but not sure what one I need. Here are some pictures not sure if its a 6 or a 9. Window is 31x45 thanks Paul

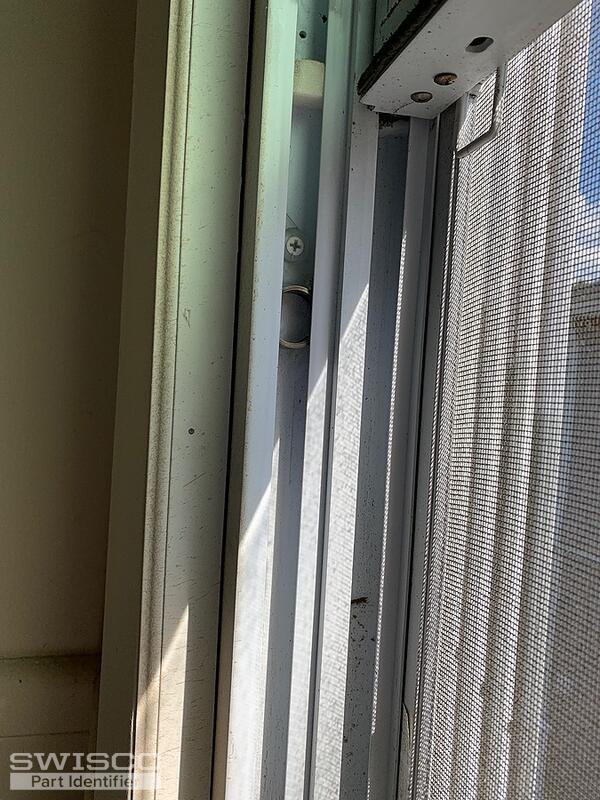

Thumbnail of the uploaded file named B673F3A8-55D7-4702-93AC-128402782C02.jpeg

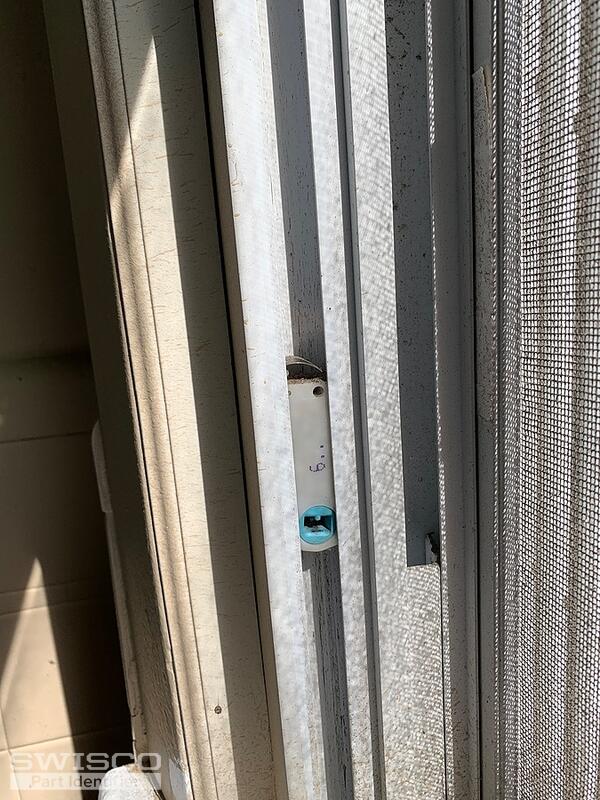

Thumbnail of the uploaded file named 44CD7FC2-521B-4374-9BB8-B35750EDBA7A.jpeg
Profile picture of Casey
Casey from SWISCO responded:
July 21, 2022

Hello,

Your pivot shoe resembles the 15-087, which would use one of the S180-9 coils on each side for an 18-pounds sash but I would recommend weighing your sash to confirm that this would work for you. If your sash weight differs, let is know and we'd be happy to confirm the correct replacement. Thank you!
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
9 lbs Series 180 Coil Balance
9 lbs Series 180 Coil Balance
S180-09
$5.22
Mounting Bracket
Mounting Bracket
16-024
$0.66
