Amerock cabinet hinge

Handy Person from Indiana
Apr 27, 2024 10:13 am
Hi,

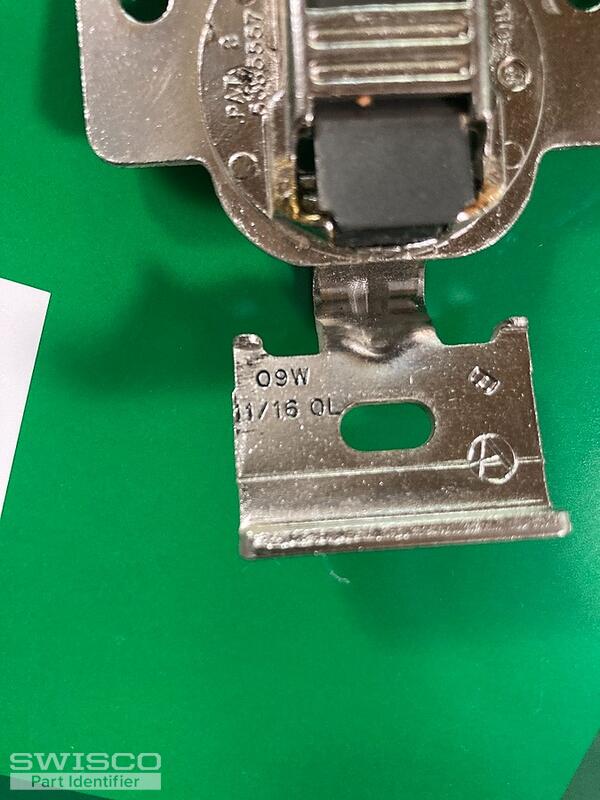

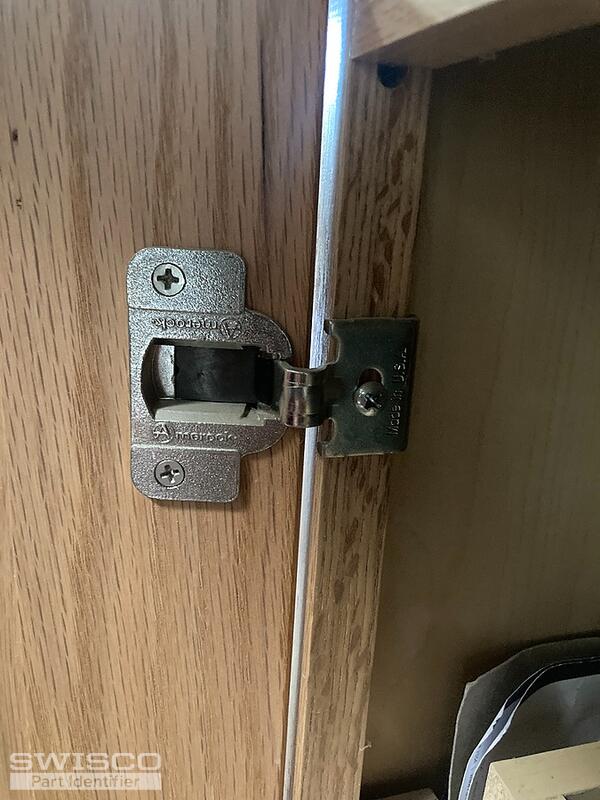

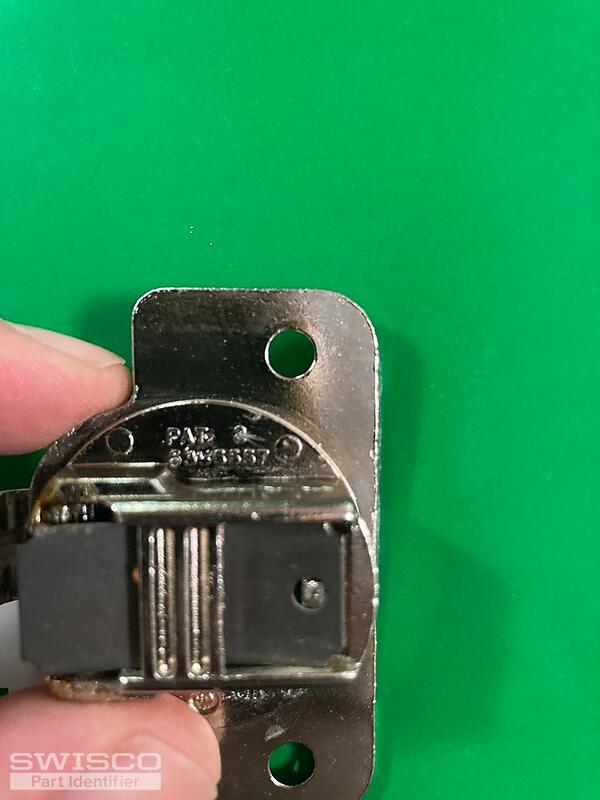

I'm looking for a replacement for the cabinet hinge in the attached photos. The hinge says:

Amerock
Made in U.S.A.
a patent number that I can't quite make out
09W
11/16 OL
hinge1 hinge2 hinge3
3 user uploaded images
3 Replies
+ Add a Comment
Tom
Tom from SWISCO
Apr 29, 2024 10:57 am
SWISCO
EXPERT

We unfortunately don't sell this exact hinge. I've known some customers in the past who were able to adapt our 32-343 for use in this same application, though I believe it does need to be retrofit. It won't be an easy 1:1 match unfortunately.

Look it over and see what you think.

Dimensions for 32-343
Dimensions for 32-343

Handy Person from Indiana
Apr 30, 2024 7:30 am
Hi Tom,

Thanks for the reply. Do you happen to know what sort of adaptations your customers needed to make in order to use these hinges?
Tom
Tom from SWISCO
Apr 30, 2024 8:21 am
SWISCO
EXPERT

Sure, you would certainly need to drill new holes at the very least, and in the chance that the "cup" doesn't fit neatly into the space available in the door, you may also need to make adjustments there.

+ Add a Comment
Products and resources found in this discussion
Face Frame Cabinet Compact Hinge
Face Frame Cabinet Compact Hinge
32-343
$6.75
