Anderain Window balance

Home Owner
I need to replace my window BALANCES.The stamp is 3406 but it is not in your chart, please assist.
1 user uploaded image
5 Replies
Home Owner

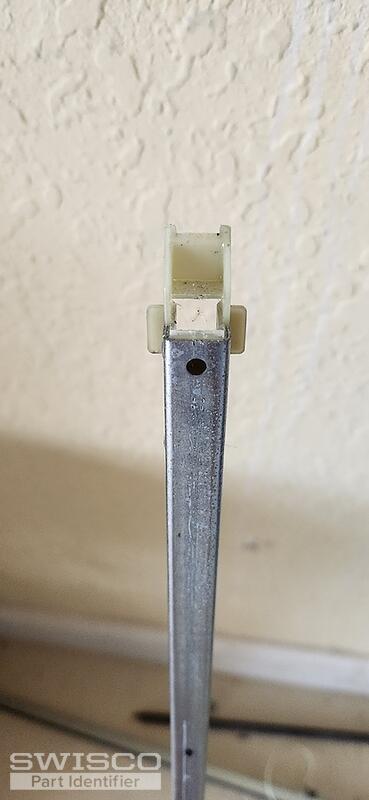

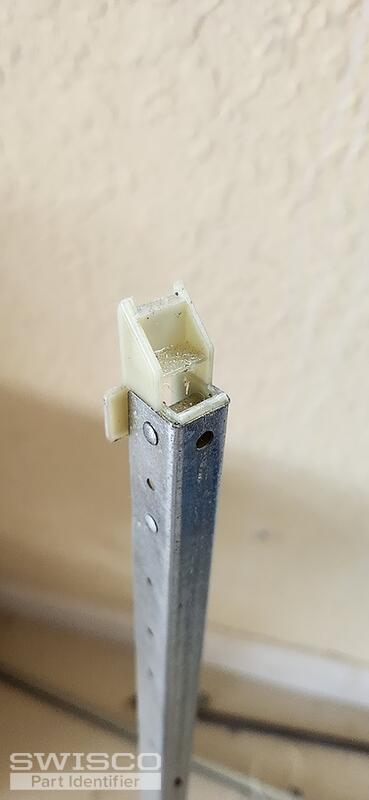

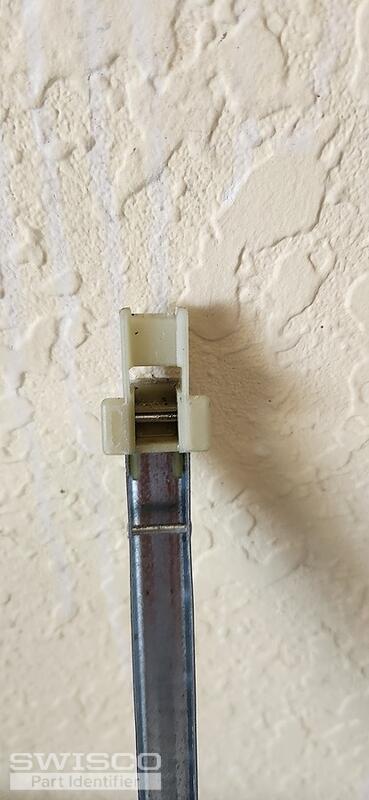

More pictures.
The window weight is 38 lbs.
5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We should be able to assist with new balances for your window. To further review, are you able to confirm the depth of the bottom shoe? It should either measure 7/8", 1" or 1-3/32" as shown in the diagrams below. Please also provide the length of the metal channel excluding the nylon attachments. Thank you!

Dimensions for 15-029
Dimensions for 15-029

Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005

Home Owner
The bottom shoe is 7/8 and the length of the metal is 35".
I also need another balance for a smaller window that measures 30" metal Length and 7/8 bottom shoe. The code on the metal is 2940.

Thank you
Lauren
Lauren from SWISCO
SWISCO
Expert

No problem!

We can provide custom assembled balances that have the 19-005 top attachment and 7/8" 15-029 bottom shoe. For a 35" metal channel and 38 pound sash, you would need a 3460 stamp option that can support a 34-39 pound window sash.

How many of each length do you need? For custom orders, there is a minimum of (2) per stamp/length and nonrefundable. From there I can send over an order link for pricing for your review. Thank you!
