Andersen Operator

Home Owner from USA

Jul 8, 2022 4:10 pm

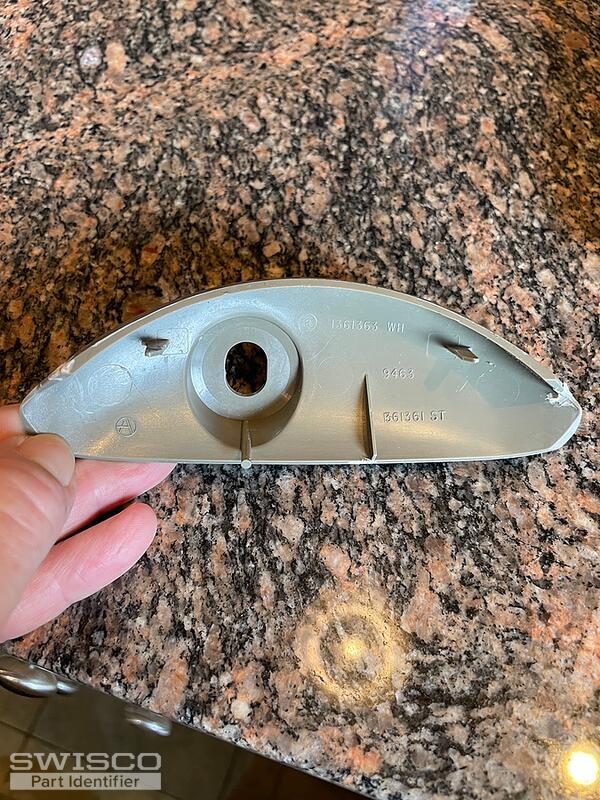

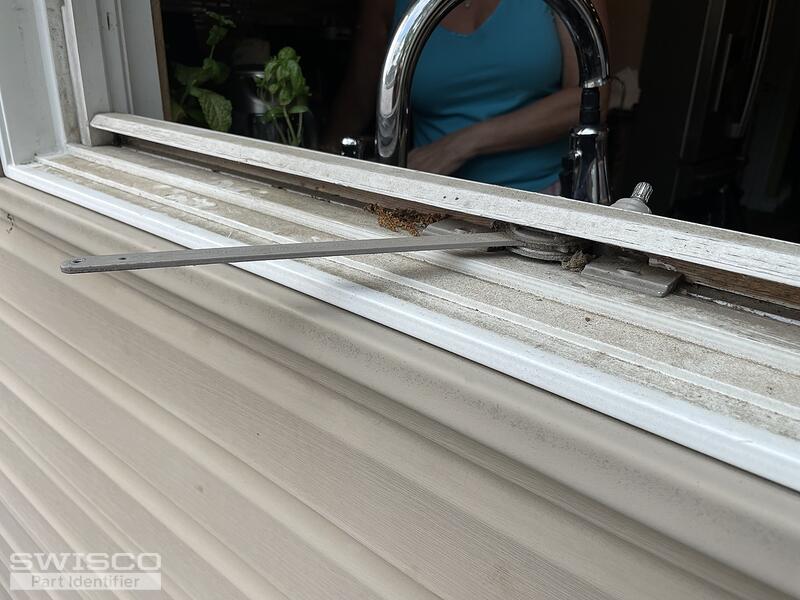

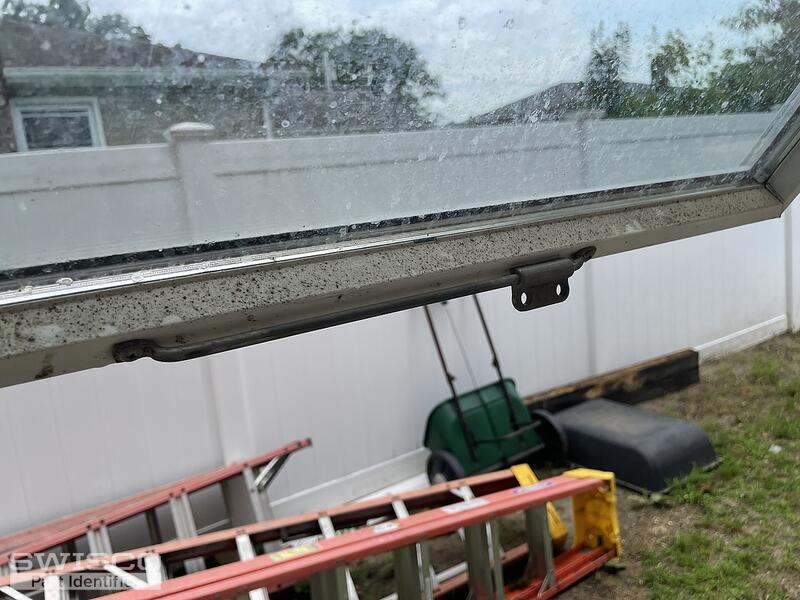

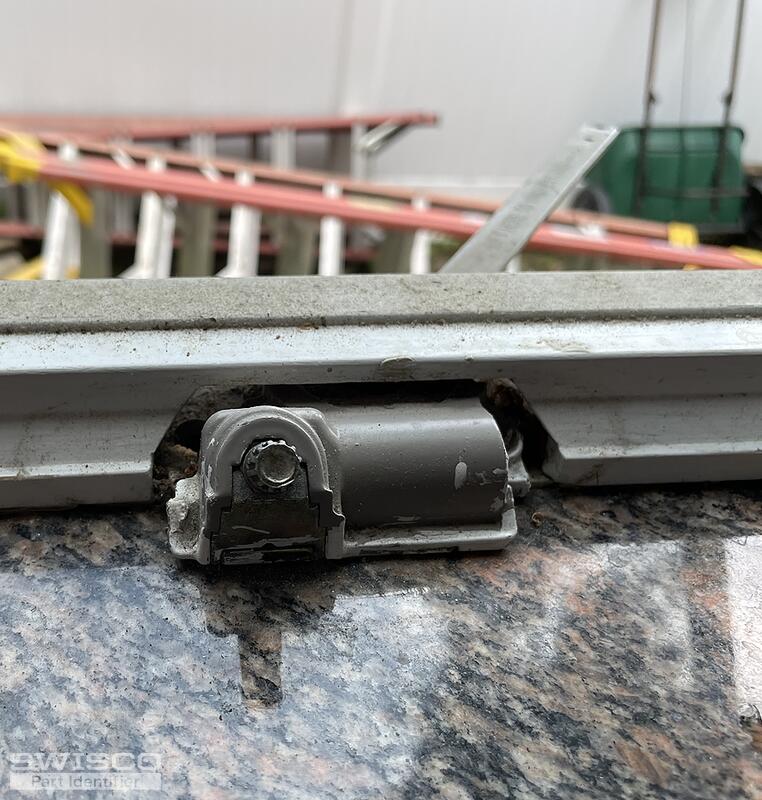

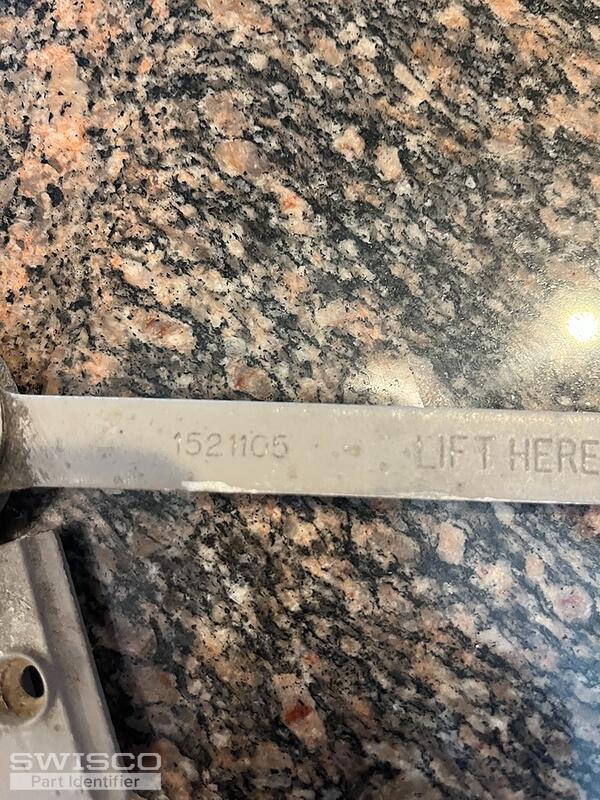

Attached are pictures of our Andersen Awning window specifically the arm operator open and closed, the cover (which appears to be a different style and size on your website) and our specific cover.

We are attempting to verify that the parts below are correct.

We believe we need to order 39-099; 39-267 and 39-152 (?) for our window.

4 user uploaded images

8 Replies

Casey from SWISCO

Jul 12, 2022 3:24 pm

Hello,

I agree that your operator looks like a match to the 39-099 and other related items. You'll just need to confirm that the window was made after 1999. If it was made from '95 to '98, then you'll need the 39-343 instead. Thanks for posting!

Home Owner from USA

Jul 12, 2022 11:27 pm

Thank you so much for this great customer service. Yes, I am fairly sure the windows were purchased in 2001. I will place the order with these 3 part numbers.

I can't thank you all enough for the great customer service!

Donna

Home Owner from USA

Jul 29, 2022 12:58 pm

Dear Swisco

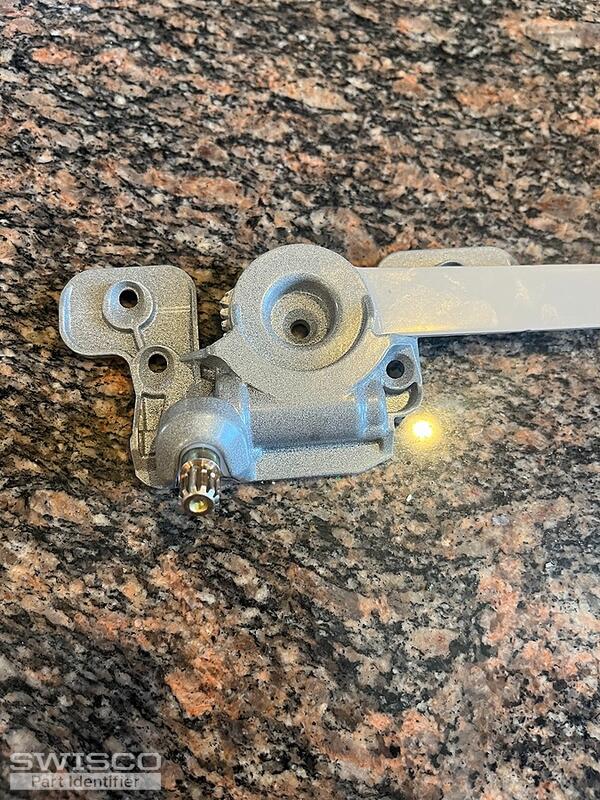

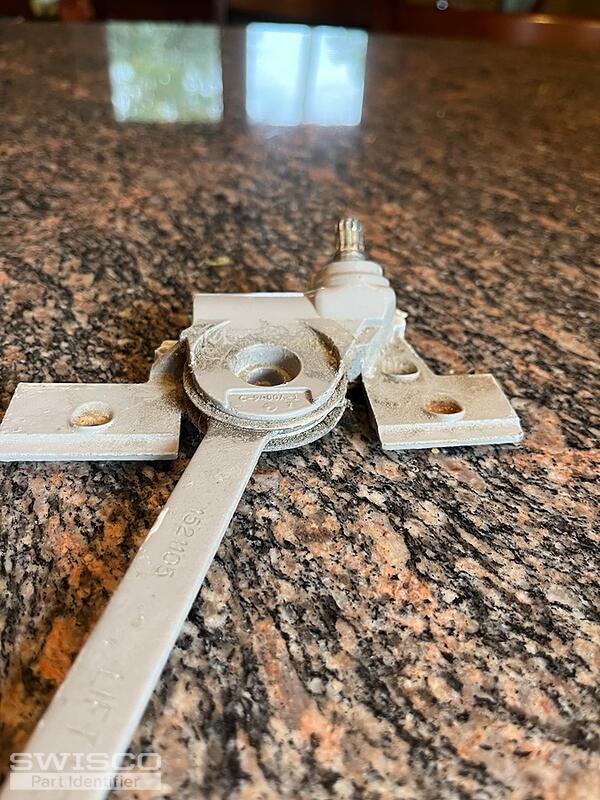

We recently received the Andersen Awning window arm mechanism but it is slightly different than what is currently on the window. All pictures are attached.

Here is a sentence from our prior email conversation for the parts that were ordered most recently.
As per your recommendation, we did pick the correct parts and therefore, we would like to place the order for these 3 items:
39-099; 39-267 and 39-152.

Here is the link regarding the conversation we were following, if that helps at all.Please let us know as soon as you can what part we should order.

By the way, your customer service is OUTSTANDING!

Thanks

4 user uploaded images

Casey from SWISCO

Jul 29, 2022 1:25 pm

I'm sorry to hear that you're having trouble installing your new operator. I don't see any major differences in your photos that would have prevented the 39-099 from working for you but I'm going to have one of our senior experts take a look and see if they have any ideas. We'll reach out as soon as more information is available.

In the meantime, could you go into more detail regarding your concerns and the differences that you noticed that you think would prevent the new operator from working for your application? That could help us point you in the right direction.

Home Owner from USA

Jul 29, 2022 4:34 pm

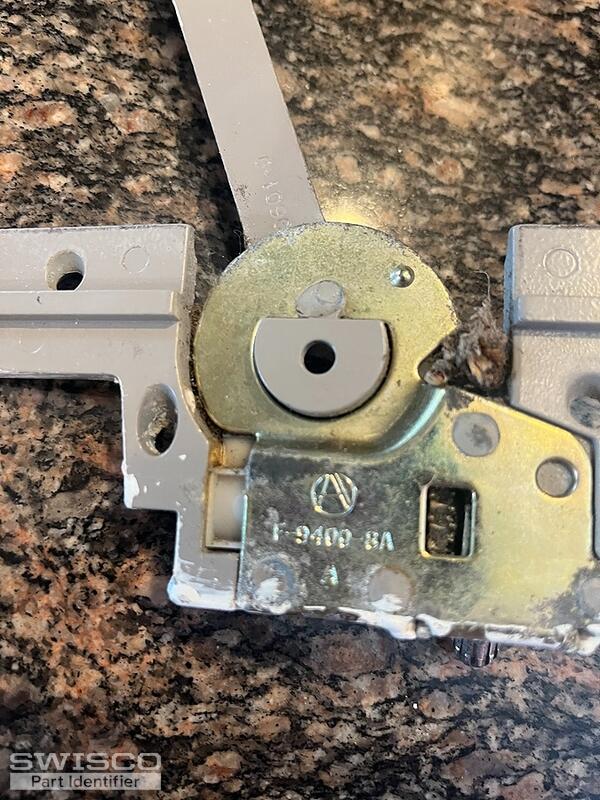

Here is a better view of our current arm. My husband said it has a bevel(?) and the new product goes all around the circle part, if that makes sense.

Otherwise, it would be the exact part needed.

Again, thank you so much.

Donna & Ben

1 user uploaded image

Home Owner from USA

Jul 29, 2022 4:41 pm

After my husband did some more research on your site, he thinks he may have found the right part #39-343. We ordered 39-099. We remodeled our kitchen in 2001 and assumed the window was from that year but the part is for a window from 1995-1998 so the part we received is probably for a newer window.

Hope this helps.

Donna

Casey from SWISCO

Aug 1, 2022 8:57 am

I agree that if your window is actually from 1995-1998, you would need the 39-343. You can find our return policy here to send back the incorrect operator. Please let us know if you have any other questions.
