Does the 11600-17 code identify my Andersen sash balance?

A home owner from Erial, NJ says:
Hi,

I'm trying to repair an old Andersen window where the sash balancer has failed.

I've removed the balancers. I'm trying to find part numbers but the metal is tarnished (discolored) and the numbers are difficult to read.

What I've attached pictures.

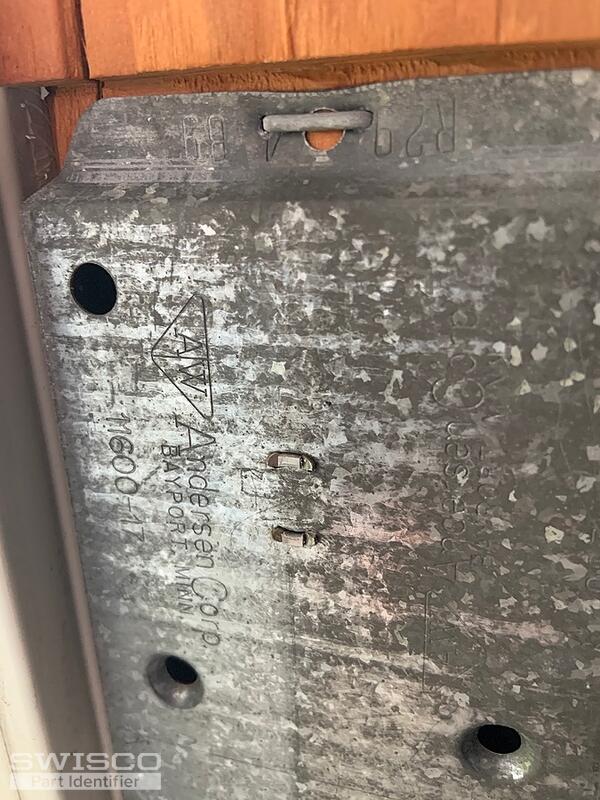

It appears to me the part numbers are 11600-17.
The windows is double hung and the lower glass pane measures 28 1/2 wide by 14 high.
I figure it's about 25 years old.

I also see a number stamped on both balancers:

BJ9 5#23 3-87

I need the left and right balancers.

Thanks
Mike
User submitted image of Andersen sash balance 11600-17
Profile picture of Casey
Casey from SWISCO responded:

Hi Mike, thanks for the great photos! This information is a huge help for us.

To start, the code '11600-17' actually isn't the most crucial stamp here, as it can be found on a variety of different Andersen balances. Fortunately, thanks to the very helpful and detailed information you've gathered here, we can see that the pertinent stamp is the code 5#23. This indicates you need our 24-531 Andersen Sash Balance. This can replace old Andersen balances that include the stamp code 523, or '5#23'.

Please also note that these replacements can be used for both the left and righthand side.

Let me know if you have further questions. We're always happy to help!

A home owner from Erial, NJ says:
Thanks for the quick reply!

Mike
A home owner from Massapequa, New York says:
Hello,

I too have Anderson Windows that are about 25 years old and I need to replace the sash balancers. The only number that I see stamped on the originals is 11600-17. Can I also use the 24-531?

Thank you!

Gary
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid that the 11600-17 stamp doesn't correspond to anything; that specific code appears on a bunch of different Andersen balances and isn't used for identification purposes.

There should be more stamps on the box. We're looking for a code that contains a "#" symbol, though that isn't always present. I recommend sending pictures of each stamp on the balance box to show us. I feel confident that we can pick it out for you and find the best replacement for your application.

A home owner from Massapequa, New York says:
Thanks Tom for getting back to me so fast. Upon further review, I can barely read the bumber 627 stamped on the very edge of the flange and bent by the staple. In looking at the website, I believe that item number 24-637 should be the replacement. Is this correct?

Thanks again. Gary
Profile picture of Casey
Casey from SWISCO responded:

Hi Gary! That's perfect, thank you for checking. Our 24-637 will replace a balancer box with the number 627 stamped on it. I believe this is just the part you want.

A home owner from Massapequa, New York says:
Thank you!!
A handy person from Farmington, CT says:
Try to find replacement
Thumbnail of the uploaded file named 4DD3FDD3-7F1C-404F-B5A5-674316E2F2EC.jpeg
Thumbnail of the uploaded file named 2C500500-0D73-4897-AA02-39ADD593304C.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hello! Thanks for submitting these photos. I see you have the "9#27" stamp printed on your old balance. As it turns out, our 24-939 Andersen sash balance will replace any older balance box with that stamp.

Please feel free to reach out if we can offer any further assistance.

A quick learner from NJ says:
Numbers are 11600-17, 1600 A 3, 531 and 131 700, so I'm assuming it should be 531, #24-531? Thanks.
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting! If your Andersen sash balance has a "531" stamp, then we recommend the 24-531, yes. The 24-531 is designed to replace any older balance with that same stamp.

A handy person from Maryland says:
Sash cord replacement 1600-2
D27. 7#27 5/81
Please advise on replacement, thanks.
Profile picture of Bob
Bob from SWISCO responded:

Hi there! I believe that the 24-737 Andersen balance should work for you. This replaces older Andersen balances that include the stamp code 7#27 or 727.

A home owner from Denton, MD says:
Can you tell me what balancer # I need to order? My balancer is stamped 623 BH24 4 90. Thank you in advance.
Profile picture of Bob
Bob from SWISCO responded:

Sounds like you need the 24-637, which is meant to replace Andersen balances that include the stamp 623.

Let me know if you have further inquiries and I would be happy to advise!

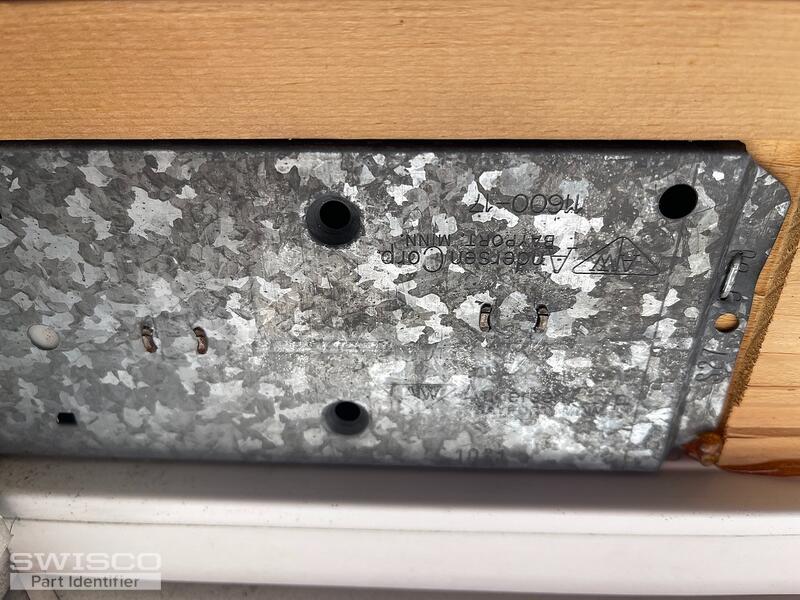

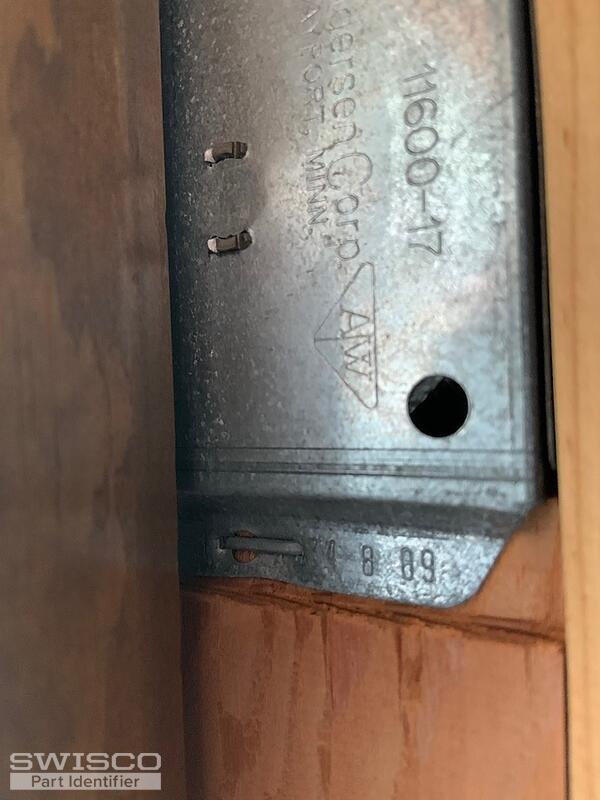

A handy person from Winchester Va says:
I too have a "11600 17" units that need replacing which I now know means nothing so I wonder why that's always the easiest number to read on the unit. :)
One says of mine says S27 6032 9-88 on the body. The other just says S27 9-88 on the staple tab. Neither seems to give any useful google results. Wondering what model I need. See included photos. Thank you in advance for your time.
Thumbnail of the uploaded file named 1F7ACF39-E106-49B5-878C-399A386852B4.jpeg
Thumbnail of the uploaded file named 3D7403C5-4672-4255-883F-F1997379F13F.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for these photos! They're a huge help.

The first photo's balance has a stamp that appears to read "S27 1031" to me. 1031 is the operative code here, which suggests you need the 24-1033 balance.

It appears the second balance has a similar stamp on its bottom edge, but it's hard to make out. Can you please show me a clearer picture of that stamp?

A quick learner from NC says:
Hi, I have a balancer that says 10#31. What balancer should I use? thanks!
Profile picture of Bob
Bob from SWISCO responded:

Hello there. See our 24-1033, which is meant to replace Andersen balances that feature the code 10#31 or 1031.

Let me know if you have further questions, either about this or any other project!

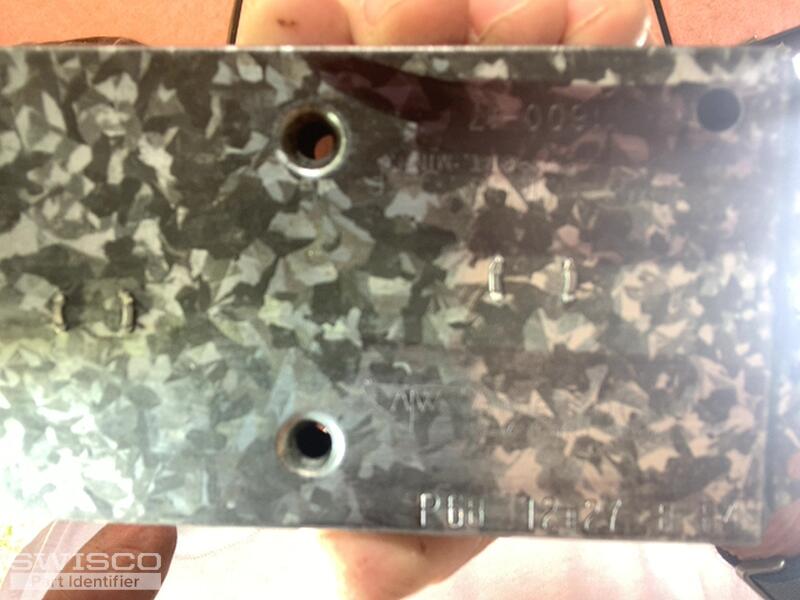

A handy person from Missouri says:
Need to replace balancer on a colonial style Anderson double hung.
I found the following numbers:
11600-17. P68. 12#27 8-84
Can you tell me which balancer to order?
Thumbnail of the uploaded file named webcam-5/2/2021, 8:48:57 AM.png
Profile picture of Bob
Bob from SWISCO responded:

Sure! Since your old balance has the "12#27" stamp, I suggest using our 24-1231, which is meant to replace old Andersen balances with that code.

A quick learner from Massachusetts says:
Hello,

I'm looking for replacement of Andersen sash balance. The numbers that I found on the existing balancer are 11600-17, D69 7#27 8-86. Please let me know what type of balancer I should use.

Thank you.
Alex
Thumbnail of the uploaded file named IMG_5656.JPG
Thumbnail of the uploaded file named IMG_5657.JPG
Thumbnail of the uploaded file named IMG_5658.JPG
Thumbnail of the uploaded file named IMG_5659.JPG
Profile picture of Bob
Bob from SWISCO responded:

Hi Alex. See our 24-737. This is meant to replace an Andersen balance stamped 727, or 7#27. Let us know if you need anything else!

A home owner from California says:
Older Andersen double hung windows need replacement balances.
Nomenclature on existing balances is

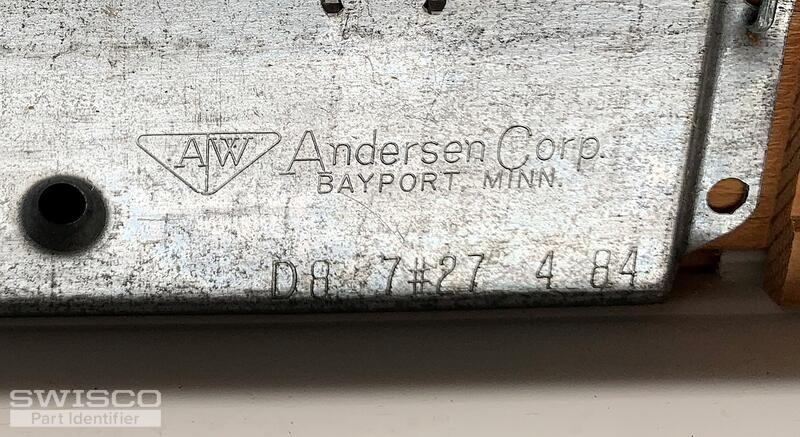

11600-17 D8 7#27 4 84
Three windows
need six balances
Thank you
Thumbnail of the uploaded file named balance nook.jpg
Profile picture of Bob
Bob from SWISCO responded:

See our 24-737. This is meant to replace an Andersen balance stamped 727, or 7#27.

A quick learner from IL says:
What replacement balancer should I use for both the right and left side? Looks like the #'s on each side are a little different, but the balancer looks the same. These windows are from 89/90.
Thanks
Chris
Thumbnail of the uploaded file named IMG_3954.jpg
Thumbnail of the uploaded file named IMG_3956.jpg
Thumbnail of the uploaded file named IMG_3957.jpg
Thumbnail of the uploaded file named IMG_3953.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. See our Andersen 24-939. This is meant to replace old Andersen balances that include the stamp code 927.

A home owner from Michigan says:
Looking for a replacement for a 36" x 64.75" window. Cannot find a 3 digit number on either of them.
Thumbnail of the uploaded file named 268400530_1547745658944920_1789369499358456365_n.j
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look at the 24-L10-1427, which can be used to replace balance boxes with an L10 1427 stamp code. See SWISCO product code 24-R14-1027 for the right-handed balance for this window.

A quick learner from Aquebogue, NY says:
I have 2/different size windows with broken sash balances. 2@ 22"W x 53"H, other is wider.
There were 2 different number combos on the 22"x53" windows: 11600-17, BJ95#27-3-87
11600-3, 3335455
The number combo on the wider window is: 11600-17, 074 7#27 12-86

Please tell me what I need and where I can order them. Also if there not available are there any others that would work? Thank you, Dyan
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your balances with 7#27 stamped on them would be replaced by the 24-737. As for your balances stamped with 5#27, see the 24-531

Thanks for posting and please feel free to reach out with any other questions!

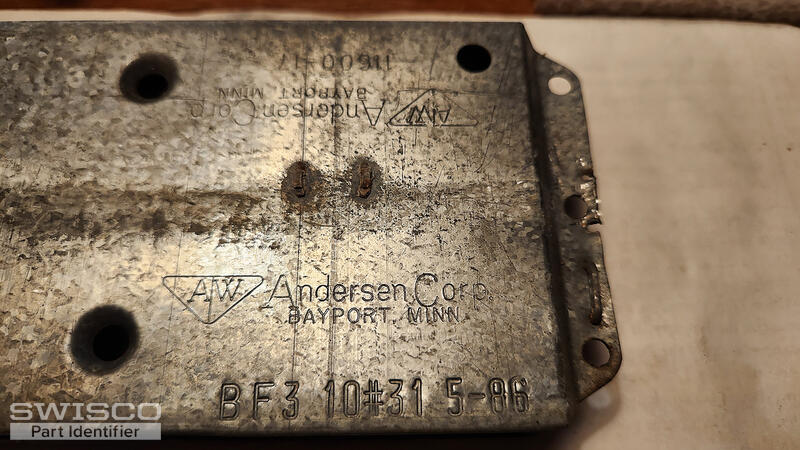

A home owner from Marlboro NJ says:
Hi,

This is the Andersen sash balancer removed from the window. Here is the picture attached. It has a stamp BF3 10#31 5-86 and also 11600-17 at the top. Is the replacement balancer 1031?

Thanks a lot for your help.

Sizheng
Thumbnail of the uploaded file named Andersen sash balancer.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

The 10#31 stamp on your balance indicates that you would need the 24-1033 Andersen sash balance for your repair. Take a look and let us know if you need anything else.

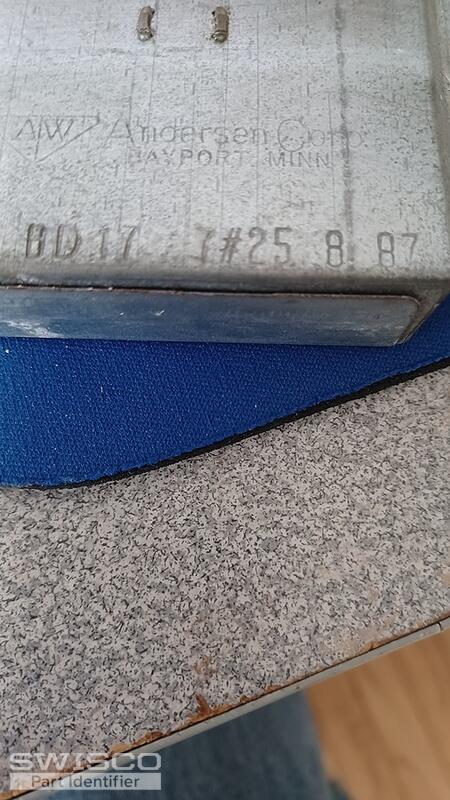

A quick learner from New York says:
What about a replacement balance with the number 7#25 stamped in it?
Thumbnail of the uploaded file named 20230425_165728.jpg
Profile picture of Casey
Casey from SWISCO responded:

The 7#25 stamp code printed on your housing corresponds to the 24-737 Andersen sash balance. This would be my top recommendation, but please let me know if you had any questions. I'm happy to answer anything you need.

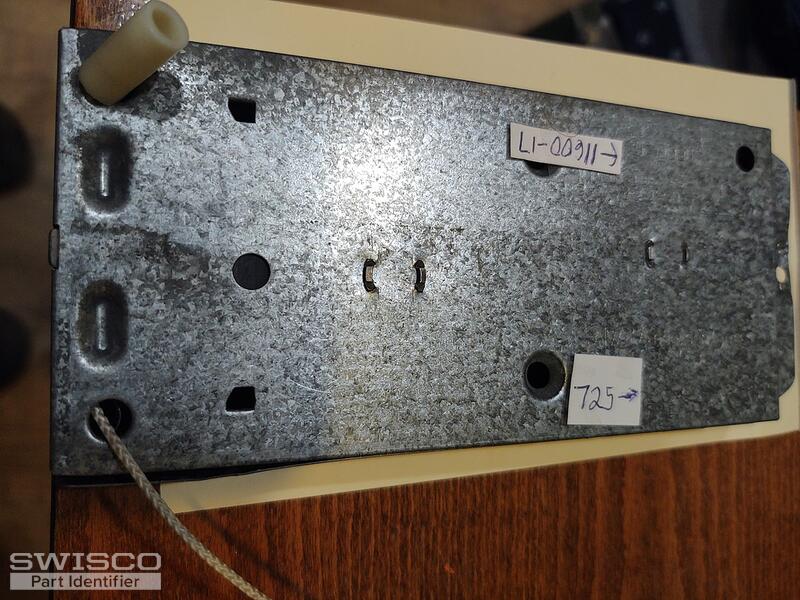

A home owner from Orchard Park, NY says:
My sash balancer 16000-17 There is a number 725 at the same side of 11600-17.(See photos)

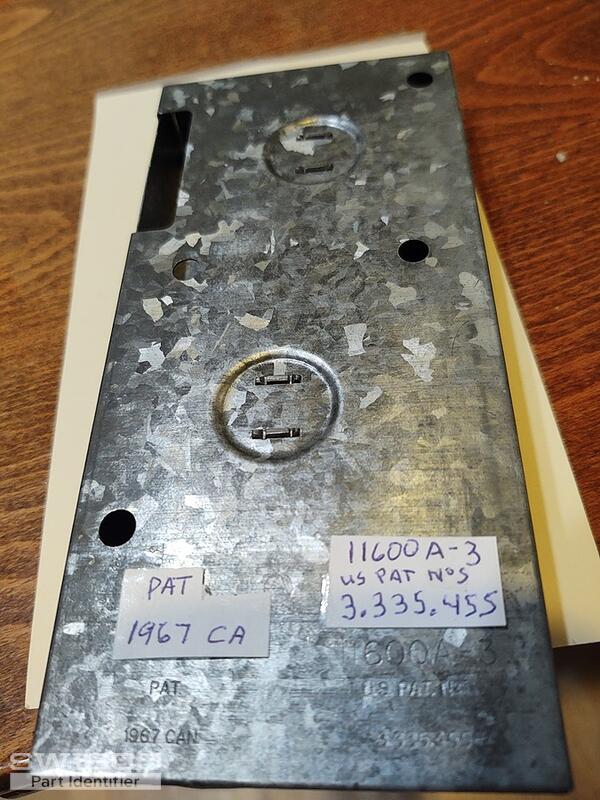

At the other side there is PAT 1967 CA and at the right side of ir: 11600A-3 and below it
US PAT N°S 3.335.445.

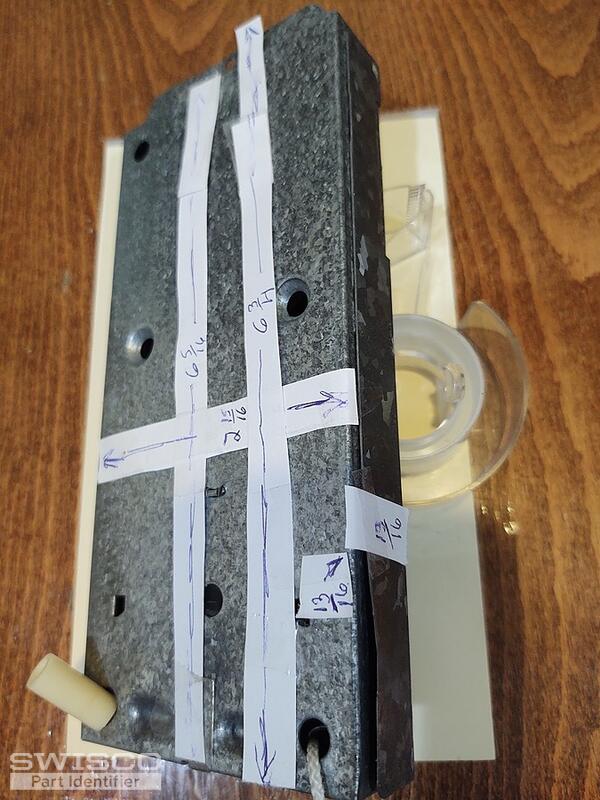

The dimensions of the metal box is 6 5/16 by 2 15/16 by 13/13
The total length of the metal box including the lip is 6 12/16 all in inches
Thumbnail of the uploaded file named thumbnail_IMG_20230706_192818240_BURST000_COVER.jp
Thumbnail of the uploaded file named IMG_20230706_195410364.jpg
Thumbnail of the uploaded file named thumbnail_IMG_20230706_192740523_BURST000_COVER.jp
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I am afraid I can't make out the all the stamps in your photos; however, if '725' is indeed one of the stamps, then my recommendation would be the 24-737. This will replace an old Andersen balance with the '725' stamp.

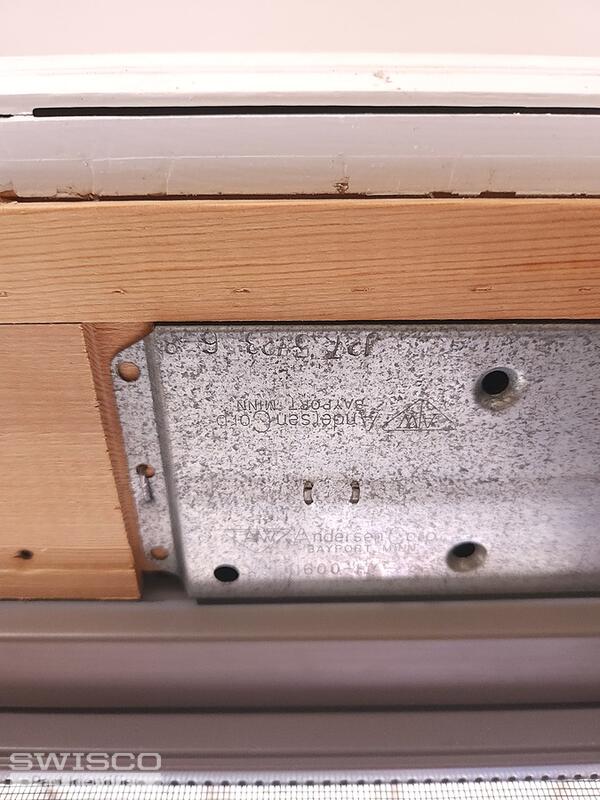

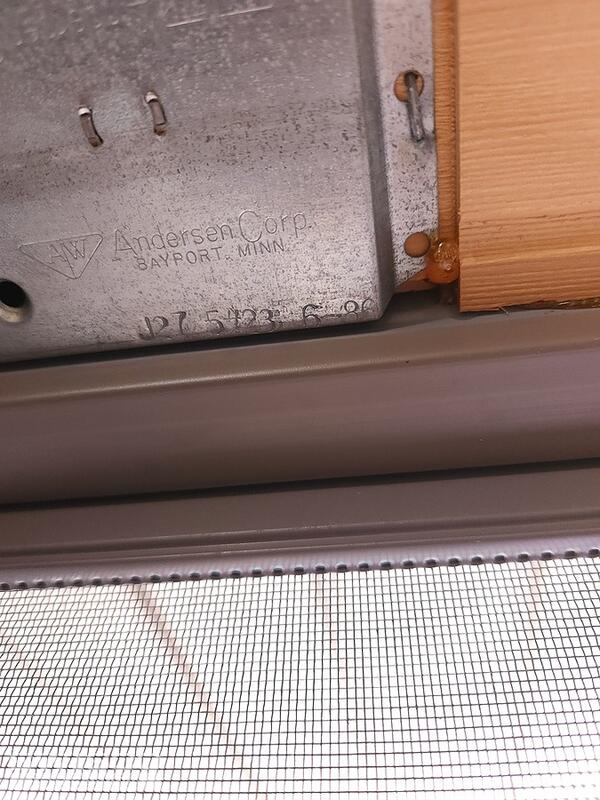

A home owner from Parmus NJ says:
Hello,

can you tell me what parts I need to order to replace our balance?
Numbers are difficult to read but it looks like it says J27 54?23 6-86??

Thank you!
Thumbnail of the uploaded file named Anderson balance1.jpg
Thumbnail of the uploaded file named Anderson balance2.jpg
Profile picture of Casey
Casey from SWISCO responded:

It looks like your stamp may actually be 5#23. The # may have worn away a bit over time, but I can just about make it out. If I'm right, you would need the 24-531 Andersen sash balances for your repair.

Thank you for contacting us and please let me know how else we can help!

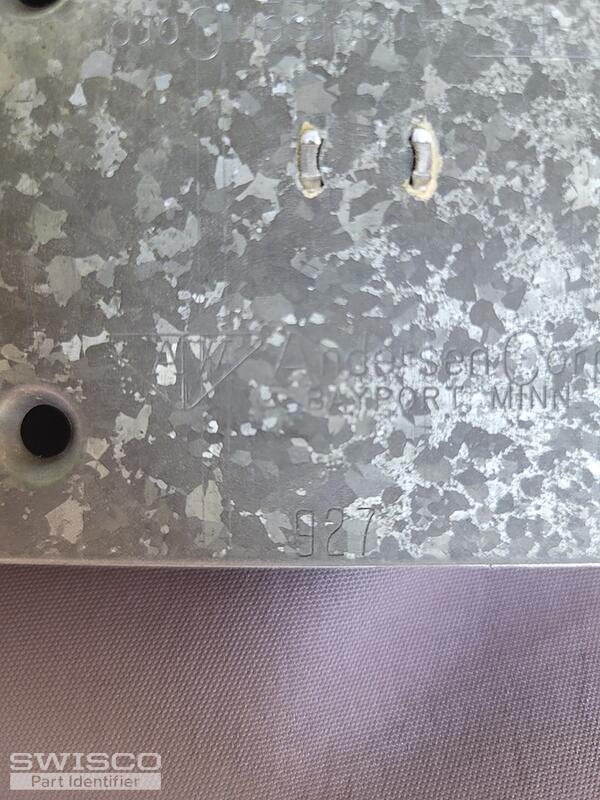

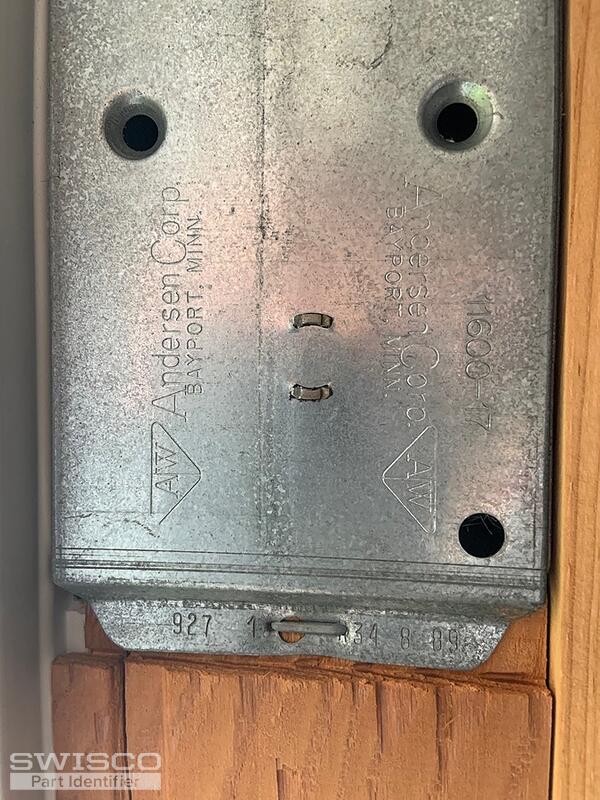

A home owner from Pennsylvania says:
I have anderson balancers that need replaced. The tab qith the number has a hole punched through it bit what i can see is R28 3 89. The box has 11600-17 which apparently is not useful but it also has 927 stamped on the other edge.
Thumbnail of the uploaded file named 1693500502622567867268753712697.jpg
Thumbnail of the uploaded file named 16935005358182782638193232564017.jpg
Profile picture of Casey
Casey from SWISCO responded:

The 927 stamped on your housing indicates that you would need the 24-939 Andersen sash balances for your repair. Take a look and let us know if you need anything else.

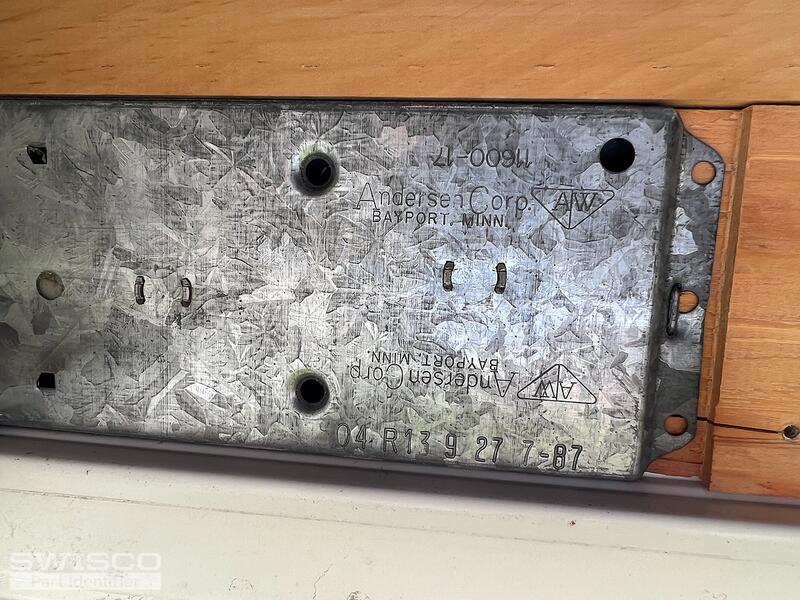

A home owner from Massachsetts says:
Hello:

Could you please let me know which balancer replaces this unit?

the # between the 9&27 is missing but I assume this = 9#27
04 R13 9 27 7-87
11600-17

Also for the same line of windows but smaller (sash weight), would there be different replacement balancers? I have a few other that are not yet broken strings but same vintage 1987/1989 installation.

Thank you!
Thumbnail of the uploaded file named 04 R13 9_27 7-87  11600-17.jpg

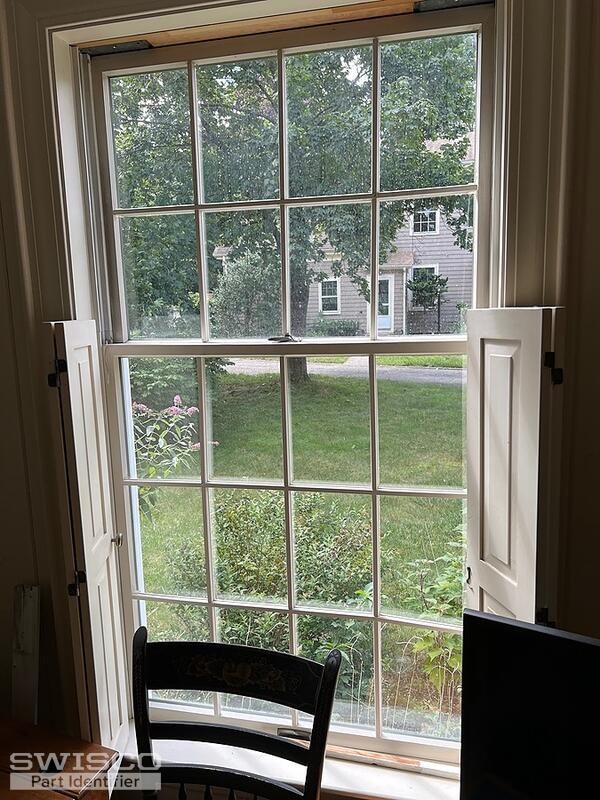

A home owner from Massachsetts says:
Hi:
I just realized that both of these windows have smaller (lighter) upper than lower sash.
Is there a different tension in the Spring/cords - front and back?
Therefore a left/right unit or are they the same tension?

Numbers
04 R13 9_27 7-87
11600-17
*There was no # in the series.

Thank you


Thank you
Thumbnail of the uploaded file named window replacing balancer.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

The R13 9 27 stamp on your assembly corresponds to the 24-R13-927 Andersen sash balance. See the 24-L9-1327 for the opposite-handed version.

Please let me know if you had any further questions. We're always here to help.

A home owner from Massachsetts says:
Hi

Thank you for the above answer. I did go and look at the other side (Duh!) and it was stamped = 04 L9 1327 7-87

One last gut check question - is the Left/Right orientation form the outside looking at the window, or facing it from inside, as I might have assumed.

The reason to ask is the tension on the upper sash (still working cords) is so extremely tight - it's very hard to lower upper sash.

The unit above stamped left = L9 1327 was on the right looking from the inside of room.

Thanks!
Profile picture of Casey
Casey from SWISCO responded:

Sure thing! Andersen actually determines handing from the outside looking in for these sash balances. So if your balance box is on the right when you're looking at your house from the outside, then you want the right-handed box.

Hopefully that makes sense. I'm happy to clarify anything you need, just let me know!
