Andersen Silverline window balancer

A home owner from Ohio says:
May 17, 2023

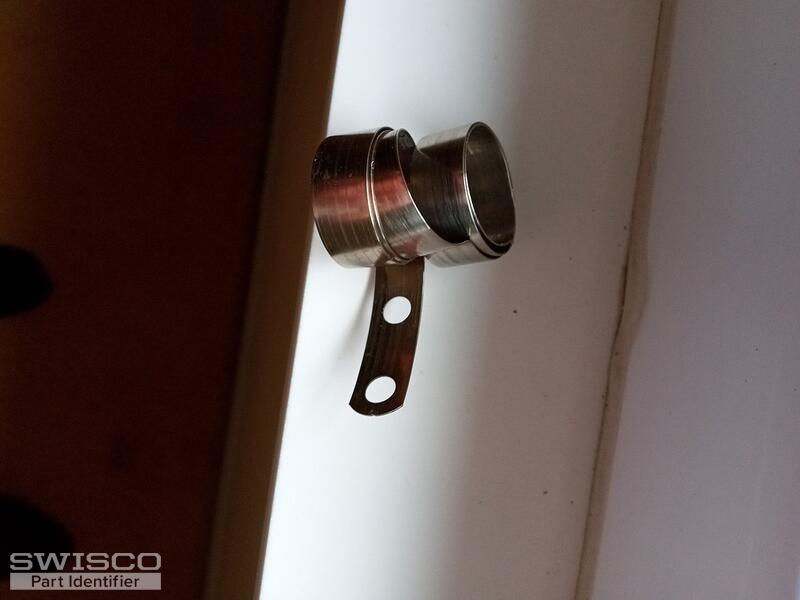

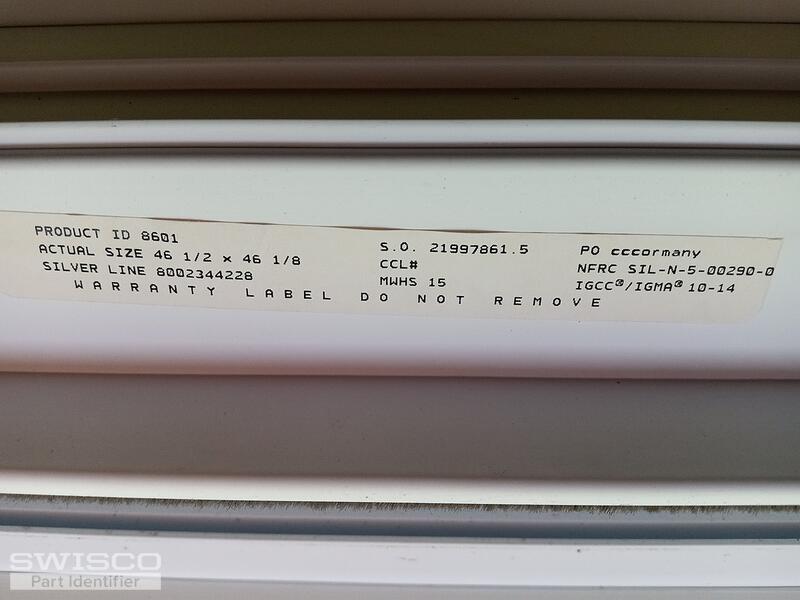

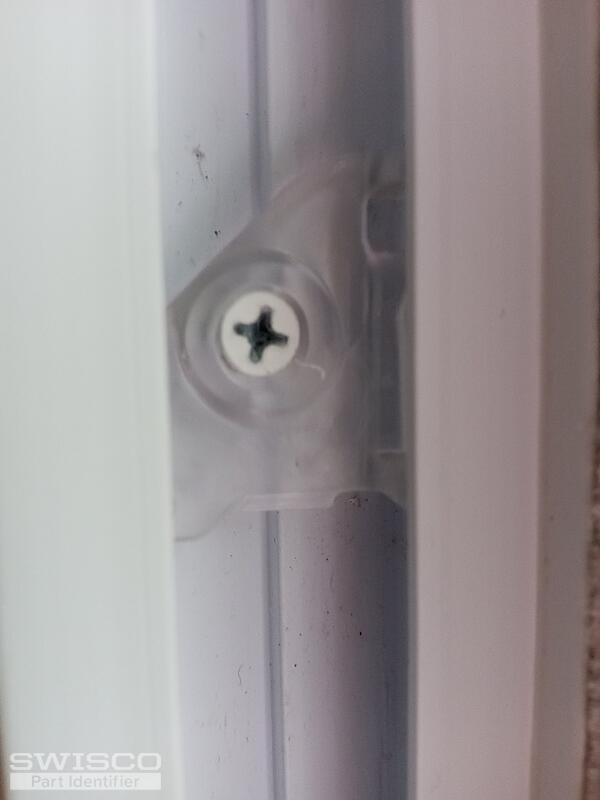

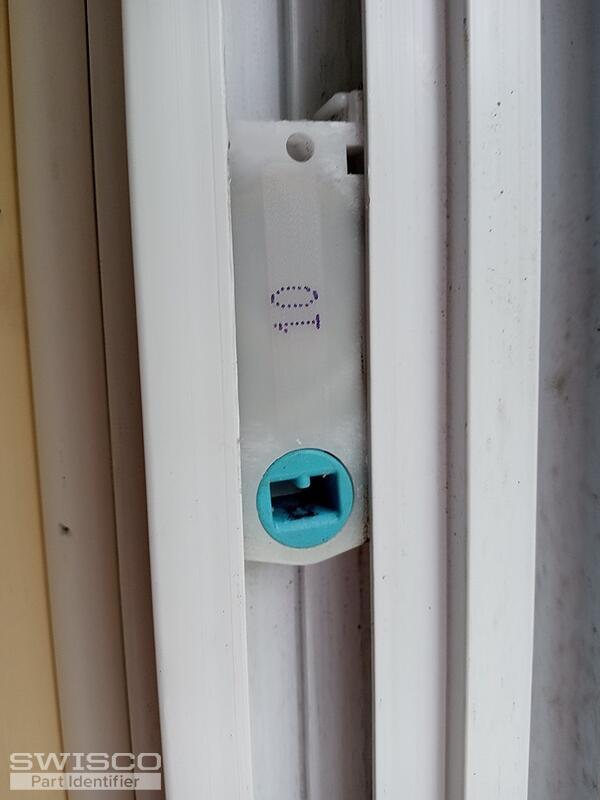

Would like to replace the left and right window balancers for the lower pane of this double-hung window. Approx weight of the pane is 19#. I've included photos of the product label for this window, the slider, the attachment bracket and the end of the broken spring. Please send order info, including prices, for one left and one right balancers and two attachment brackets (if not included with the balancers).

Thanks, in advance, for your help.
Thumbnail of the uploaded file named IMG_20230512_104730205.jpg
Thumbnail of the uploaded file named IMG_20230512_104911369.jpg
Thumbnail of the uploaded file named IMG_20230512_105531622.jpg
Thumbnail of the uploaded file named IMG_20230512_105552520.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 18, 2023

Hello,

Your coil balance resembles our 15-087 housing pivot, which uses the Series 180 coil springs, 16-031 bracket, and other parts listed on our product pages. For a 19-pound sash, you could use one S180-9 coil on each side. Take a look and let us know if you have any other questions. Pricing for each part is shown on our product pages as well. Thanks for posting!

Dimesnions for 16-031
Dimesnions for 16-031

Detail of 15-087
Detail of 15-087

Series 180 coil balance diagram
Series 180 coil balance diagram
Mounting Bracket
Mounting Bracket
16-031
$0.90
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
9 lbs Series 180 Coil Balance
9 lbs Series 180 Coil Balance
S180-09
$5.22
