Andersen handle

A quick learner from Illinois says:
I am looking for a crank to replace this one that will fold to accommodate window shades.
Thank you.
Thumbnail of the uploaded file named IMG_3174.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we would need to see a photo of your operator with the window open so that the arms that move the sash are fully visible. That will allow us to determine which handles are compatible with your operator. Thank you!

A quick learner from Illinois says:
I am looking for a crank to replace this one that will fold to accommodate window shades.
Thank you.
Thumbnail of the uploaded file named IMG_3177.jpg
Thumbnail of the uploaded file named IMG_3175.jpg

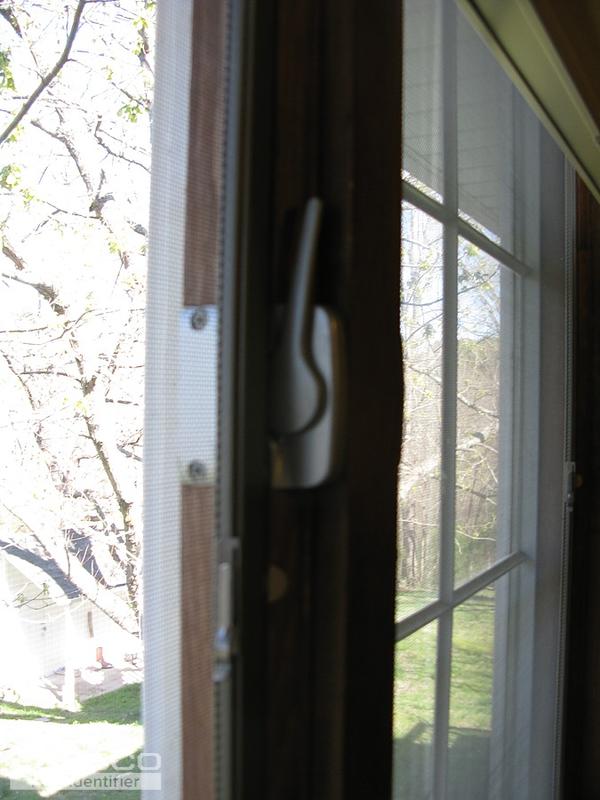

Thumbnail of the uploaded file named IMG_3178.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at our 39-095 Andersen operator, which is the newer style, and see if you can adapt the operator and the track that comes with it to your window. You will also need the 39-286 handle.

A quick learner from Illinois says:
Can I replace the crank with the 39-301 and not have to replace the operator?
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

You will need to remove your existing handle from the operator to see if it will work with the 39-301. This handle, like most Andersen handles, installs on a 3/8" diameter spline.
