Anderson Casement Window Arm Replacement

Handy Person from Wisconsin

Aug 18, 2016 1:48 pm

Hello,

I have 3 Anderson Window crank/Arms that need to be replaced. Two are right hand and the onther is left hand. The numbers on the arm are 1 361 485 R and 1 361 482 HCR. I measured the distance between the pivot points and come up with a measurement close to 14". Do you have a replacement crank/ arm assembly for my application? Thanks,

Barry

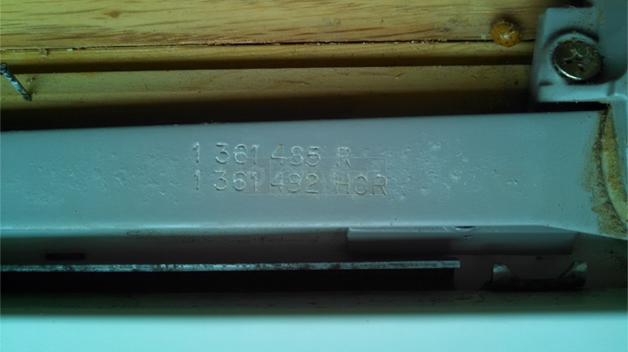

User submitted image of their window hardware.

8 Replies

Tom from SWISCO

Aug 19, 2016 2:00 pm

Hey, Barry. Could you remove the operator from the window and show me a picture of the whole thing? That will help us find a good match.

Quick Learner

Aug 19, 2016 6:17 pm

Here is another picture. Is this sufficient or were you looking for a different view?

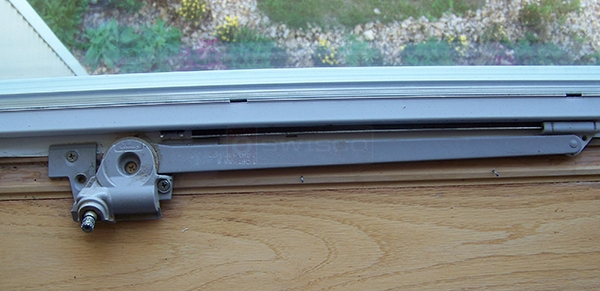

User submitted a photo of window hardware.

Tom from SWISCO

Aug 22, 2016 12:11 pm

This is perfect! Thank you for going to the extra effort. Based on this picture I think you should consider our 39-332. This appears to have the same style and shoe at the end. Let me know what you think. The opposite side is the 39-331

Quick Learner from Wisconsin

Aug 23, 2016 4:59 pm

Tom,
Yes, this looks like it will work for me. I just wanted to verify that the original Anderson handle and cover will work with this operator or will I need to order the corresponding handle and cover listed with the operator? I was also wondering what the operator adapter plate is used for. Thanks,
Barry

Tom from SWISCO

Aug 25, 2016 9:20 am

Yes, the related hardware you see on the 39-332 and 39-331 hardware are compatible. Specifically, these operators can work with the 39-152 cover and 39-267 handle. As for the 39-362 adapter plate, you only need it if your window as manufactured from 1995 to 1998.

Handy Person from Wisconsin

Aug 30, 2016 2:16 pm

Tom, the original hardware cover that I have has the following numbers: 1361529 1361530 4513. Will this cover work with the new 39-332 and 39-331 operator or will I need to order new cover and handle. I was also wondering if I need to ordner a new cover and handle, will it look different or will it be hard to tell the difference from the other windows in the same room? Thanks,
Barry

Tom from SWISCO

Aug 31, 2016 1:51 pm

I'm afraid those numbers don't correspond specifically to anything we have. I've seen it associated with a similar operator, but not necessarily the cover. Numbers printed on the hardware itself aren't often reliable, anyway, as manufacturers often change them over the years. Your old cover and handle may work, since your operator appears so similar to ours, but I don't know if there is anything unique about them that would prevent them from fitting.

If not, the 39-332 and 39-331 operators are designed to use the 39-152 cover. That is the only cover of this style that Andersen makes these days. I don't think you'll be able to find an alternate style.
