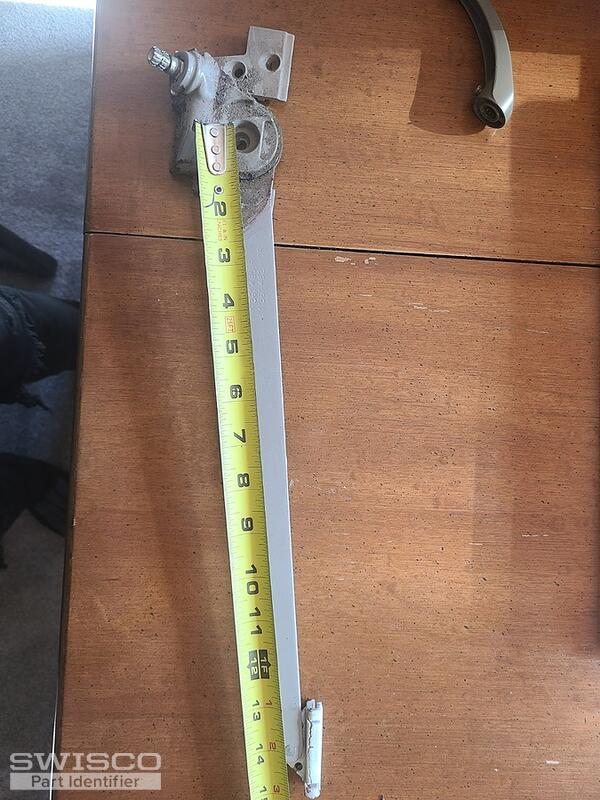

the opener is from an Anderson Window. From the rivot on the end of the arm to the center of where the arm meets the mounting bracket is 14".
The base is 5 3/8" wide.

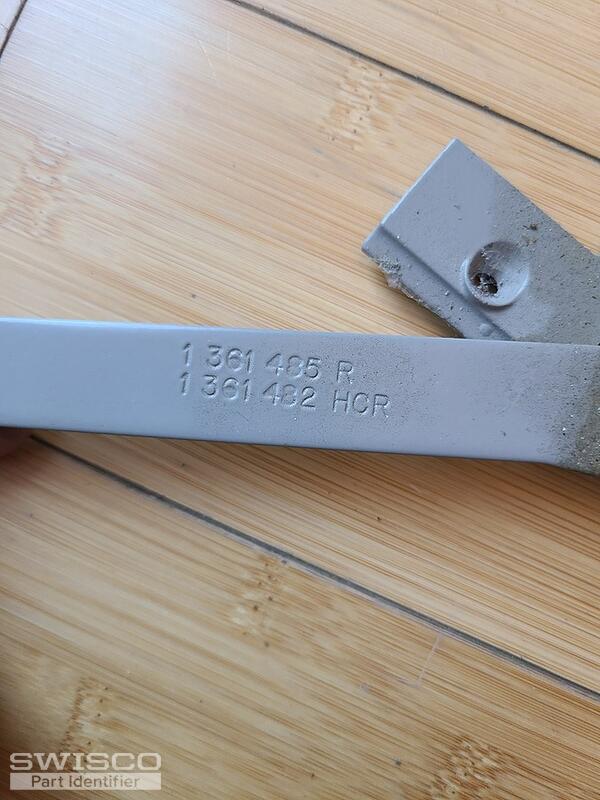

It has the following numbers on the top of the arm: 1 361 485 R & 1 361
482 HOP

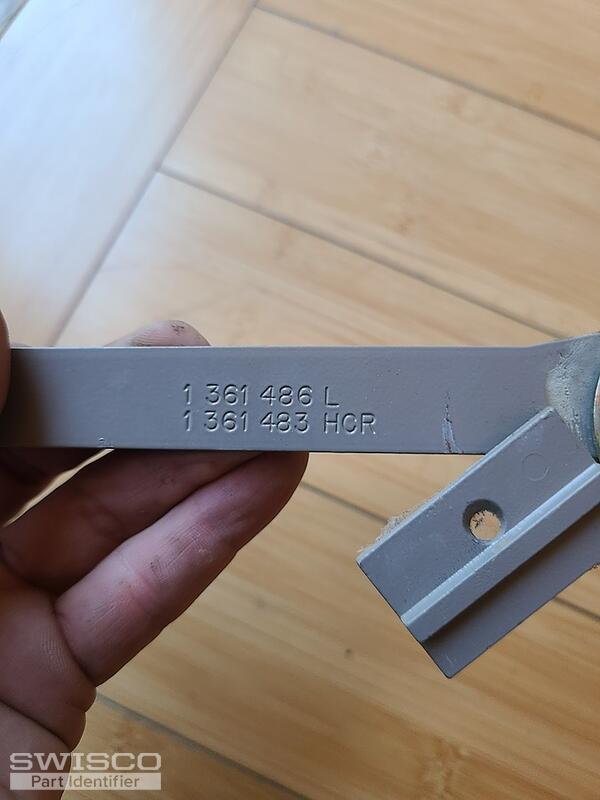

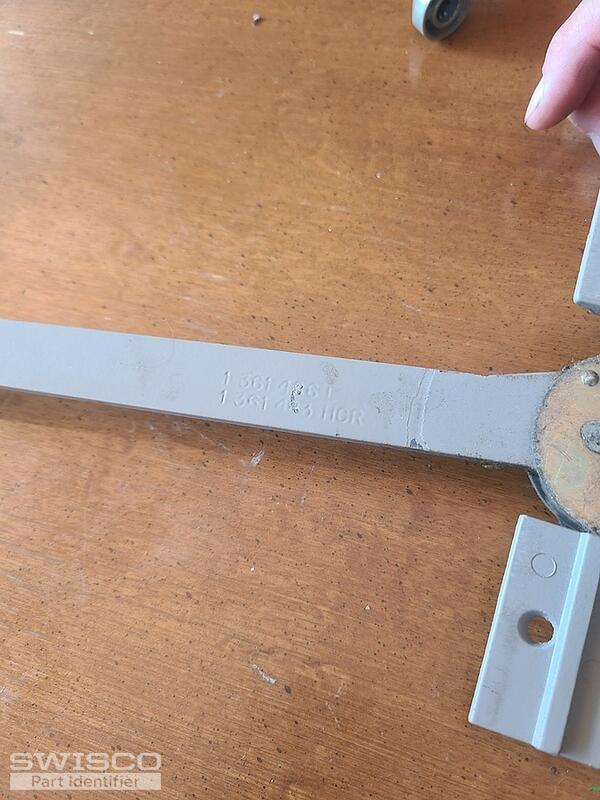

It has the following numbers on the underside of the arm? 1 361 486 & 1 361 483 HOR
It has the following number on the underside of the part that mounts to the window: F-9400-8A
Anderson Window opener
Professional from Colorado
Jul 7, 2023 11:47 am
5 user uploaded images
4 Replies
Jasmine from SWISCO
Jul 10, 2023 11:50 am
Thanks for writing in! Take a look at our 39-332 Andersen E-Z Straight Arm Operator. The opposite handed version is part 39-332. Look over the dimensions and compare them to your existing operator to determine if these are the replacement operators you'll need. You may also need to use the 39-362 Andersen adapter plate.
These operators are compatible with the 39-152 classic operator cover and 39-267 classic handle.
Arm length of 39-332
Measurements for 39-332
Professional from California
Aug 29, 2023 4:01 pm

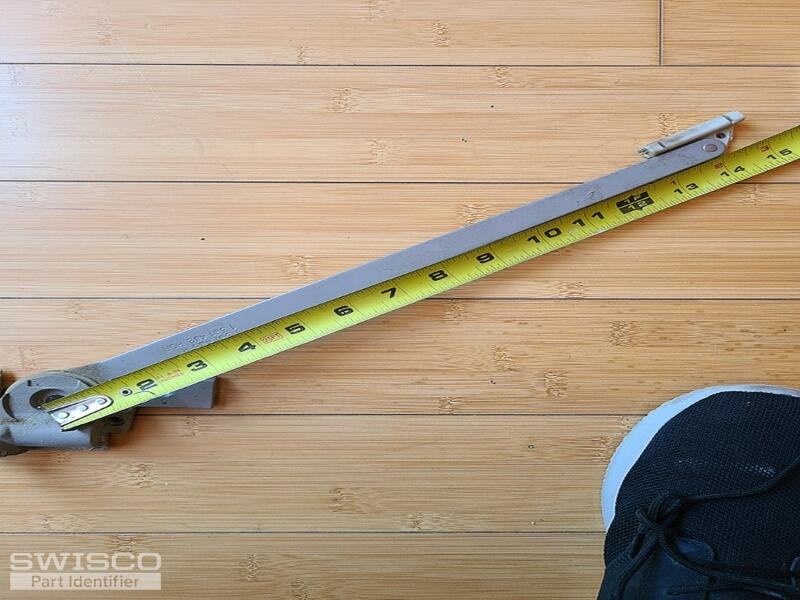

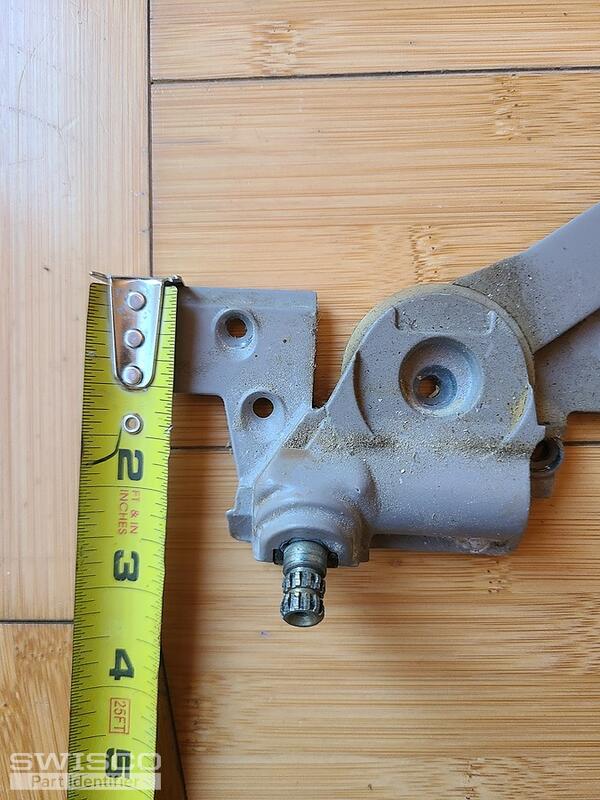

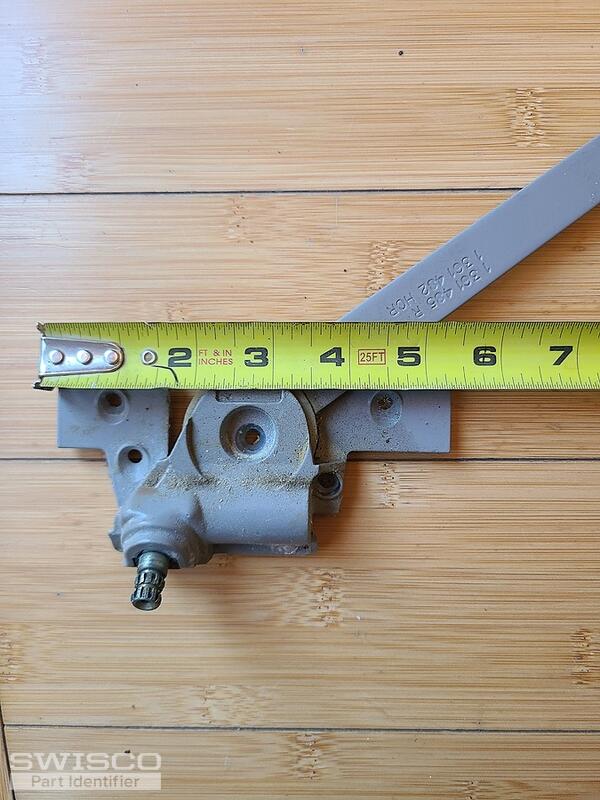

The arm is 14 inches from the rivet at the tip to the circle in the center of the mounting bracket. The mounting bracket is 5 3/8" wide left to right, and 2 1/2" wide front to back. The brand is anderson
5 user uploaded images
Casey from SWISCO
Aug 30, 2023 12:23 pm
Hello,
This looks like the same type of Andersen operator shown in your original post above. If so, take a look at the 39-332 operator that Jasmine recommended in her response, as well as the other related parts. Thank you!
