Anderson awnings

A quick learner says:

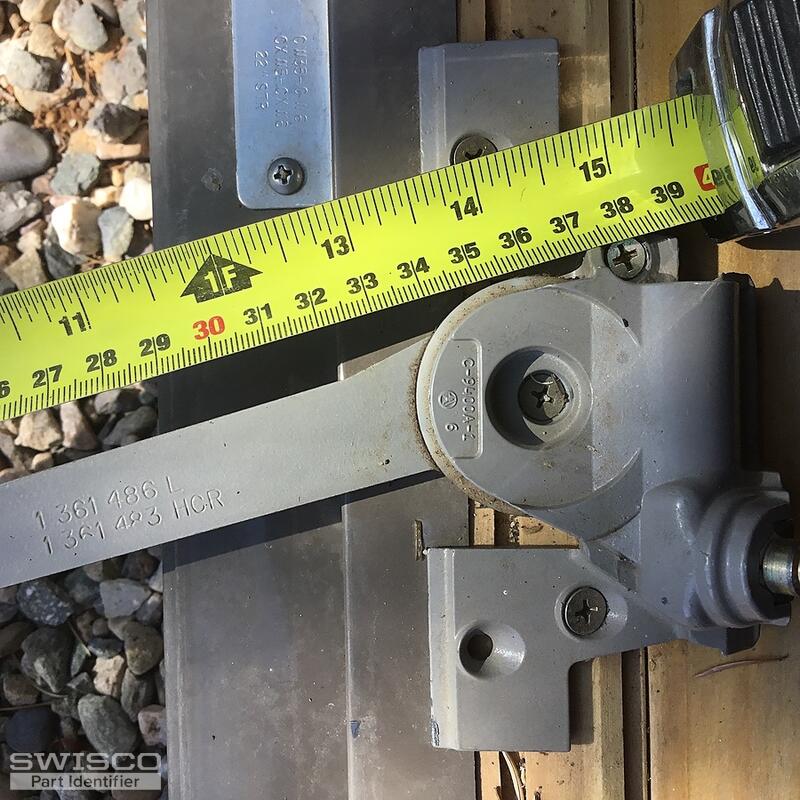

Stamped on hardware is the # c-9400A-1 with 14 inch arm stamped on hing # 1361486L & 1361483 HCR also need the crank handle too thanks ?

Thumbnail of the uploaded file named 6A02B048-605C-4950-AD51-E2F8D0B2CD7F.jpeg
Thumbnail of the uploaded file named 5BDFB6DA-46D2-4103-B0EB-6A001F4E26C9.jpeg
Thumbnail of the uploaded file named 091EA76B-7CD6-428F-8EBA-34A49A11739C.jpeg
Thumbnail of the uploaded file named E4C58D76-A2DD-4558-9EC8-B8D56F62650B.jpeg
Thumbnail of the uploaded file named C65AFF49-EBA7-42FD-B53F-725E9333DC05.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting! Looks like you need a new hinge and operator. The operator appears to be a match for our 39-331, but I can't see your whole parts so this is just an educated guess. Look over the details we show on its store page to confirm. If it differs, let me know how and I will try to find something better.

As for the hinge, we don't sell this exact assembly but our 36-048 should work well as a substitute, but only if you replace the top and bottom at the same time.
