Anderson crank

A contractor from NJ says:
May 23, 2023

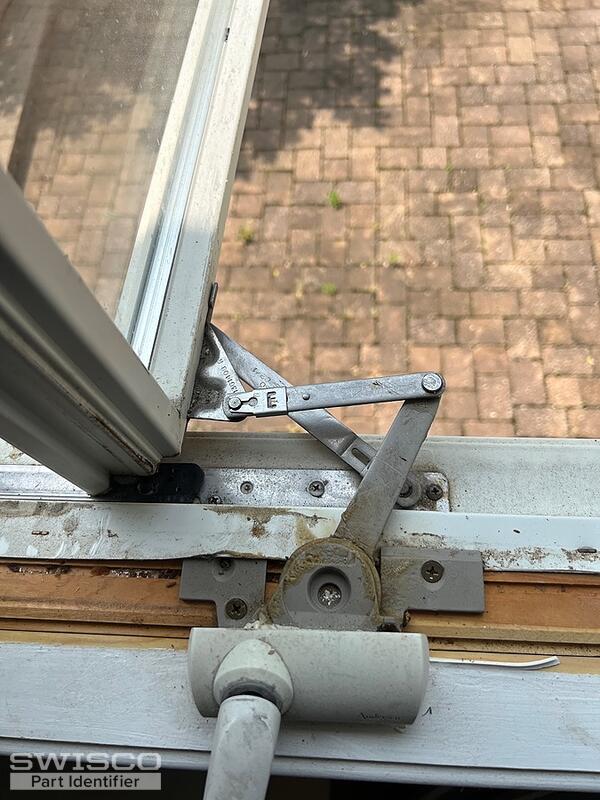

These numbers are on the arm

1361460
07/16/02/1

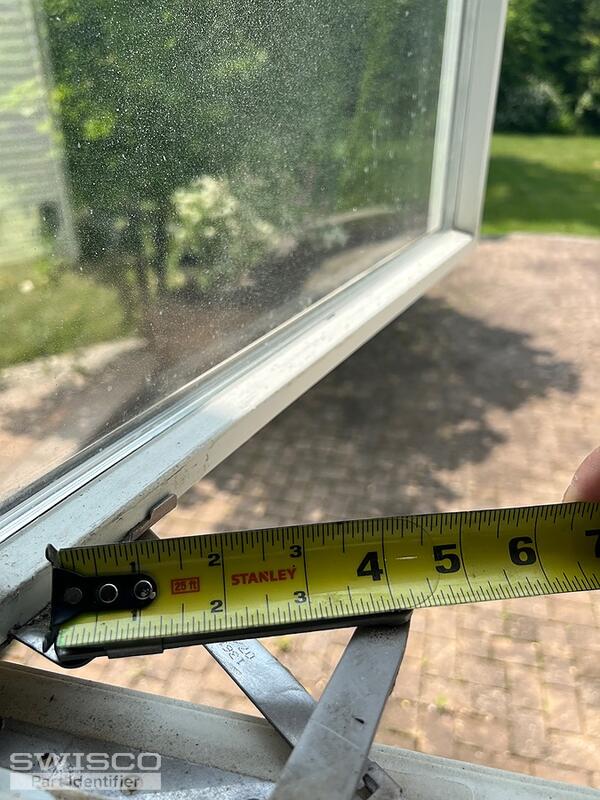

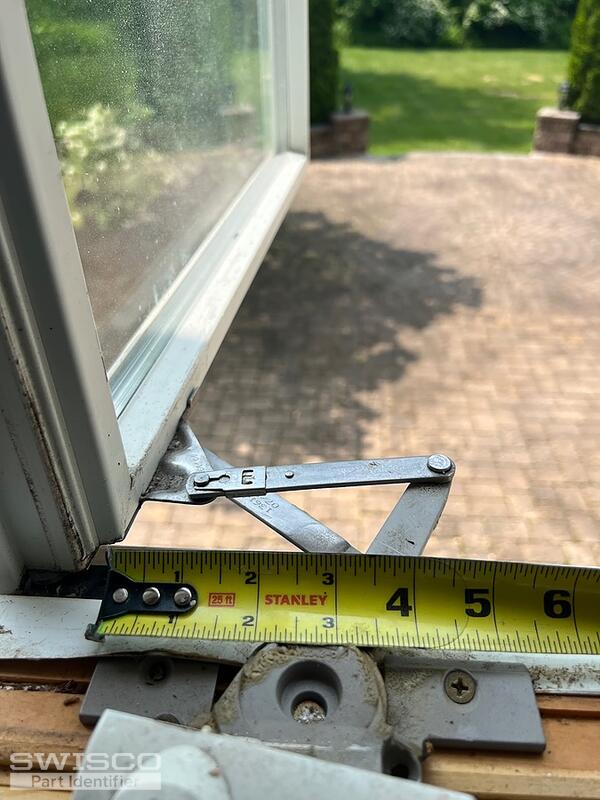

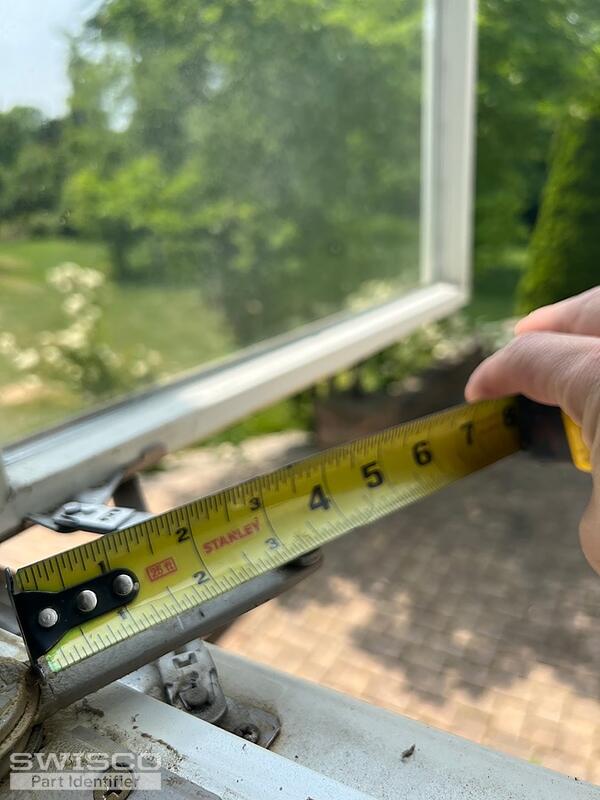

Also measurements of the arms are
3 1/2 and 4 1/4

Thanks!
Thumbnail of the uploaded file named IMG_3389.jpeg
Thumbnail of the uploaded file named IMG_3388.jpeg
Thumbnail of the uploaded file named IMG_3387.jpeg
Thumbnail of the uploaded file named IMG_3386.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
May 25, 2023

Thanks for posting! Your casement operator resembles our 39-264, Andersen Split Arm Crank. To confirm that this is the right fit for your replacement, carefully compare the dimensions below to your existing hardware.

Dimensions for 39-264
Dimensions for 39-264

The compatible cover is part 39-152 and there are two compatible handles; parts 39-267 and 39-268. These parts are sold separately from the operator.
A contractor from NJ says:
May 26, 2023
Thank you.

Will this crank work with both a left and right casement or is there a separate crank for that?

I need to replace the cranks on both the left side and the right side of a twin casement window.

Thank you
Profile picture of Jasmine
Jasmine from SWISCO responded:
May 26, 2023

Yes, this crank does work for both the left and right side of the window.
