Anderson window crank

Start a new Discussion

Quick Learner

Oct 3, 2026 3:16 pm

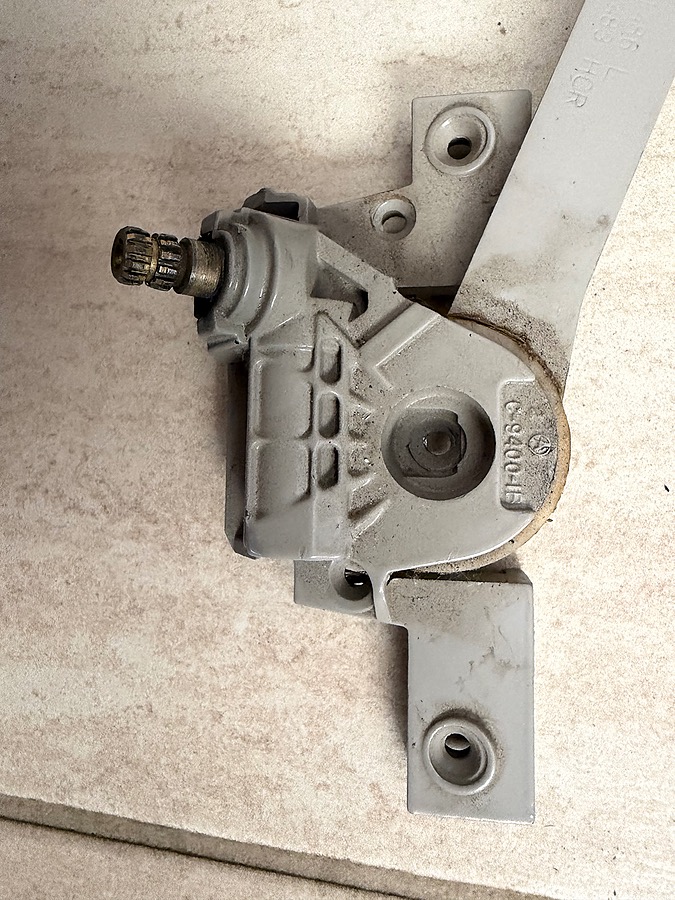

Help identifying parts I need to replace, internal gear is stripped.

4 user uploaded images

4 Replies

Bob from SWISCO

Oct 5, 2026 3:18 am

This might be the 39-499 Andersen Straight Arm Operator. Its opposite-handed version is the 39-500. Take a look and see if you think this might be what you seek.

Quick Learner

Oct 5, 2026 6:27 pm

This is from an older build around 97, do I need any adapters?

Bob from SWISCO

Oct 6, 2026 10:59 am

If your window was made in '97 then I would recommend the 39-362 adapter, yes. This is used to install Andersen operators of this profile that were made from 1995 to 1998.

For context, the 39-499 and 39-500 are made for windows made from 1999 to the present day.
