Quick Learner

Aug 24, 2023 3:45 pm

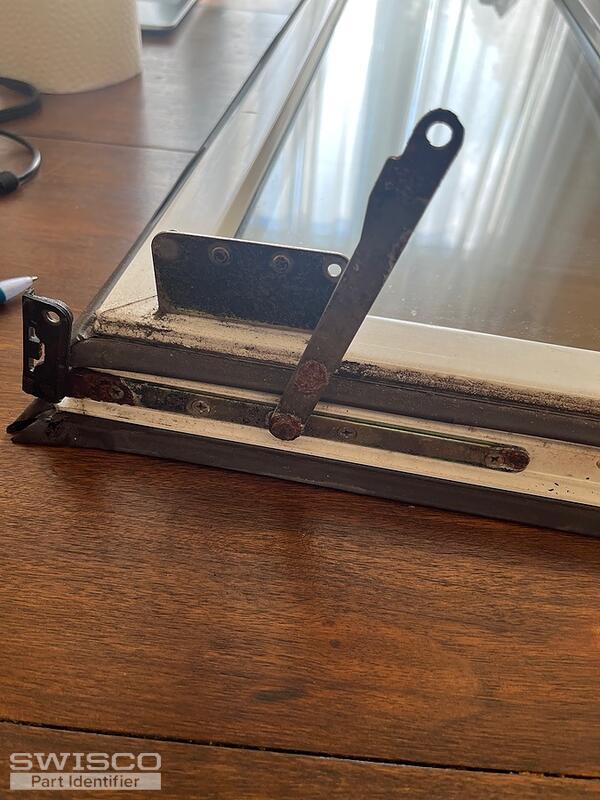

I hope the pictures provide enough information on the parts I need. It's a bow window over 20 years old. The 2 pictures of the part needed is of the right window. The same part is needed for the left window

3 user uploaded images

4 Replies

Casey from SWISCO

Aug 25, 2023 1:16 pm

Hello,

It looks like you are showing casement window hinges that have rusted over time. It's tough to be sure without seeing the entire assembly but your part resembles the 36-048 hinge set. Take a look and compare the specifications to your assembly. Also, keep in mind that both the top and bottom hinges should be replaced at the same time. Thank you!

Detail of 36-048

Additional dimensions for 36-048

Quick Learner from River edge , nj

Oct 10, 2023 2:27 pm

Hi

I thought the top piece was included in my order, I need two of those top pieces but I don't know the part numbers. The numbers for the parts above are the same so I bought 2, one for right and one for left.

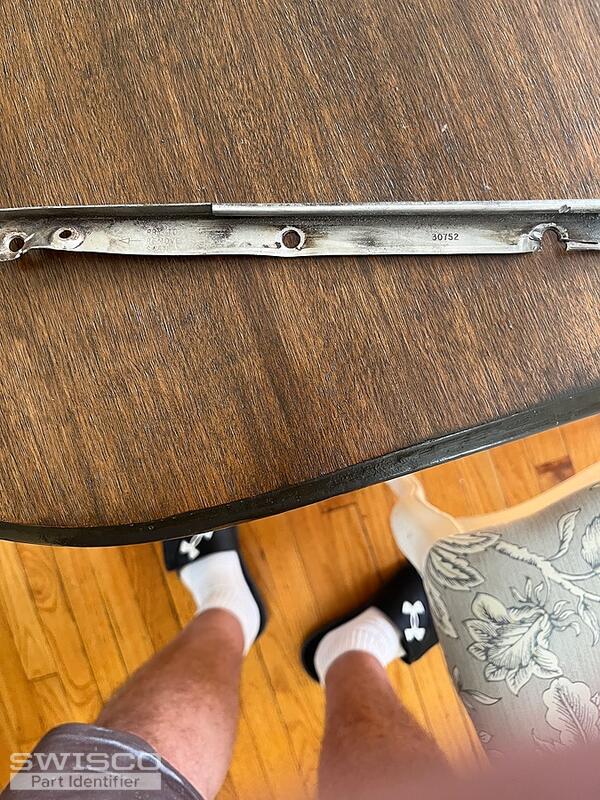

Secondly I need the brackets the arms attach to for top and bottom, left and right. I've attached a picture of the bottom bracket. I believe the bottom bracket is 30752 I added a picture of it

2 user uploaded images

Casey from SWISCO

Oct 10, 2023 2:39 pm

We'd be happy to help but I'm a bit confused. I see that you purchased a total of three sets of 36-048 hinges. Each set comes with two hinges, one for the top and one for the bottom of the sash. Are you having trouble installing the hinges on the top of the sash?
