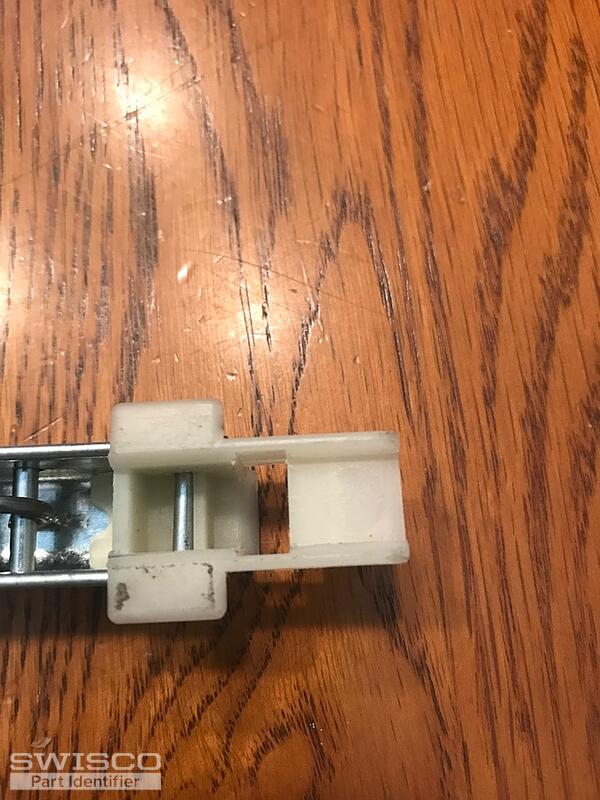

27" in in length not including end pieces. 5/8 in width across channel.
Only markings near end piece where hook is are
26-5 AQ5 CMC 17
On the bottom of the end piece near hook it's stamped 180.
Sash is 33 3/4 in x 29 in and weighs 18.9 lbs
Need 4 for two separate windows the same size
Anderson window sash balance channel
Quick Learner from Vancouver, WA
Aug 25, 2023 6:41 pm
4 user uploaded images
7 Replies
Casey from SWISCO
Aug 28, 2023 2:18 pm
Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. We just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else. Thank you!
Quick Learner from Vancouver, WA
Sep 5, 2023 7:16 pm
Ok, checked the second sash to make sure and it is slightly heavier
Both sashes are 33 3/4 x29 in
27" in length not counting end pieces and 5/8 in across the channel. The bottom piece of both is stamped 180
Sash A is 18.9 lbs
Markings. 26-5 AQ5 CMC 17.
Sash B is 23.6 lbs
Markings. 26-4 KP5 CMC 57.
Thanks
Both sashes are 33 3/4 x29 in
27" in length not counting end pieces and 5/8 in across the channel. The bottom piece of both is stamped 180
Sash A is 18.9 lbs
Markings. 26-5 AQ5 CMC 17.
Sash B is 23.6 lbs
Markings. 26-4 KP5 CMC 57.
Thanks
Casey from SWISCO
Sep 6, 2023 10:32 am
We'd be happy to send you updated order links for (2) 26-4 and (2) 26-5 stamped balances but it seems like you may have switched the windows that they came from since the 26-4 stampe is calibrated to support a sash between 17-21.99. The 26-5 balances would support a sash between 22-25.99. Just let us know if you would like to go ahead with two of each stamp code and we'll be able to send over your new order links.
Quick Learner from Vancouver, WA
Sep 8, 2023 6:30 pm
Thanks will try switching sashes..That makes sense!!
Quick Learner from Vancouver, WA
Sep 8, 2023 6:45 pm
After switching sashes problem solved. Previous owners must have cleaned, thinking they were interchangeable. Thank you!!
Casey from SWISCO
Sep 11, 2023 8:32 am
That's great news! Just to clarify, you will no longer be needing replacement balances since swapping the sashes corrected the problem?
