Anlin WIndow parts needed

A professional from Woodland Hills CA says:
February 23, 2023
Hi,

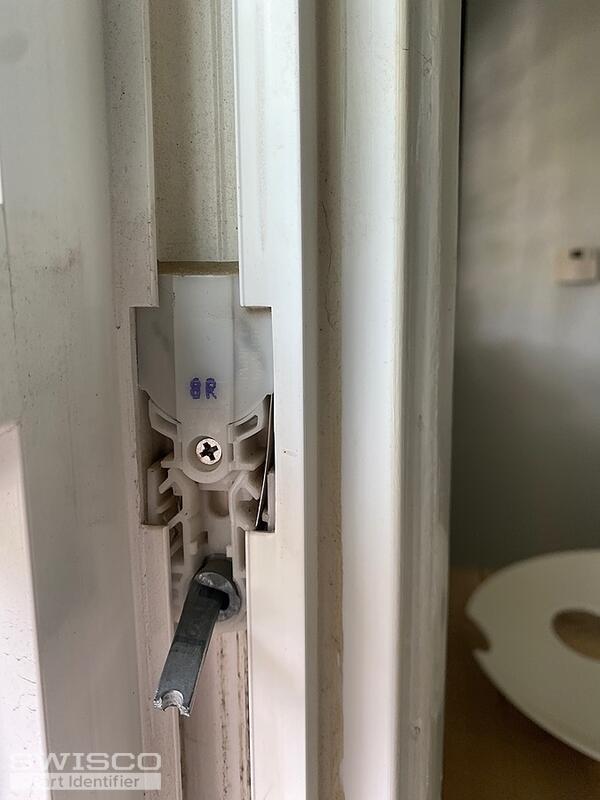

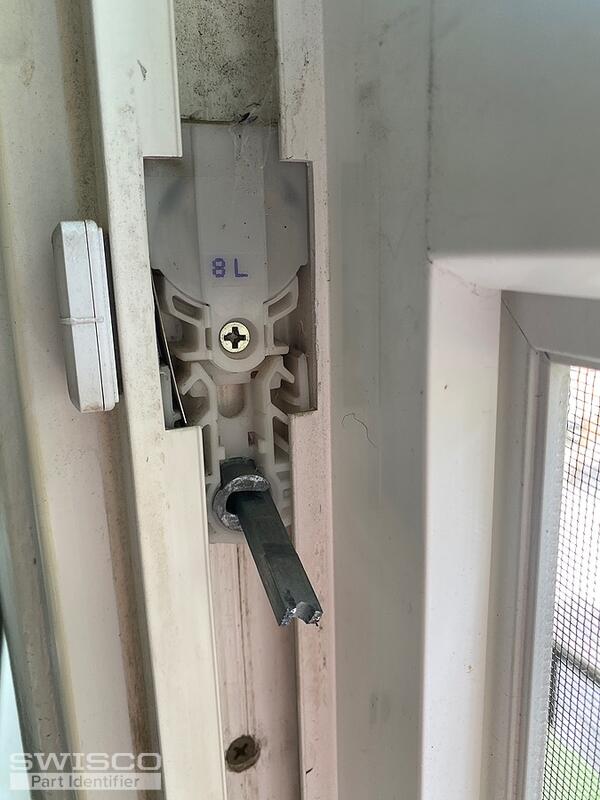

the only numbers I could find were these. H-R30-1218X2436

DESCRIPTION IS: CATALINA / DELMAR EXTREME/ SH

THANKS
STEPHEN
Thumbnail of the uploaded file named IMG_4433.JPG
Thumbnail of the uploaded file named IMG_4432.JPG
Profile picture of Lauren
Lauren from SWISCO responded:
February 24, 2023

Hi Stephen, thank you for posting,

Your balance assembly resembles the S140-8 Quick-Tilt balance. Please review the style and dimensions to confirm a good fit!

For the pivot bar, are you able to show us additional pictures of the bar removed from the pivot shoe were we can see the tip shape? Thank you!

Alternate image for S140-8
Alternate image for S140-8
A professional from Woodland Hills CA says:
February 24, 2023
Hi Lauren,
Thank you for the quick response!
The part you posted a picture of is correct. dims match perfectly. Here are a few more pictures including the pivot bar.

Thank you!
Stephen
Profile picture of Lauren
Lauren from SWISCO responded:
February 24, 2023

Thank you!

Review the dimensions of the 26-405 or 26-398 pivots bars to confirm a good fit! Let us know if you have any additional questions!
A professional from Woodland Hills CA says:
February 24, 2023
Hi Lauren,
Thank you!
Re-measured for the 2 7/8"..... parts ordered!

Best Regards
Stephen
8 lb Series 140 Quick-Tilt, Single
8 lb Series 140 Quick-Tilt, Single
S140-08
$8.28
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
