Anlin Window part

Quick Learner from San Clemente, CA

Jun 6, 2023 5:08 pm

Hi,

I need a new right and left replacement part for an anlin window.

Can you please direct me to the right part number?

Thanks!
Chris

1 user uploaded image

6 Replies

Casey from SWISCO

Jun 8, 2023 10:46 am

Hello,

We'd be happy to help but we would need to see the pivot shoe that your coils springs anchor to removed from the window. From there, we should be able to determine the coil balance hardware needed for your repair. In the meantime, see the videos related on this page to help you through the process. Thank you!

Quick Learner from San Clemente, CA

Jun 16, 2023 6:53 pm

Hi,

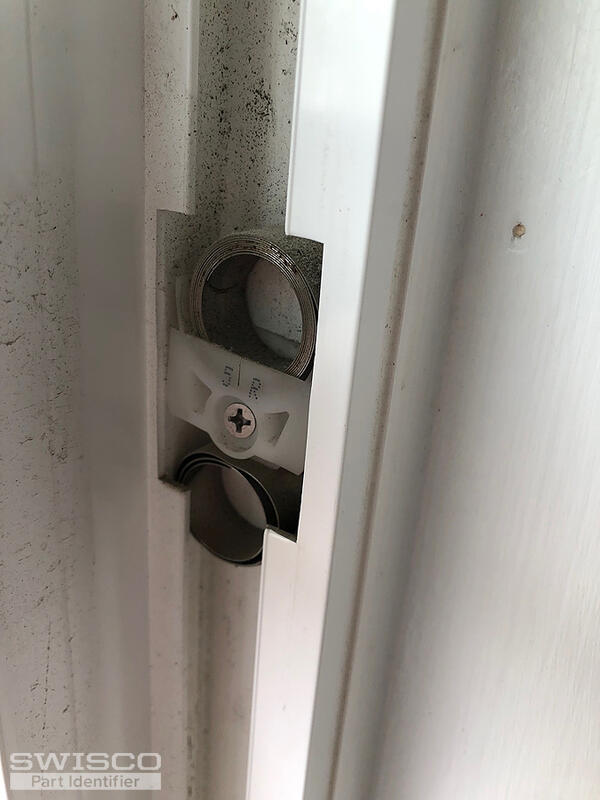

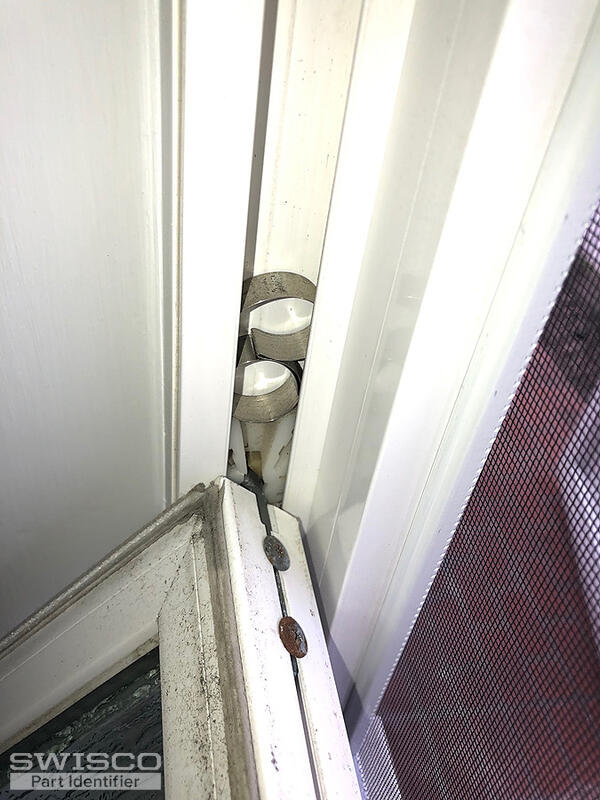

Thank you for your response. I've attached some additional pictures. Hopefully these help?

Best,
Chris

4 user uploaded images

Casey from SWISCO

Jun 20, 2023 7:57 am

Thanks for getting back to us. Unfortunately, we can't be sure with the hardware still installed in the window but you could start by comparing the specifications of the S140-5 coil balance assembly to yours. Keep in mind that the hardware would need to be fully removed to confirm if it is a match to our replacement.

Alternate image for S140-5

Quick Learner from San Clemente, CA

Jun 25, 2023 8:24 pm

Hi,

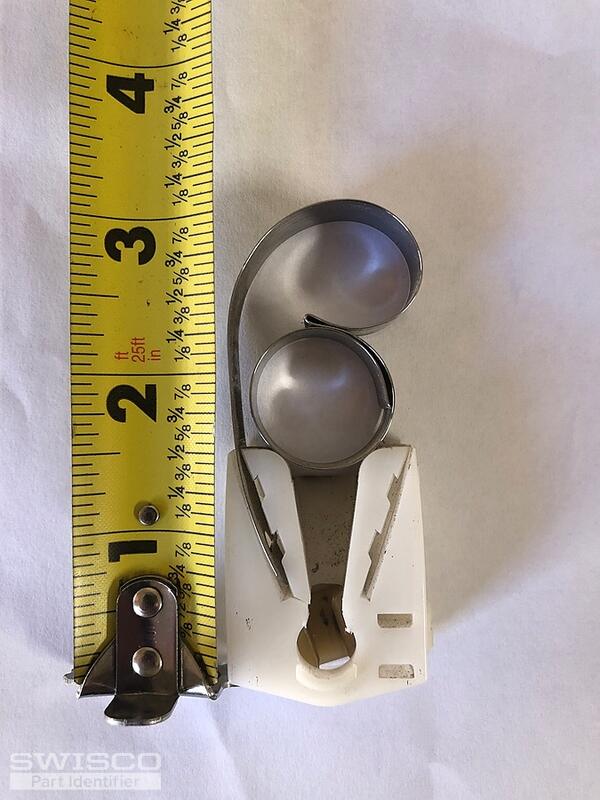

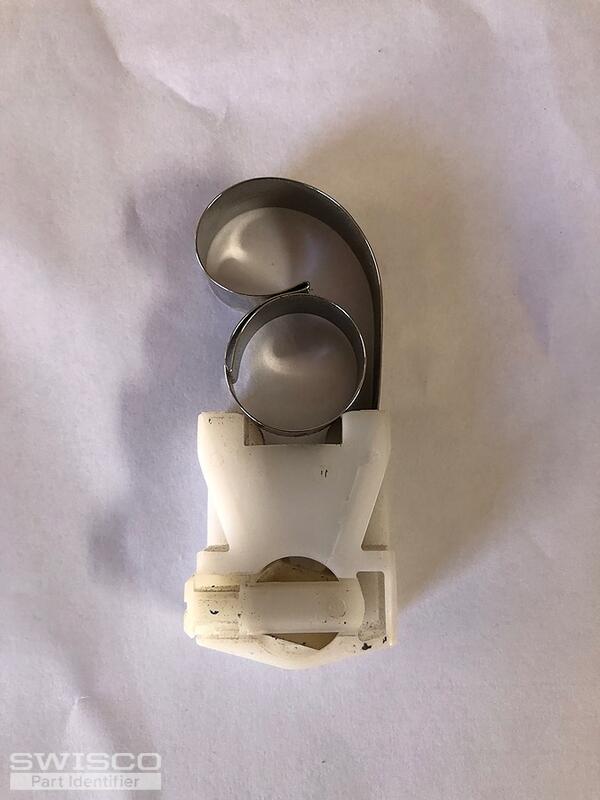

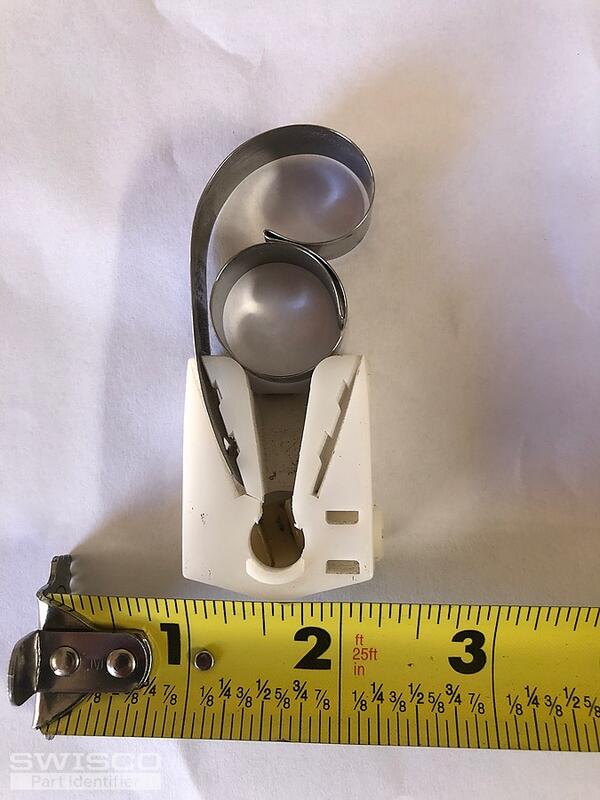

Sorry for the back and forth with you. I was finally able to get the coil out and I attached more photos. The dimensions seem to match the S140-5, but wanted to see if you think otherwise now that I have better pics.

Thanks, again!

Chris

3 user uploaded images

Casey from SWISCO

Jun 26, 2023 8:22 am

We're happy to help. I agree that as long as your dimensions match ours, our best match would be the S140-5.
