Any help would be appreciated

Question

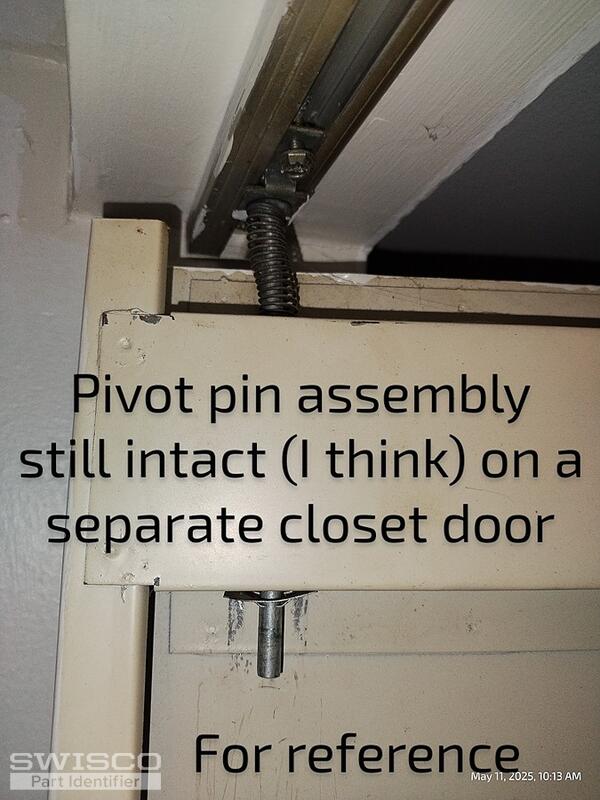

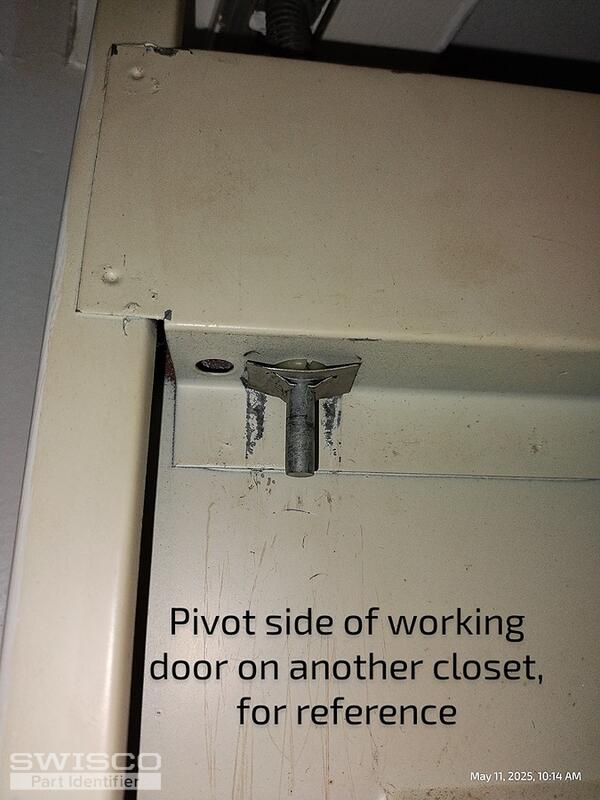

I have no experience with this kind of door but I am handy and have been doing some research. I'm pretty sure I can figure it out with the correct parts.  I have many more pictures if you need clarity , including pictures of a working door with parts intact. These doors have been a nightmare but my landlord will not replace them so here I am.

Paul · Accepted Answer

Hi there!

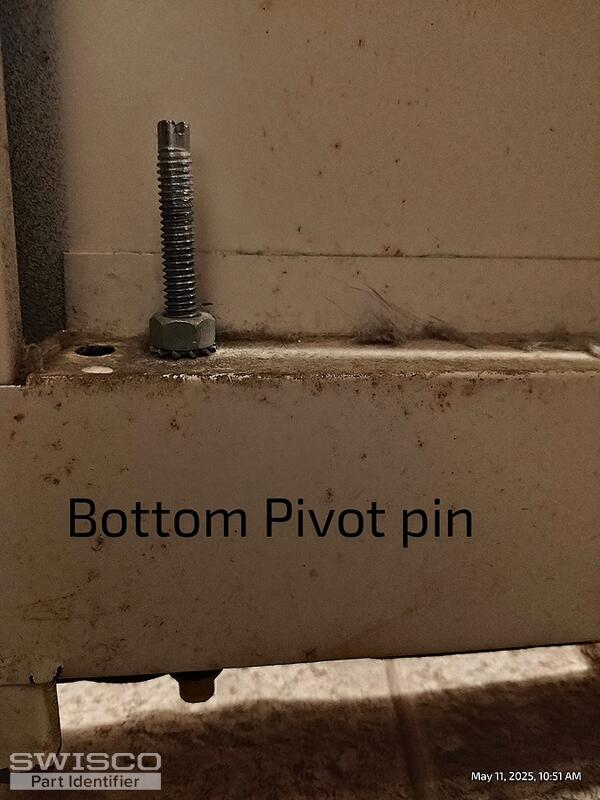

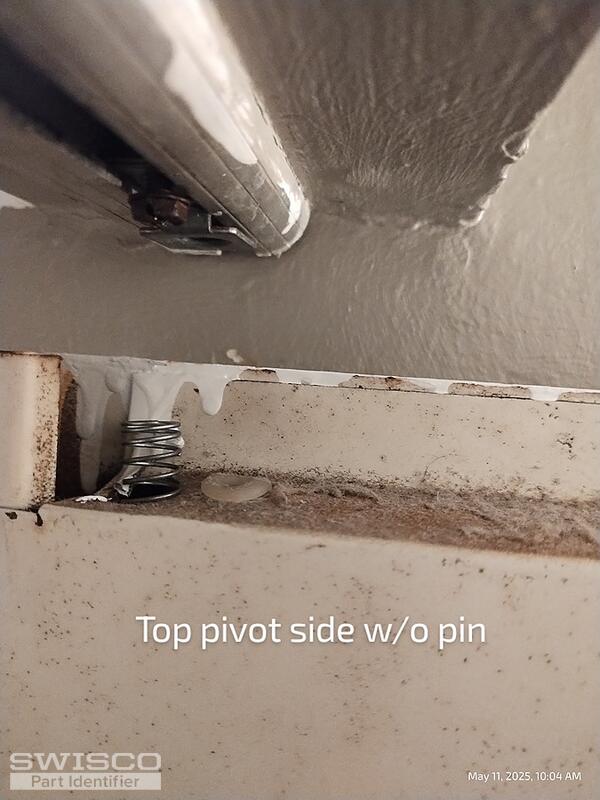

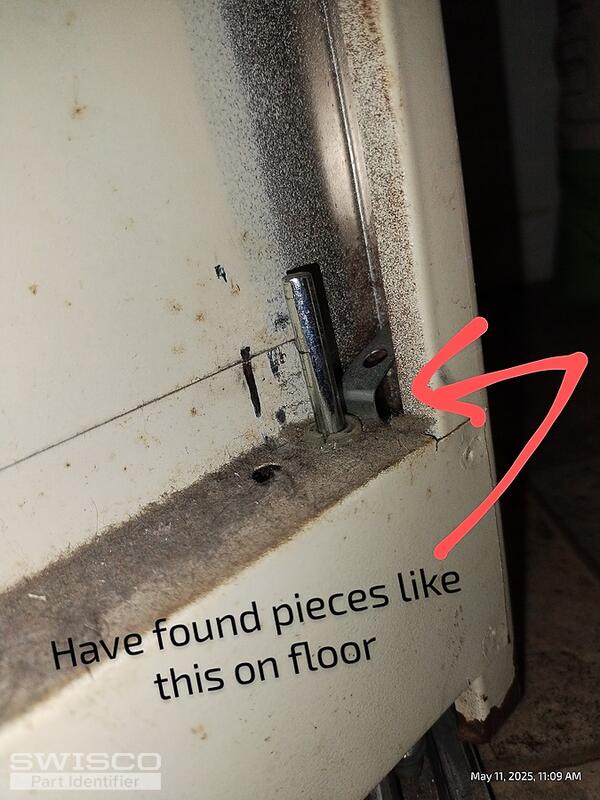

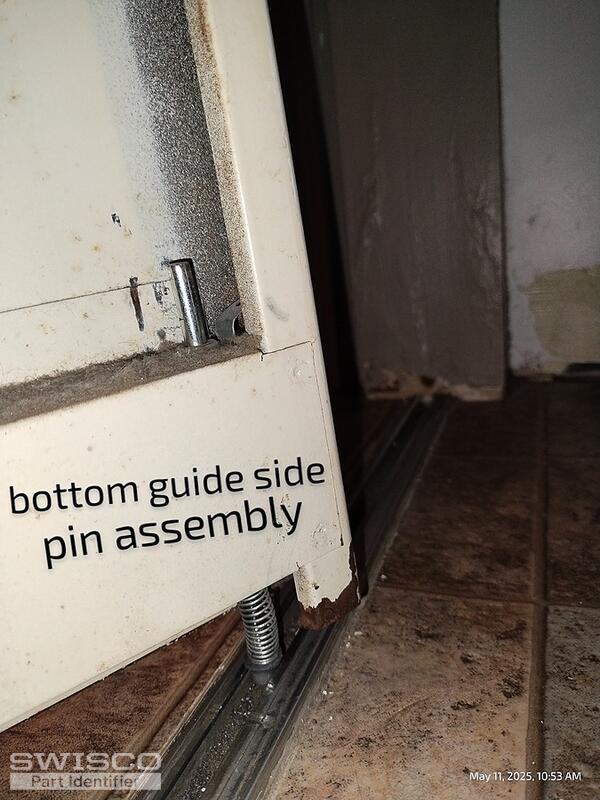

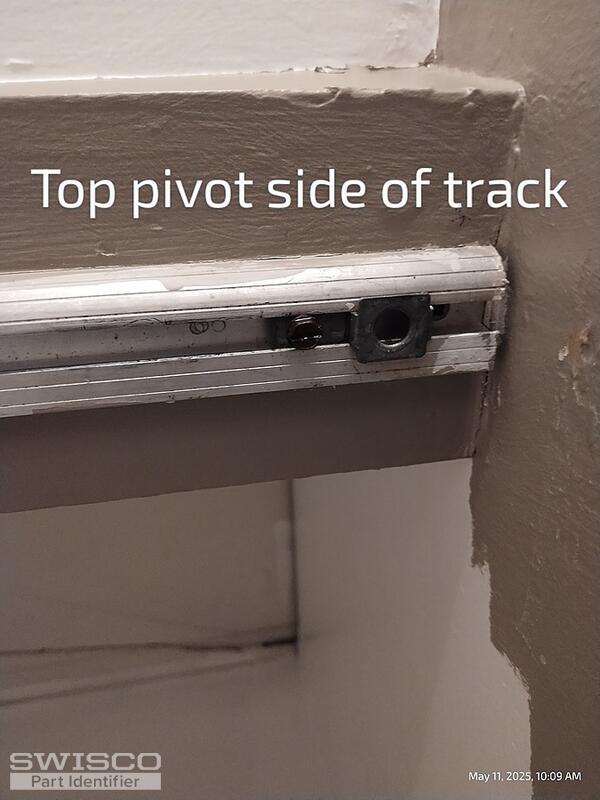

We appreciate your patience during this busy season. You have the old Benchmark bi-fold doors. You will need, for one panel, one 21-002 bottom threaded pin that will adjust the door to slide and square up. You will also need three 21-044 spring-loaded pins, one for the top pivot and two for the top and bottom guide pins. The pivot brackets will be the 21-209 and the door bumpers, the 21-276. You will also need some of the 21-163 nylon grommets for the door pins to slide smoothly through the holes.
