Arcadia sliding door mortuse

A handy person from California says:
May 5, 2021
I would love some help finding this part. I do work for a school district so it would be gladly appreciated if you can get back to me as soon as possible. Thank you for your time it is much appreciated.

A rep showed me the 82-223, but I do notice a couple of differences, I think the one we have is a 45 degree turn and the 45 degree part seems a lot lower to the bottom of the mortise not sure if these make a big difference. If I cannot find a match on the mortise can you recommend a different set up all together

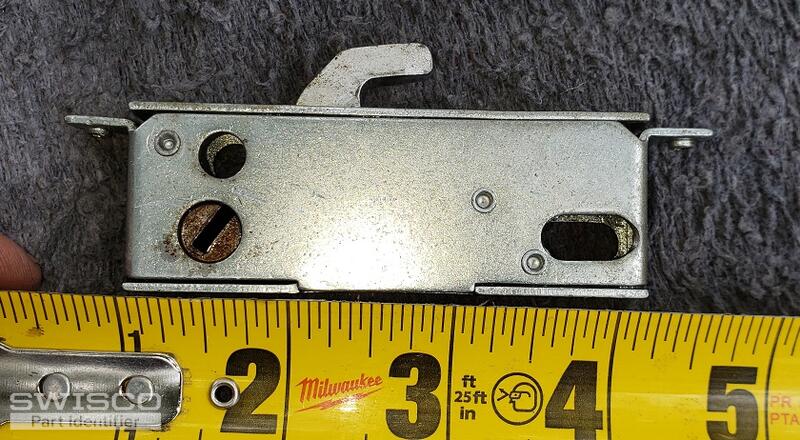

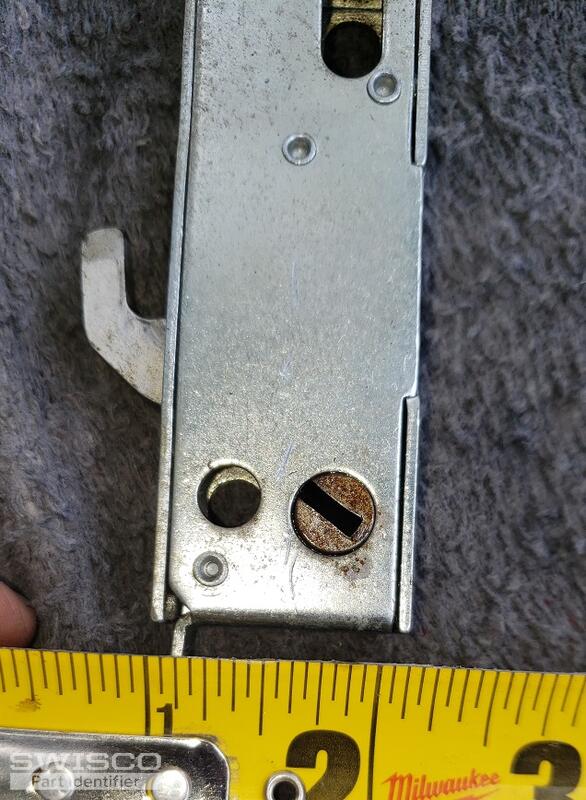

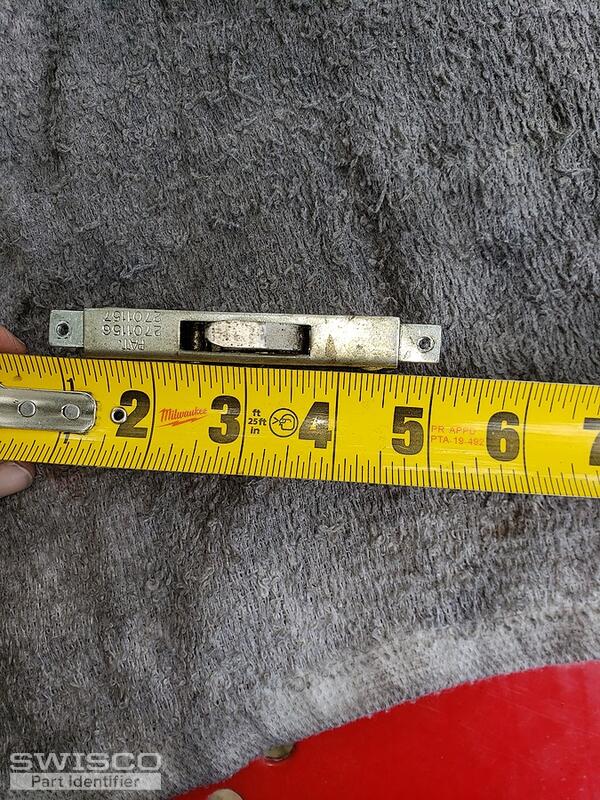

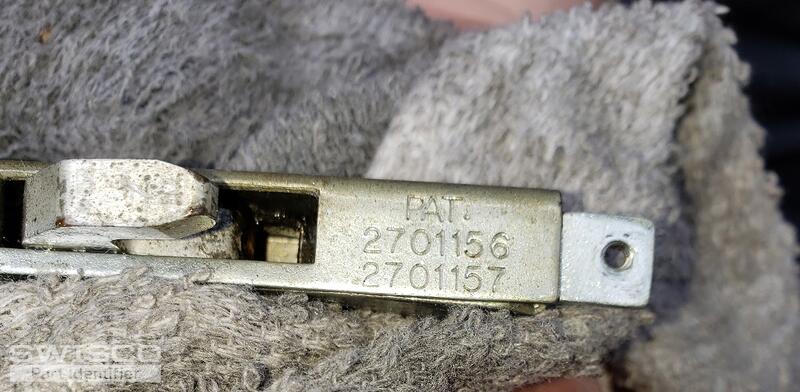

Thumbnail of the uploaded file named JGray 3.jpg
Thumbnail of the uploaded file named jgray 4.jpg
Thumbnail of the uploaded file named JGray 1.jpg
Thumbnail of the uploaded file named JGray 2.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 10, 2021

This looks like a real old mortise lock. I'm actually not sure if any of our mortises can work for you. Before I recommend anything, can you show me the door and the handle set that interacts with this part? I especially want to see the hole where this mortise installs. Maybe with that information we can find this, or at least confirm if one of ours can work as a substitute.
