Arm connection to bottom of window broken

Home Owner from Phoenix, Arizona

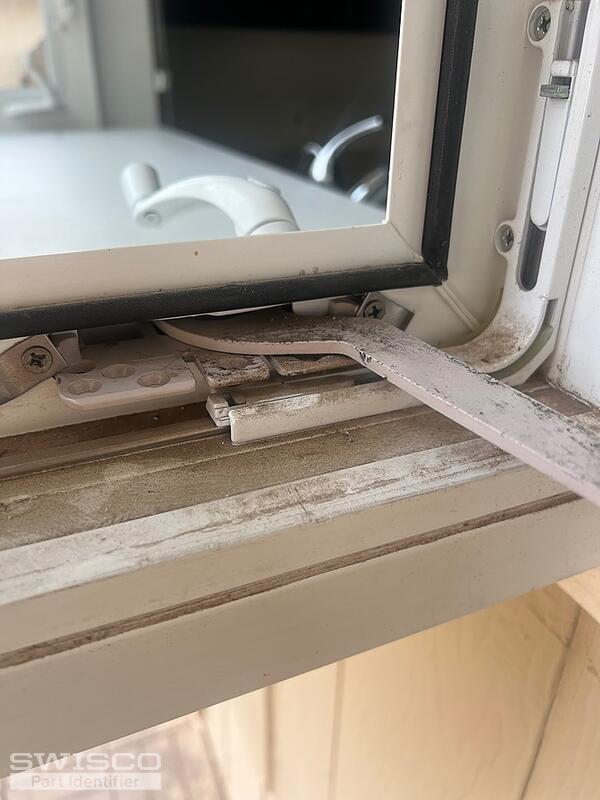

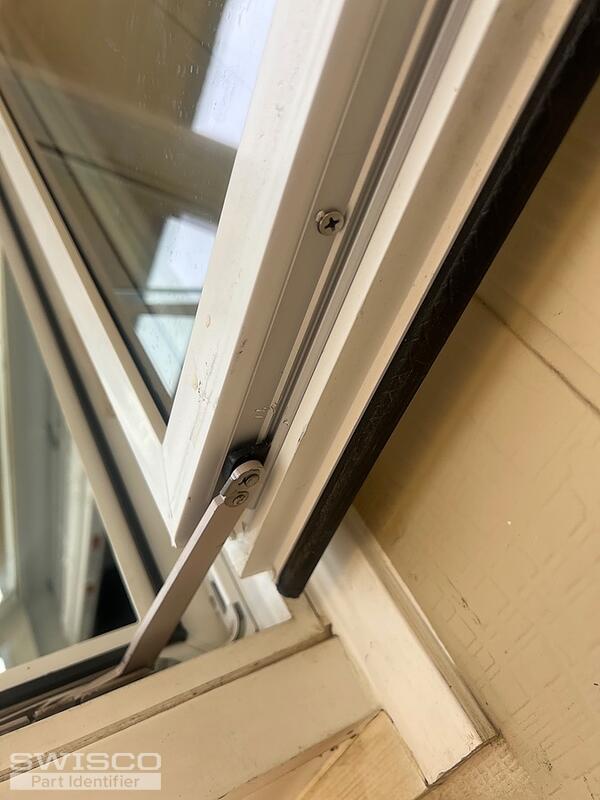

I cannot find any markings. The plastic part that slides underneath the window is broken. Everything else works fine. Do you have a replacement for either the end or the entire crank?
5 user uploaded images
2 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello! Thank you for contacting us. Your operator looks similar to the 39-435 which uses the 39-541 track slider (sold separately). We also sell the 39-542 casement track with the track slider. The compatible handle is the 39-232. Review the specifications for the mentioned parts and see if they match up with what you need for your repair.

Dimensions for 39-435
Dimensions for 39-435

Alternate image for 39-541
Alternate image for 39-541

Alternate image for 39-542
Alternate image for 39-542

Close up of 39-542 with dimensions
Close up of 39-542 with dimensions

Dimensions and alternate view of 39-232
Dimensions and alternate view of 39-232

Dimensions and profile view of 39-232
Dimensions and profile view of 39-232
