Arm replacement left window

A quick learner from Massachusetts, USA says:
September 5, 2022
Hi:
I just want to be sure I am ordering the right parts. I am looking to replace the arm and guide. I believe these are what I need based on the pictures above -
Arm
https://www.swisco.com/EntryGard-Operator-9-1_2-inch-Arm-Left-Handed/pd/Casement-Window-Replacement-Operators/39-031

guide
https://www.swisco.com/11-3_8-inch-Entrygard-Track/pd/Replacement-Window-Operator-Tracks/39-505

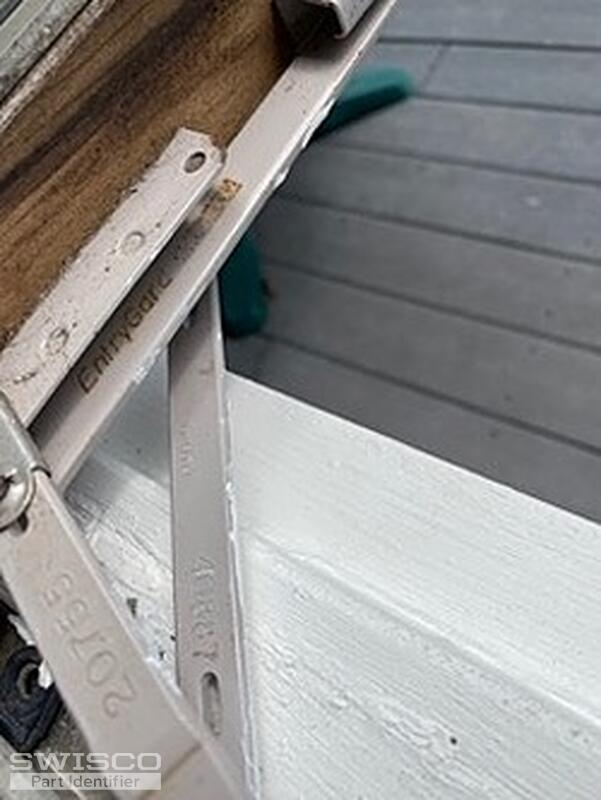

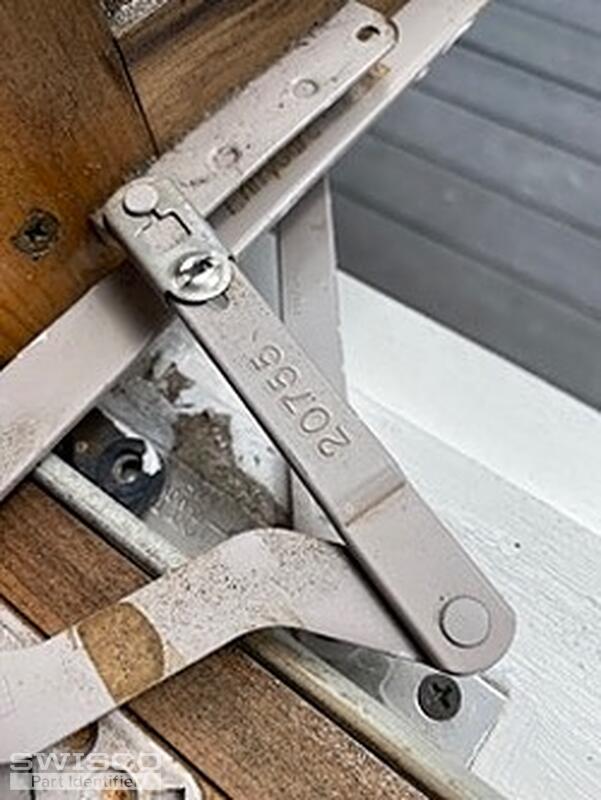

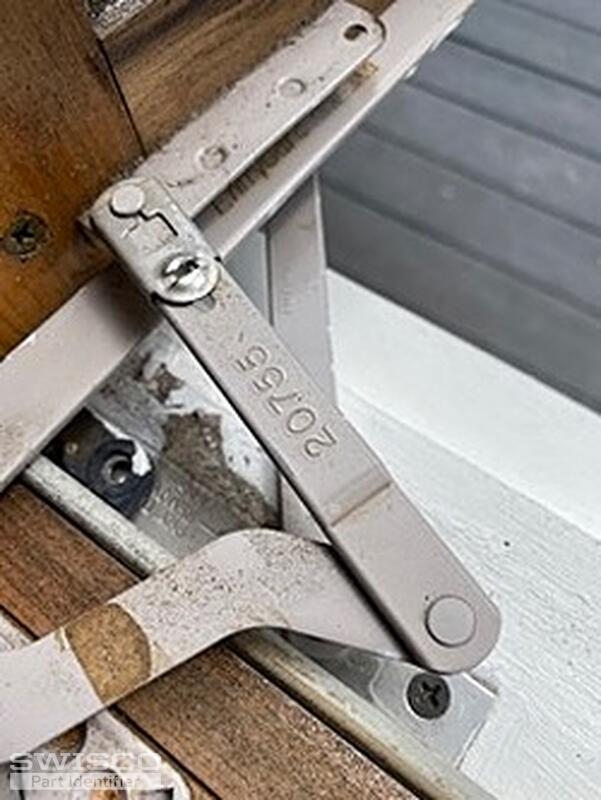

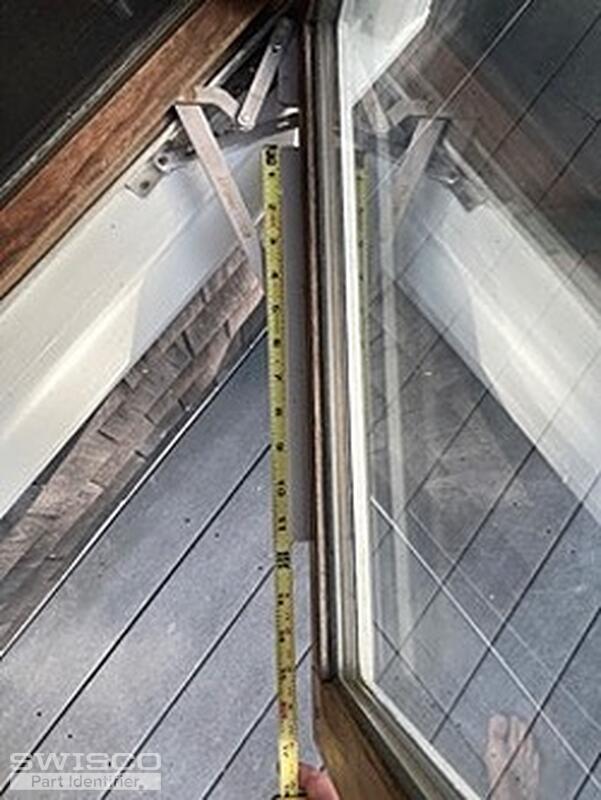

Thumbnail of the uploaded file named 68407555996__7B10F5C9-D769-491C-9A25-18BF422E7F4A
Thumbnail of the uploaded file named IMG_1558 Small.jpeg
Thumbnail of the uploaded file named IMG_1559 Small.jpeg
Thumbnail of the uploaded file named IMG_1560 Small.jpeg
Thumbnail of the uploaded file named IMG_1561 Small.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 7, 2022

Hello,

The operator in your photos resembles the 39-032 EntryGard operator with the gears on the right side of the base. You'll also need to confirm that the dimensions shown below match up to your assembly, paying close attention to the length of the shorter link arm.

You are also correct that the 39-031 and 39-032 are compatible with the 39-505 track. Thanks for posting!

Dimensions for 39-032
Dimensions for 39-032
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.70
11-3/8" EntryGard Track, 4 Hole
11-3/8" EntryGard Track, 4 Hole
39-505
$3.70
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.70
