Ashland Operator and Lock

Question

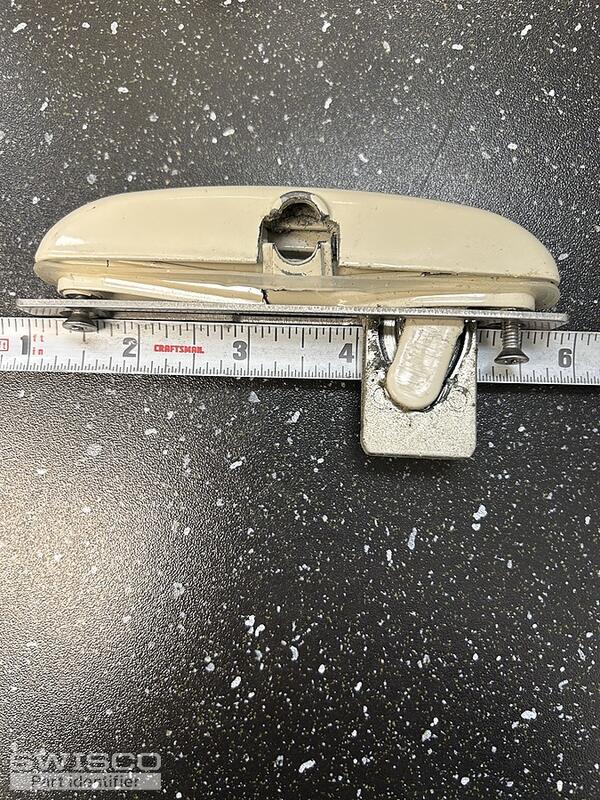

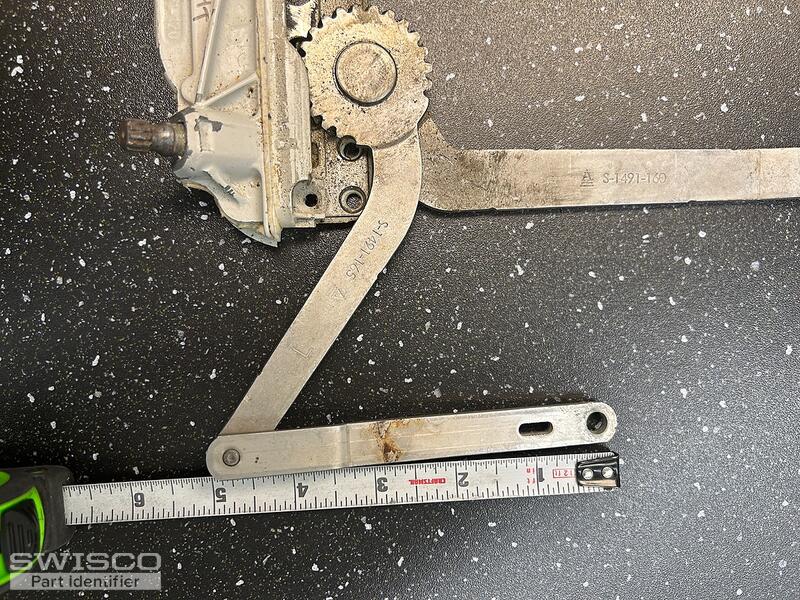

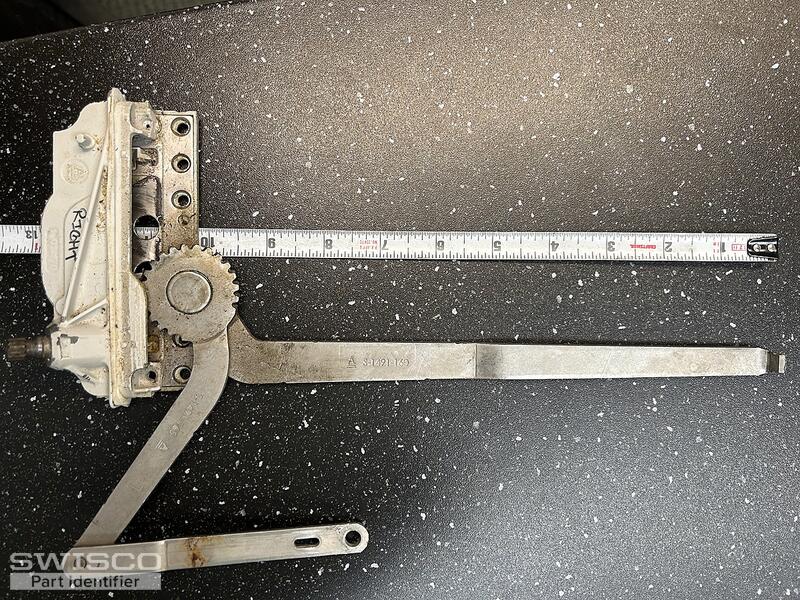

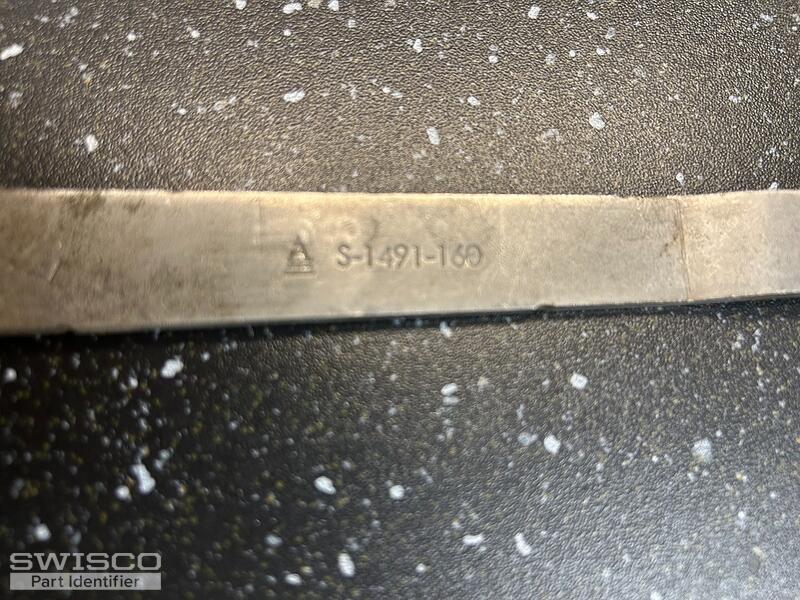

I need 2 Operators as shown and 3 opposite. The straight arms are 9-1/2" to the wheel and the end section of the short arm is 4-15/16". My operator shown is stamped with S-1491-160, and the opposite is stamped with S-1491-265. 1 also need 1 beige lock as pictured on the left. I saw a discussion on your site as below and I need the same operators or viable substitues, with a longer arm, including beige covers and handles.

Window Cranks
A landlord from 04005 says:
February 13, 2024
Hi I am looking for these window cranks. Labeled 1491-1201 on one and 1491-2208 on the other.

Casey · Accepted Answer

Hello,

It looks like you have an older-style Ashland operator, which I don't believe is still available. With that being said, take a look at the 39-253LB Encore operator. We also offer the 39-253RB opposite-handed version. Review the specifications below to see if you might be able to adapt it to work as a replacement. It operates similarly to the one you now have but you may also need a new 39-529 slider and maybe even a new 39-528 track if you can't reuse the originals. You'll also need the 39-451 handle and cover, which is sold separately.

Dimensions for 39-253LB
