Assistance with Identifying Part | Window Channel Balance

A handy person from Seattle says:
April 8, 2019
Hello,

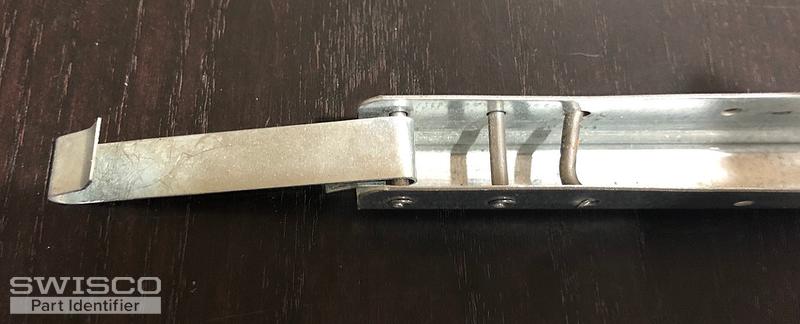

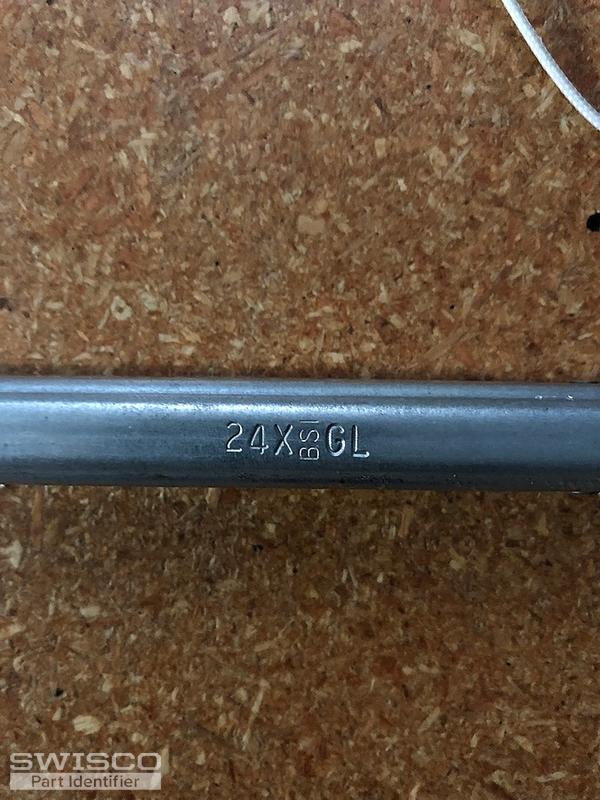

I hope you can provide assistance with identifying a replacement for a window channel balance. The balance is a 25" long metal channel, the width is 9/16", ribbed, for a tilted window which is around 25-30 lbs. The balance does not have a part number on the metal channel only the following identifier: 24X BSI GL (see attached picture).

Thanks,

Phil
Thumbnail of the uploaded file named IMG_1534.jpeg
Thumbnail of the uploaded file named IMG_1533.jpeg
Thumbnail of the uploaded file named IMG_1531.jpeg
Thumbnail of the uploaded file named IMG_1530.jpeg
Thumbnail of the uploaded file named IMG_1527.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 9, 2019

Thanks for contacting us. This looks like our S751-25. based on your sash weight, you may want our 24TG stamp, but you should probably get the exact weight just to be 100% sure.

You can reuse your old S clip, but in case that's not possible see our 19-030.
Long S-Clip
Long S-Clip
19-030
$0.70
25" Series 751 Channel Balance
25" Series 751 Channel Balance
S751-25
$11.25
