Atrium 26-3 LX CMC 11 Balance Replacement

Home Owner from Arizona
Oct 23, 2021 11:44 am

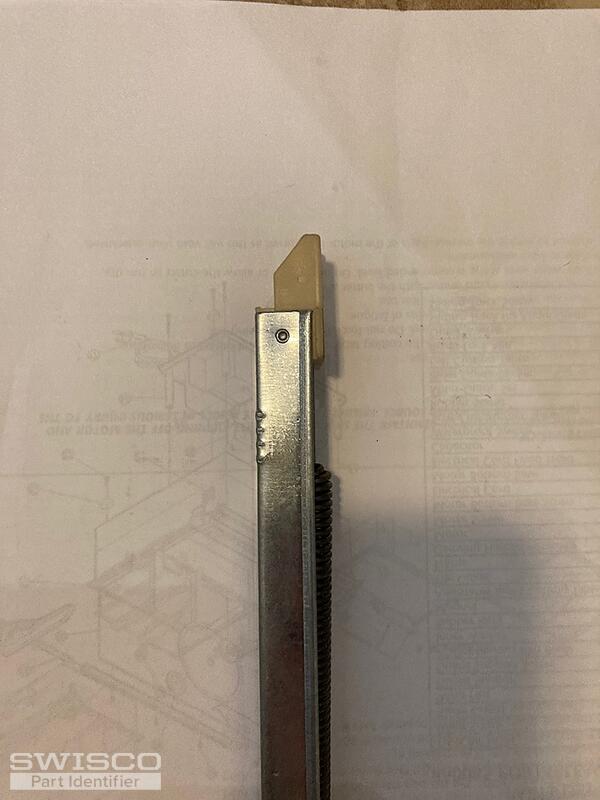

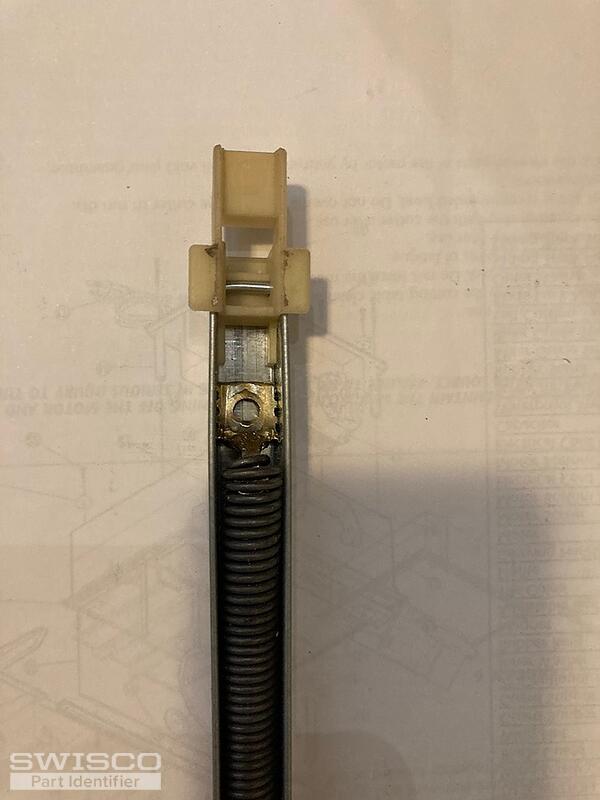

I need a replacement part number for an Atrium 26-3 LX CMC 11 balance with a channel length of 27". I also need the part number for the plastic stop that attaches to the top left inside channel of the window but there is a 5 photo limit so I will submit it on another post.
IMG_1111 IMG_1112 IMG_1113 IMG_1114 IMG_1115
5 user uploaded images
2 Replies
Home Owner from Arizona
Oct 23, 2021 11:52 am

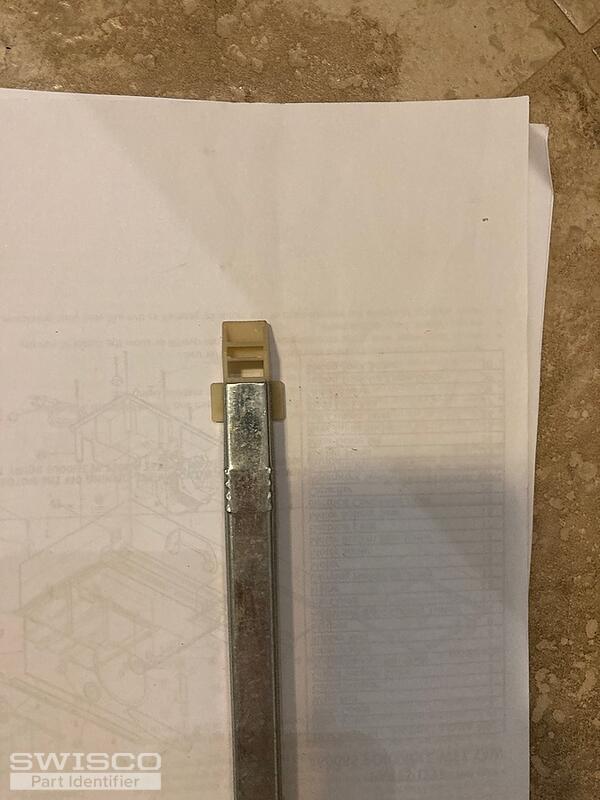

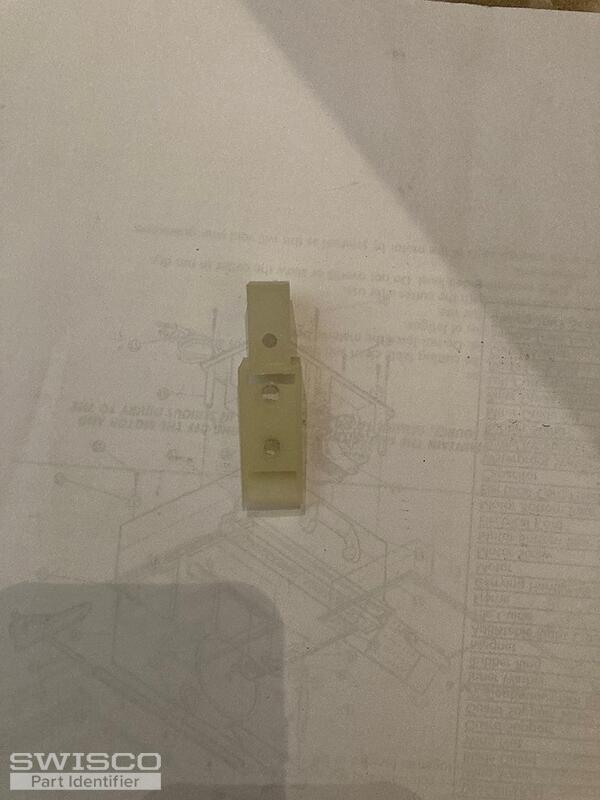

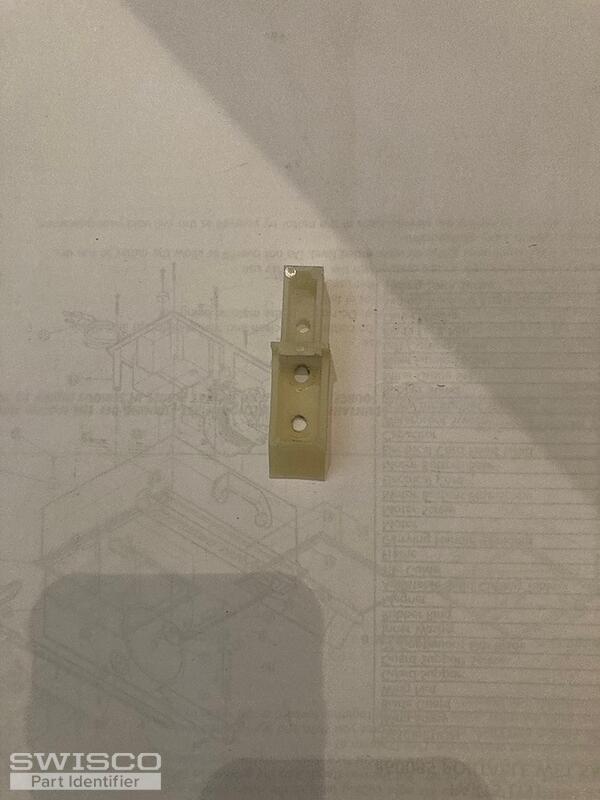

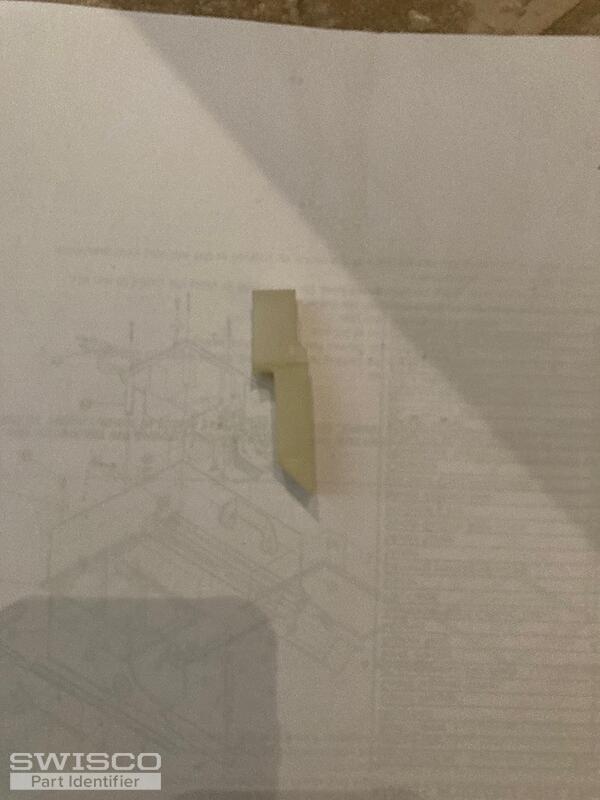

Here is additional photo of the balance along with the photos of the stop. The stop measures 2 3/16" long, 5/8" wide for the lower part, 13/32" wide for the upper part, 1 7/16" long for the lower part and 3/4" long for the upper part.
IMG_1116 IMG_1117 IMG_1118 IMG_1119
4 user uploaded images
Emily
Emily from SWISCO
Oct 27, 2021 1:07 pm
SWISCO
EXPERT

Hello!

With this combination of fittings, it looks like you have our S395-27 with a 2630 stamp option. For the sash guide, take a look at our 18-171 and see if our dimensions match yours.
