Channel Balance Help

A quick learner from Albuquerque says:
August 10, 2020

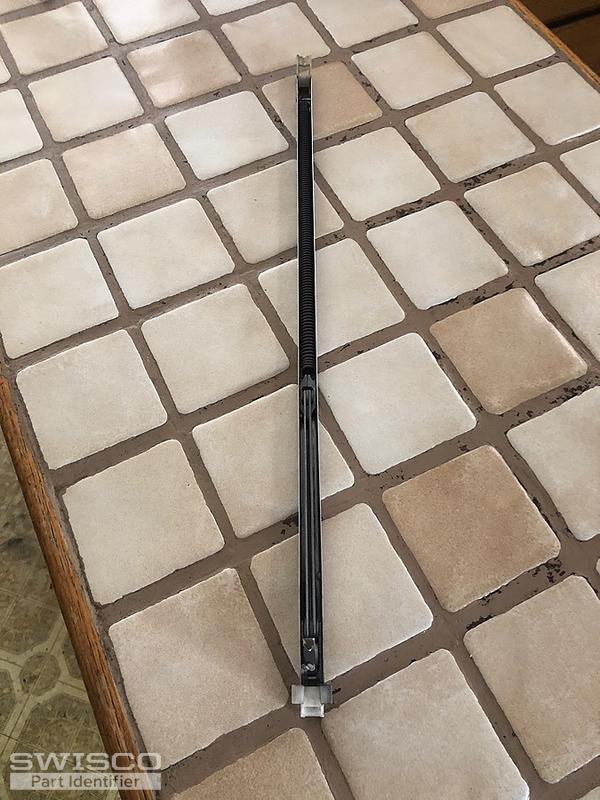

Stamp Number 2130 22in
Thumbnail of the uploaded file named E6FFD46C-39BA-41E9-90E5-009FCD4FE564.jpeg
Thumbnail of the uploaded file named 47023ED8-9BD4-4E7D-9415-D4BC29A41F79.jpeg
Thumbnail of the uploaded file named 1CF1DC3A-9F08-4CC7-A0FB-DBA6A0A791B8.jpeg
Thumbnail of the uploaded file named FD92D905-360E-480D-80E5-95E7BC82FE37.jpeg
A quick learner from Albuquerque new mexico says:
August 11, 2020

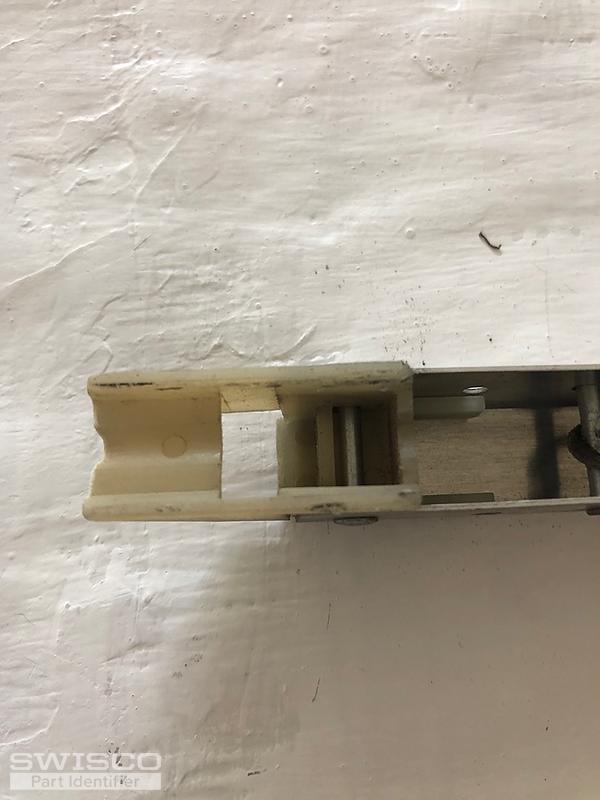

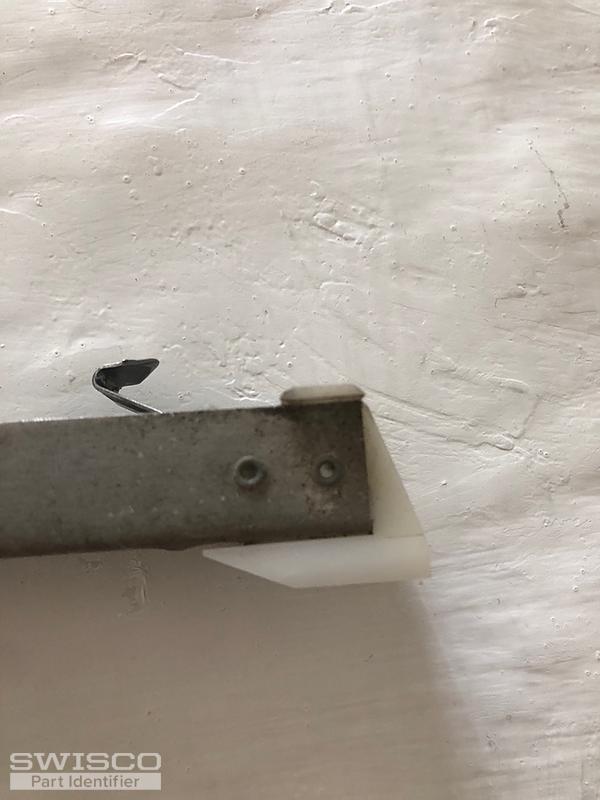

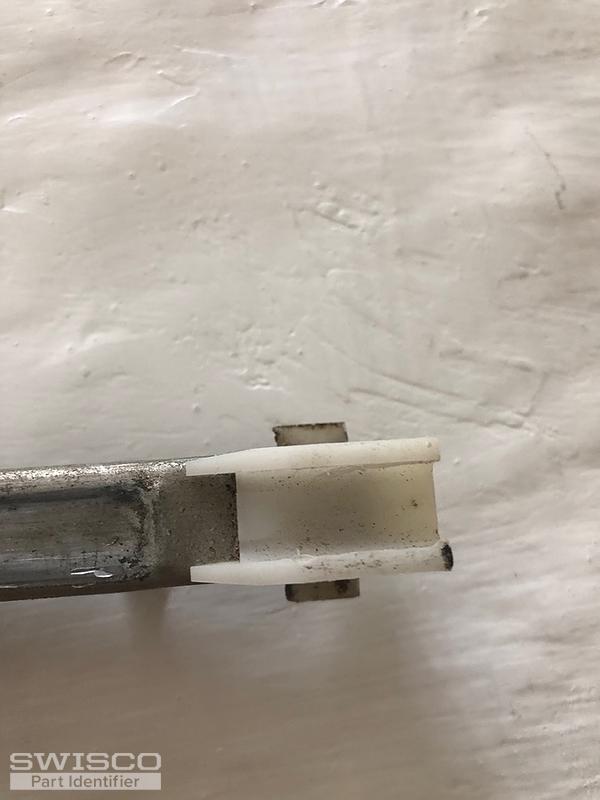

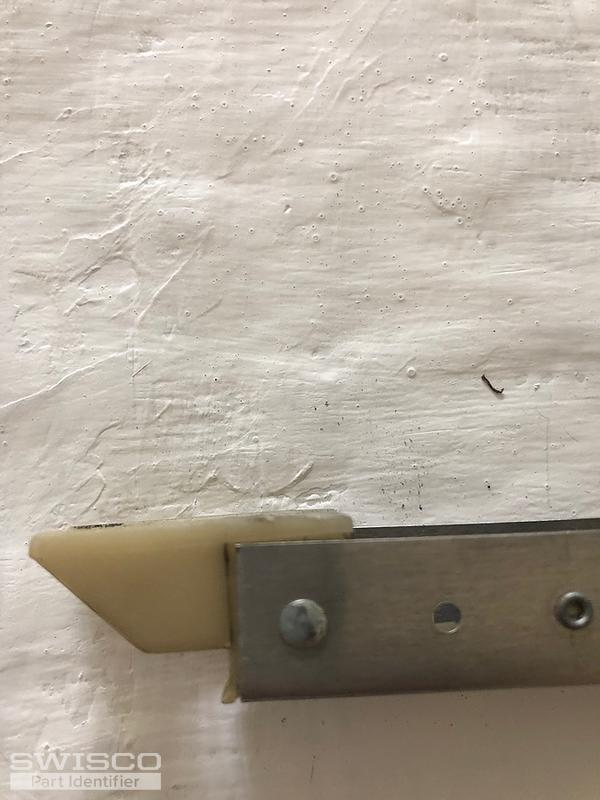

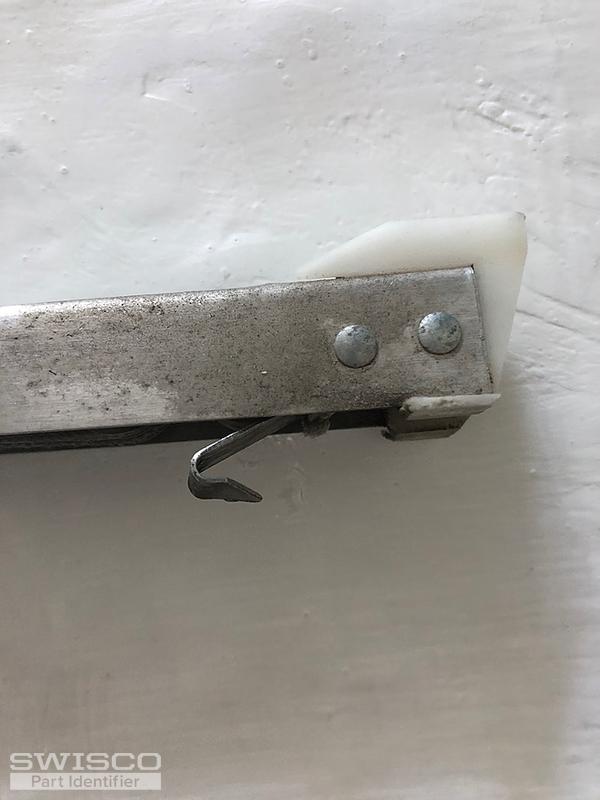

Here are the updated photos of the top and bottom attachments

Thank you,

Roseanne

Thumbnail of the uploaded file named EF27845A-A461-4214-B0A9-F5FB99AE7713.jpeg
Thumbnail of the uploaded file named DE01C267-E07A-4A4A-8470-8DC93BA9BBD7.jpeg
Thumbnail of the uploaded file named 8746F7A0-5B32-40B2-A396-DE0804C34838.jpeg
Thumbnail of the uploaded file named DD9703A7-D620-411D-B2B3-D95D8C9907B6.jpeg
Thumbnail of the uploaded file named 385E25EC-894F-49DE-841E-4E94CD1C6E86.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 13, 2020

Hi Roseanne. I see you have a 22" balance with a stamp option of 2130. This looks possibly like our Series 380, but the bottom nylon shoe on this balance (our 15-005) has a depth of 1". It's possible your shoe has a depth of 7/8" instead, in which case you'd need balances that use our 15-029 shoe instead. We don't have any standard balances that use this fitting, but we'd be happy to custom make them for you. Just confirm to me if that's the shoe size you need, as well as how many balances you need. Many thanks.
A quick learner from Albuquerque new mexico says:
August 13, 2020
It measures 1in
Profile picture of Bob
Bob from SWISCO responded:
August 14, 2020

Okay, then you'll be able to use our S380-22 channel balance with a 2130 spring strength option. Thanks for posting!
22" Series 380 Channel Balance
22" Series 380 Channel Balance
S380-22
$9.59
