Attach two coils to mounting brackets

Question

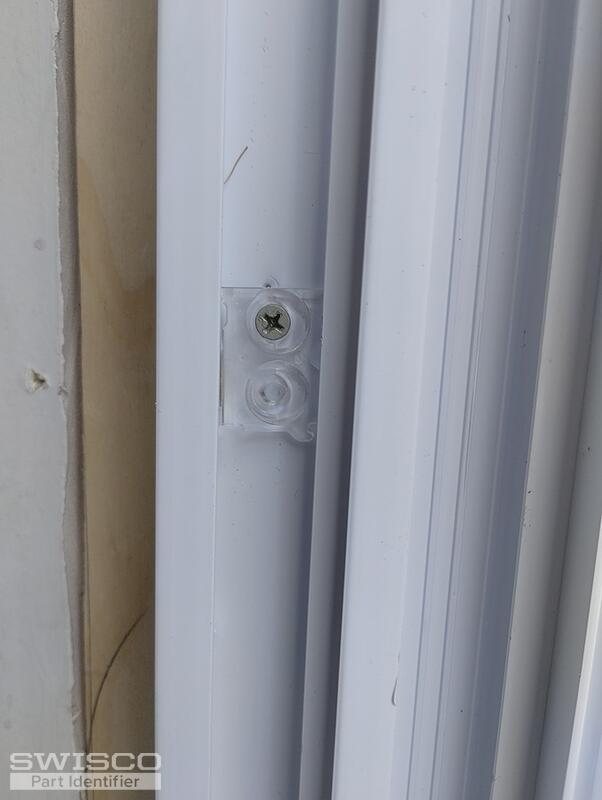

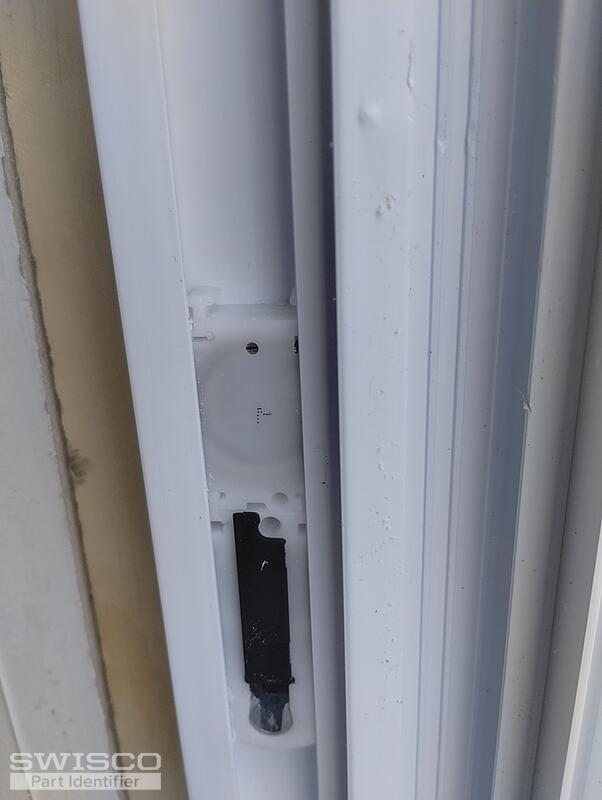

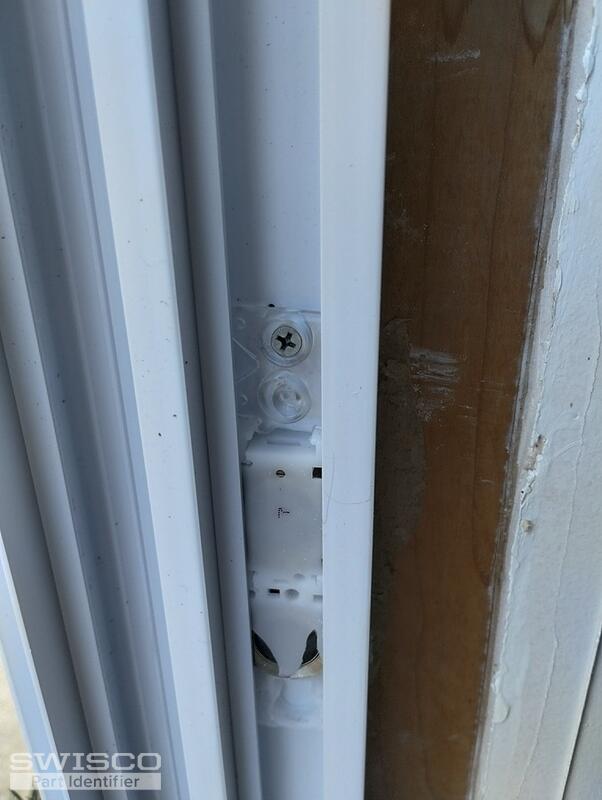

I believe I order the right stuff however Im confused to how the double coil mounts onto the mounting brackets since there are two coils. Does one coil go up on one side of the inner track or do they both go up on one side of the inner track and mount to the mounting bracket.

Jasmine · Accepted Answer

Thanks for reaching out! You'll need to attach the top coil to the mounting bracket first; which would be installed in the 15-086 tandem housing. Then you'll need to extend the coil inside the S161-07 coil balance assembly and attach it to the mounting bracket.

They'll attach on the same side of the bracket. It may take a bit of force to pull the coils to extend, especially the bottom coil.

This means you will need to assemble the balances prior to installing the assemblies into the channel.

Take a look at the video below for an idea on how to install these parts.
