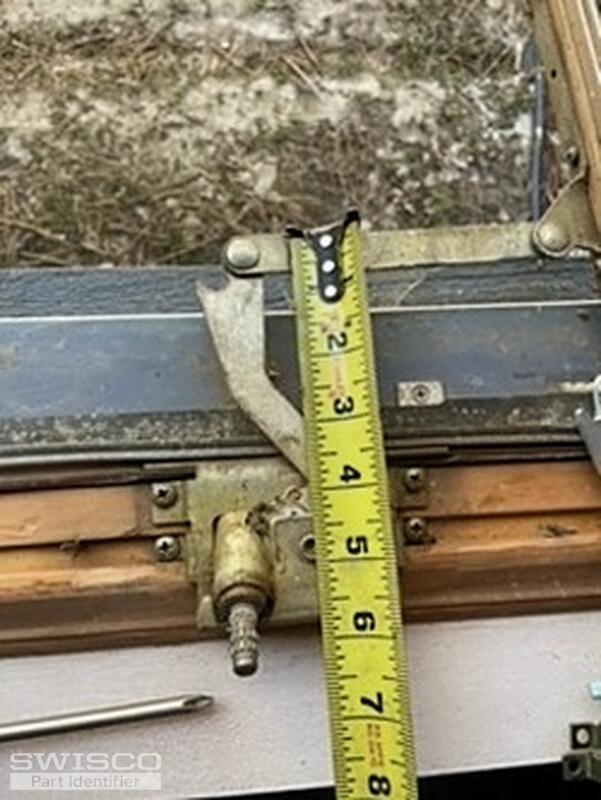

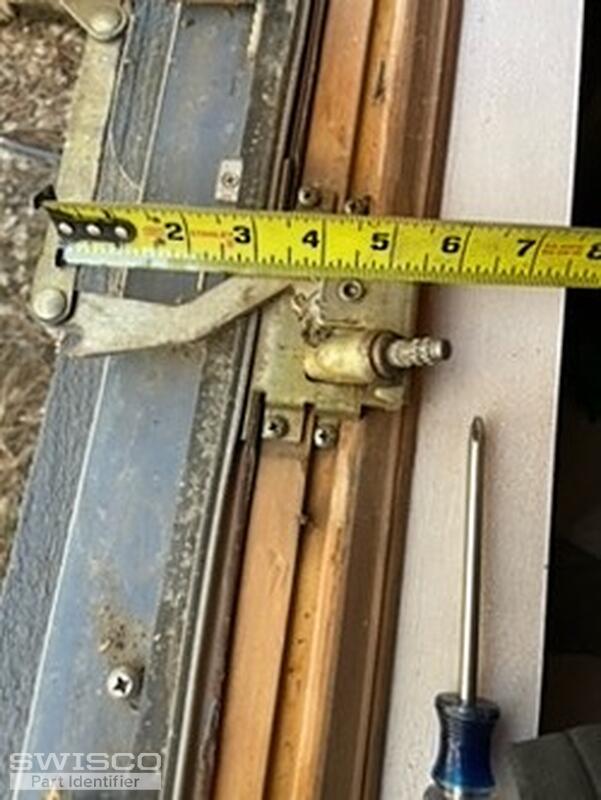

Attached is the correct size in pictures.

A quick learner from USA says:
April 24, 2023
Hi,
My order # (above) is in the process of returning. I ordered 39-175, 39-176 and upon opening the package I discovered the arm attached to the gear was too long.
Thumbnail of the uploaded file named image0 (19).jpeg
Thumbnail of the uploaded file named image3 (2).jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
April 25, 2023

Hey there! I am sorry to hear that your purchase didn't work out for you.

I believe you may need our 39-096 and 39-097. Look over the dimensions and carefully compare the measurements to your existing casement operators to confirm that these might be a better fit.

Here are the dimensions from part 39-096.

Dimensions for 39-096
Dimensions for 39-096
Pella Window Crank
Pella Window Crank
39-096
$120.45
Pella Window Crank
Pella Window Crank
39-097
$120.45
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-175
$241.70
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-176
$241.70
