Home Owner from Greensboro nc

Oct 10, 2022 2:21 pm

Not sure other messages went through. These are from simenton windows

1 user uploaded image

4 Replies

Tom from SWISCO

Oct 14, 2022 1:27 pm

Thanks for reaching out to us. This is the only post we have received from you, so I don't believe we got your other messages.

It looks like you need multiple different coil balance assemblies, but they're a little too mixed together in your photos for me to properly identify them. Would it be possible for you to separate the disparate assemblies and show me a clear picture of each one, separate? I can then make a recommendation from our catalog.

Home Owner from Greensboro nc

Oct 16, 2022 11:18 am

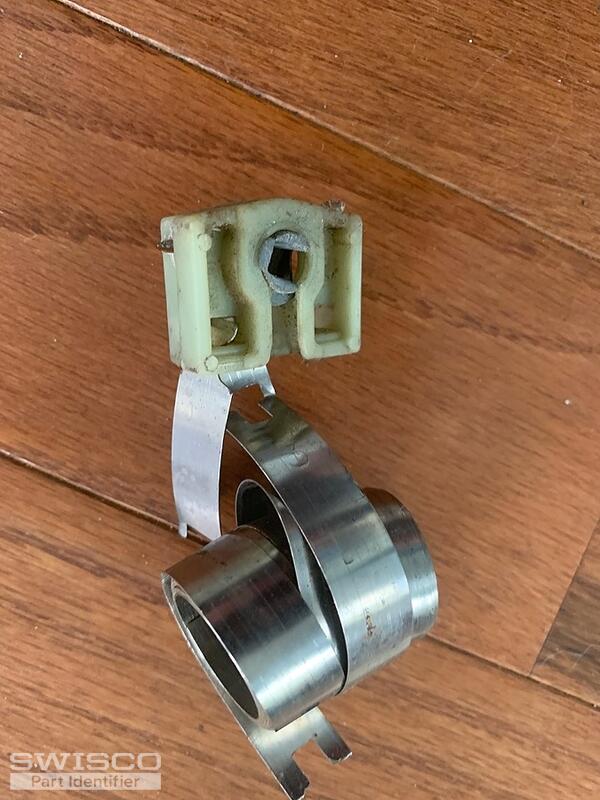

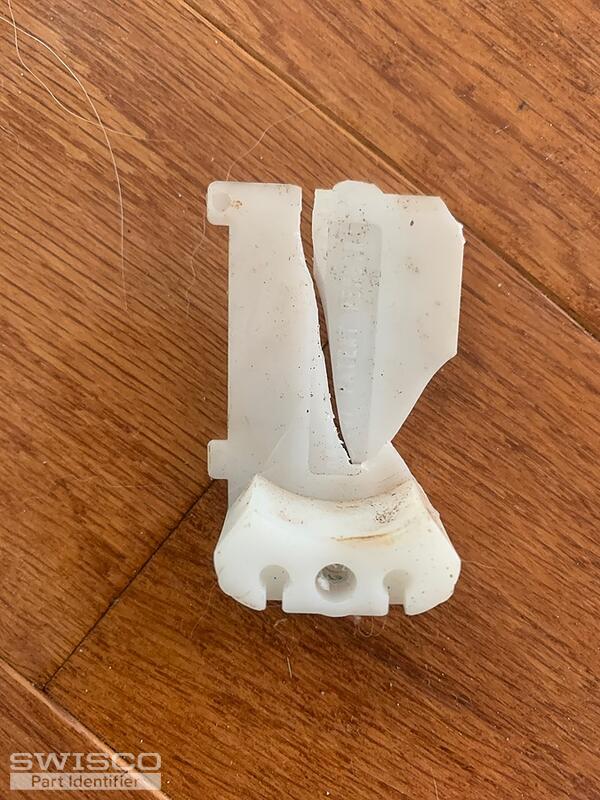

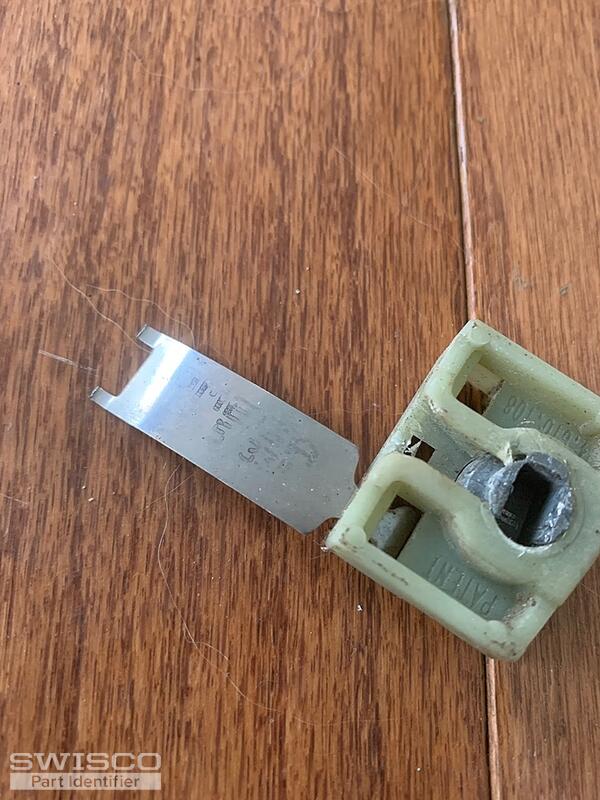

First photo is downstairs window parts and new ones. I did notice the window is not sited correctly. It was too heavy for me alone. Next pic is of additional parts the distributor sent me. The top part is taller. I have pics of the window labels and more

5 user uploaded images

Tom from SWISCO

Oct 17, 2022 8:47 am

Thanks! I'm afraid the sticker won't help in this case. The only way to ID these is by seeing the original parts themselves.

Based on this batch of photos, your pivot shoe appears to match our 15-111. This is designed to work with our 1/2" thick Series 160 and 15-150S single spring support. Review these parts and see what you think.

Alternate image for 15-111

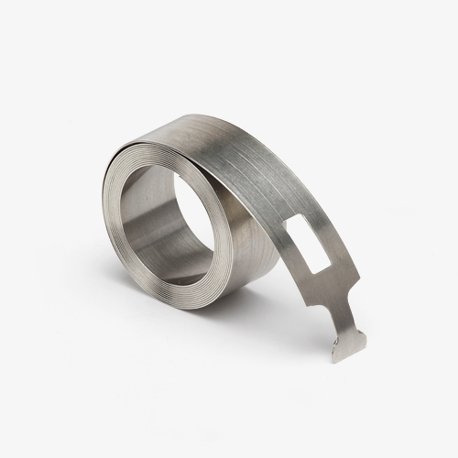

Detail of 15-150S

Profile view of 15-150S
