Awning Operator

A home owner from New Jersey says:
Trying to figure out what replacement part I should get for this awning operator? And how to install...in your video it looks like there should be a screw to remove but it does not look like a screw?
Thumbnail of the uploaded file named 2F796226-9622-466D-9D63-EF48D01E0531.jpeg
Thumbnail of the uploaded file named D1B6A024-D7A5-4562-87A0-2EA23D5710D1.jpeg
Thumbnail of the uploaded file named 4659BA65-F5E5-4B3F-82A5-B6F6D7972197.jpeg

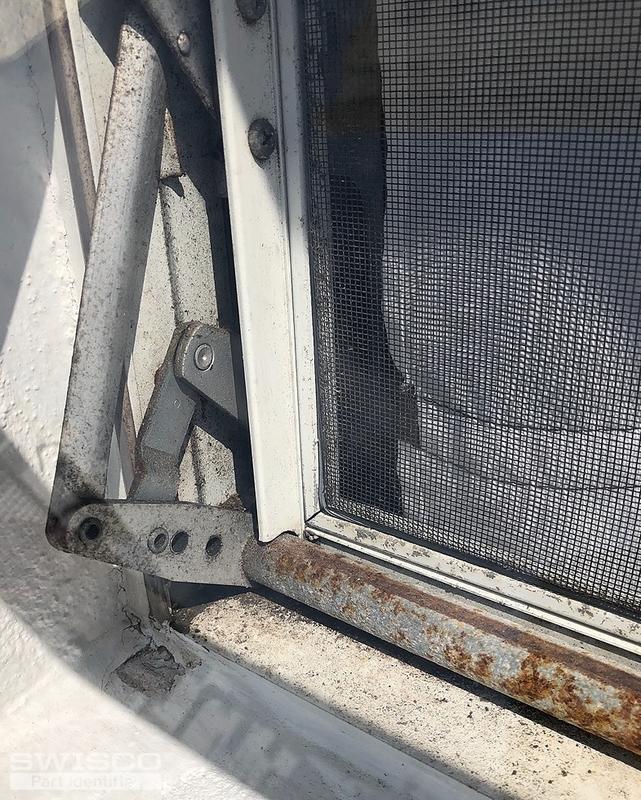

Thumbnail of the uploaded file named AAC4960A-ED0B-4086-91B0-0F9FA24AB628.jpeg

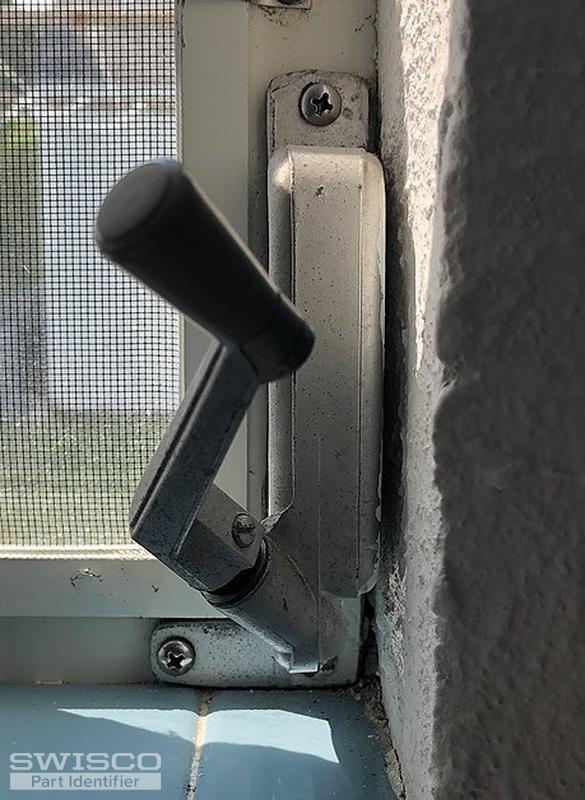

Thumbnail of the uploaded file named C7634E65-998D-4F2F-9910-4291F677051A.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your patience during this busy summer. I'm afraid I don't recognize this operator. I'm going to forward this to my colleague Dave, who has a lot more experience with these parts than I do. Please give us just a little more time and we will get back to you as soon as we can.

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Looking at your photo I can't tell if your operator link arm is held in with a screw and I'm looking at the threaded sector with the screw removed, or if your link arm is held in with an e-clip from the back side. You will need to remove the inside screen and the mounting screws holding the body to the window frame to get a better look on how to disconnect the link arm from the window.

In the meantime, consider our 39-025 as a possible replacement. You won't know for sure until you can get the old one off, but see what you can do.
