Awning WIndow Replacement Parts

A home owner from Honolulu says:
Aloha,

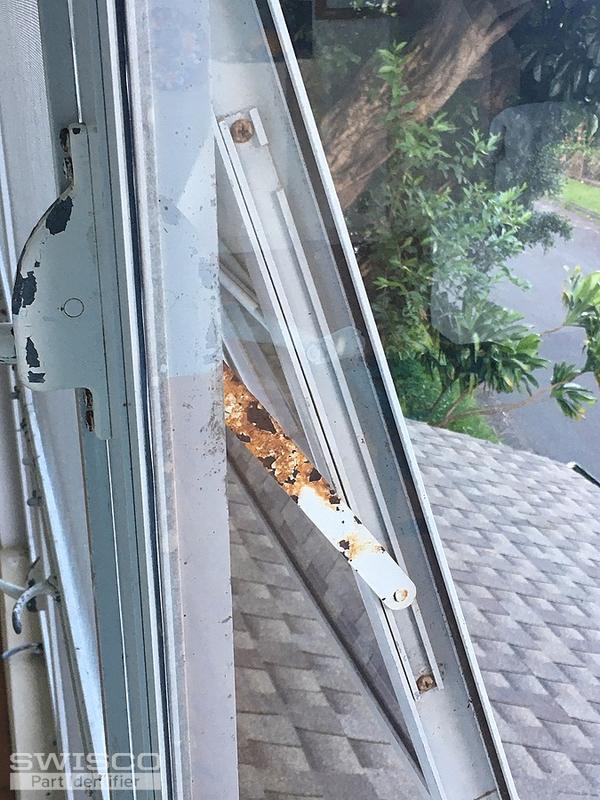

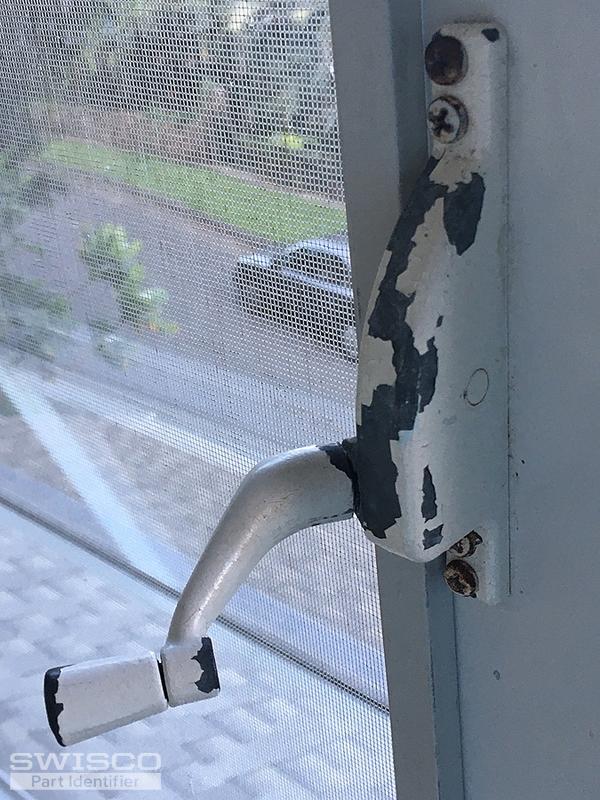

I am trying to find parts to replace these awning window cranks and arms, window frames are all aluminum. They were probably installed in 1989. What do you suggest?
Thumbnail of the uploaded file named IMG_3115.jpg
Thumbnail of the uploaded file named IMG_3116.jpg
Profile picture of Tom
Tom from SWISCO responded:

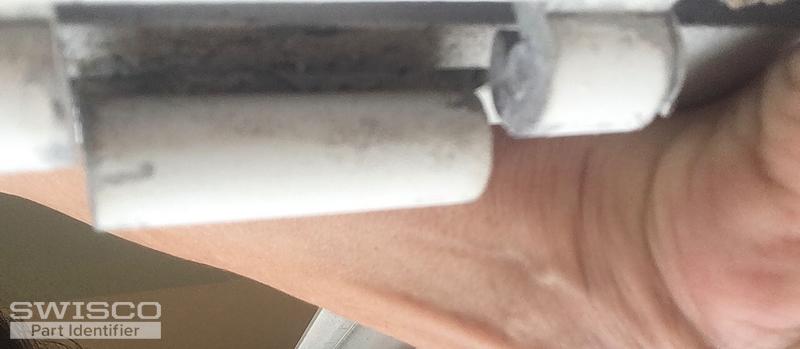

This looks like a very old style casement window operator converted to use with an awning window. That's not a big deal, we still may be able to help, but I'd like a little more information before I recommend anything. Specifically, would it be possible for you to disconnect the end of the arm from the sash track? I want to see the shape and style of the bearing it uses to slide along that track. That will ensure that any suggestion we make will work the same way. Thanks!

A home owner from Honolulu says:
Thank you Tom. Do I just need to loosen those 2 screws and slip it out?
Profile picture of Tom
Tom from SWISCO responded:

You shouldn't have to remove the two screws. The wheel should come out of the track if you align it with that notch. The video below shows what I mean; this video obviously shows a very different operator in a very different window, but disconnecting the arm from the track follows the same principle.

A home owner from Honolulu says:

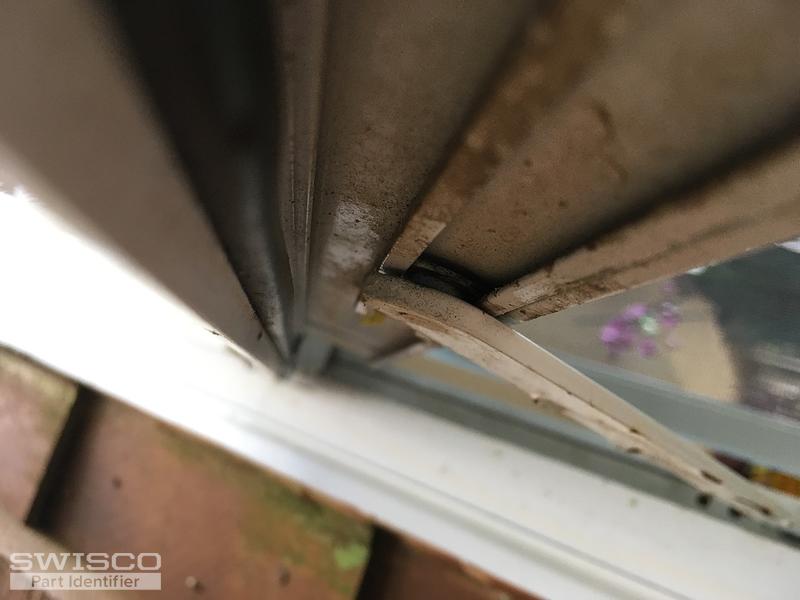

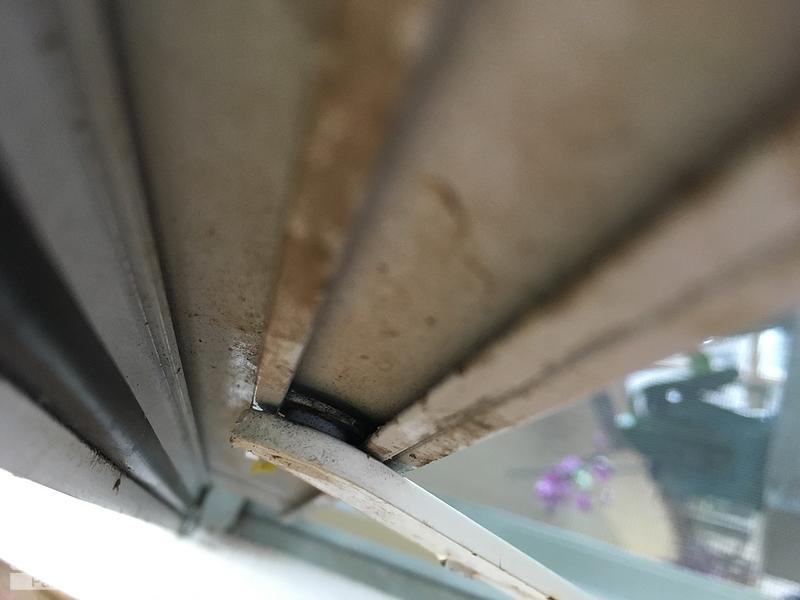

It doesn't slip out but if you zoom in on this photo you can see the wheel.
Thumbnail of the uploaded file named 48333DAF-8A22-41B3-A122-1185103B0A55.jpeg
Thumbnail of the uploaded file named E6D34B28-8BEF-4850-A18C-2075FE30B4AB.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! This is perfect, actually. That's just what I needed to see.

I think you should look at our 39-002 and 39-001 operators. These are a slightly different style compared to yours, but the bearing at the end of the arm should fit in the same track the same way. It should also fit in the same installation holes in the frame, but you may want to check our measurements just to be sure of that. You can never be too safe.

A home owner from Honolulu says:
Thank you Tom,

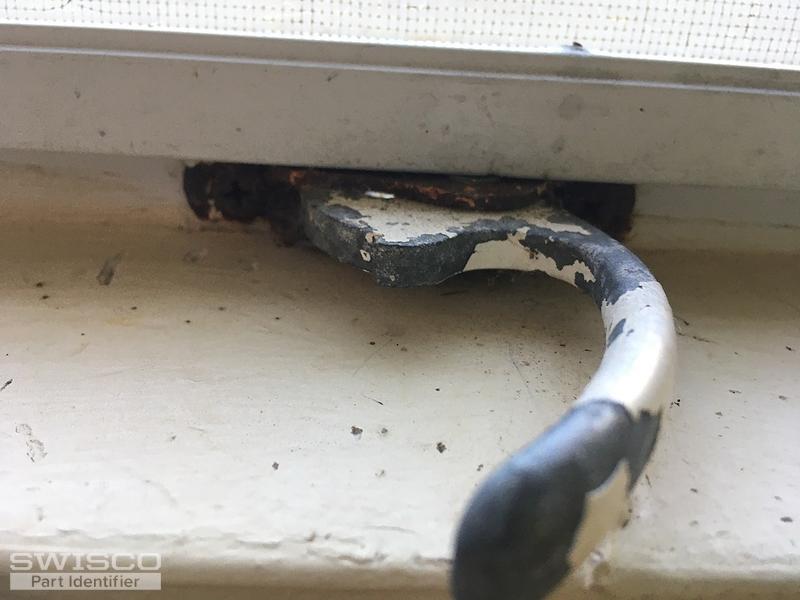

Which locking handle would match this photo?
Also I see aluminum but do they come in white?
Thumbnail of the uploaded file named D67F48C8-341B-4015-8CED-A123399A43BD.jpeg
Thumbnail of the uploaded file named 28D0D44D-8386-401B-A797-9D29921F18F1.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Sure, we have a couple locks that are similar. See our 38-001, 38-005, and maybe even our 38-165. You'll need to compare your dimensions to ours, as well as the style of the locking hook itself, which is obscured in this photo.

A home owner from Honolulu says:
Thank you Tom
Do the casement window operators and cranks you recommended come in white?
Profile picture of Tom
Tom from SWISCO responded:

Unfortunately, the products I suggested are not available in alternate finishes. I apologize for the inconvenience.

A home owner from Honolulu says:
Thank you Tom. No inconvenience, do you have another product in what's that might do the job?
Profile picture of Tom
Tom from SWISCO responded:

I don't believe that we do, no. These are very old parts and your options will be limited any way you cut it.

A home owner from Honolulu says:
Thank you Tom.
A home owner from Honolulu says:

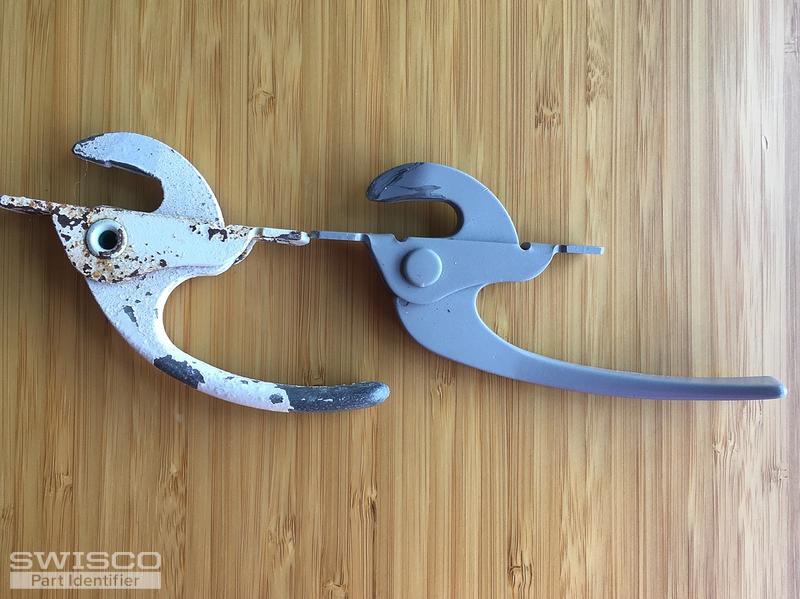

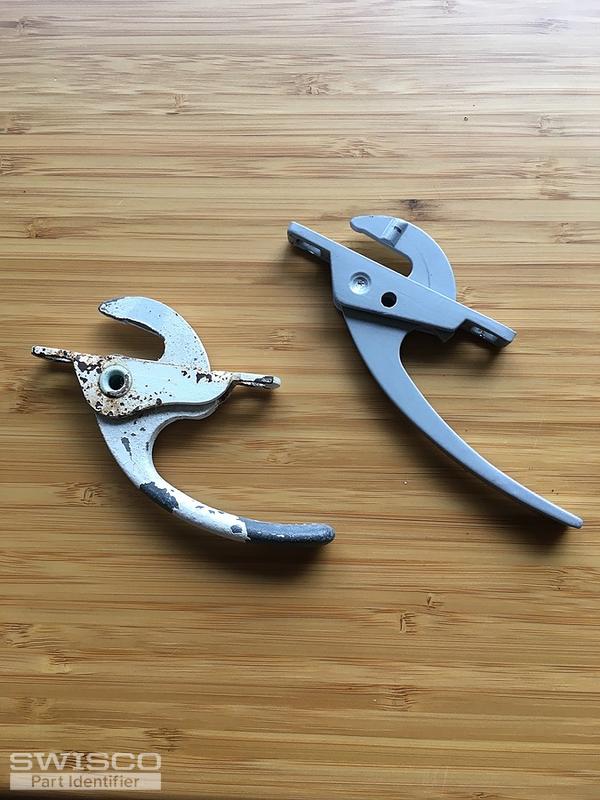

I ordered the Window Crank operator and it fits, thanks again! I also ordered 38-001 but it does not fit into the existing Casement Lock keeper (which I do not really want to change). Can you recommend another Locking Handle that would work? Here is a picture of existing and 38-001 side by side. As well as a picture of existing lock keeper.
Thumbnail of the uploaded file named SwiscoLockingMech_3205.jpg

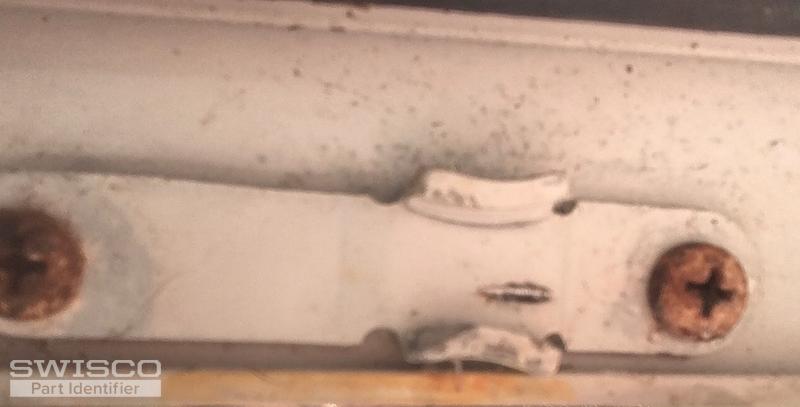

Thumbnail of the uploaded file named SwiscoLockKeeper_3203 2.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Sorry to hear this lock didn't work out for you. Take a look instead at the 38-165 and 38-166 locking handles. They have a wider locking gap of 3/8". See if your locking handle has the same gap size. If so, then it should be compatible with the old keeper.

A home owner from Honolulu says:

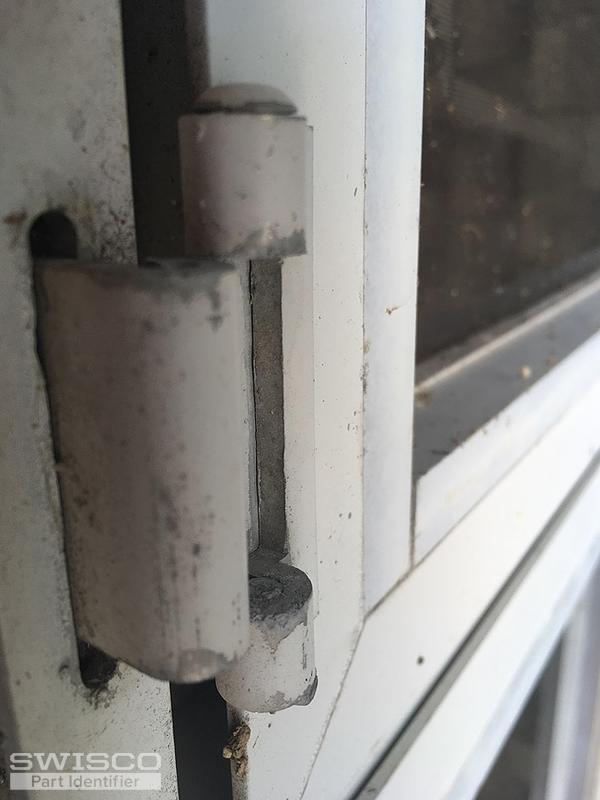

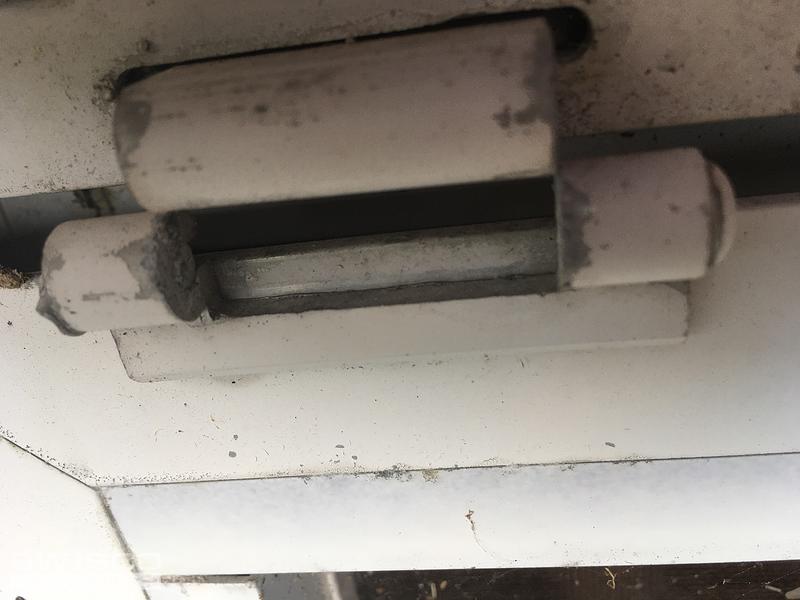

Thank you! Do you have window hinges like the attached photos?
Thumbnail of the uploaded file named A5C1E77B-937C-4356-A19A-E74A5C64846A.jpeg
Thumbnail of the uploaded file named 5302A2BC-6429-4497-98CB-F6A2EF8D58C2.jpeg
Thumbnail of the uploaded file named 0F5380C6-D3A8-4387-AEE6-6891C4794DDA.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I'm sorry to say that we do not. These are very old style hinges that aren't popular anymore. An older, mom and pop type hardware store near you may still have something like this.
