Awning Window Cranks

Quick Learner from Clearwater Florida
Looking to replace 11 of the same style cranks and associated screws and hardware. 8 are mounted on the right hand and 3 to the left. Also looking for a recommended lubricant and maintenance manual.
3 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we'll need to see your assembly fully removed from the window so that the arms that attach to the internal linkage are fully visible. Thank you!

Quick Learner from Clearwater Florida

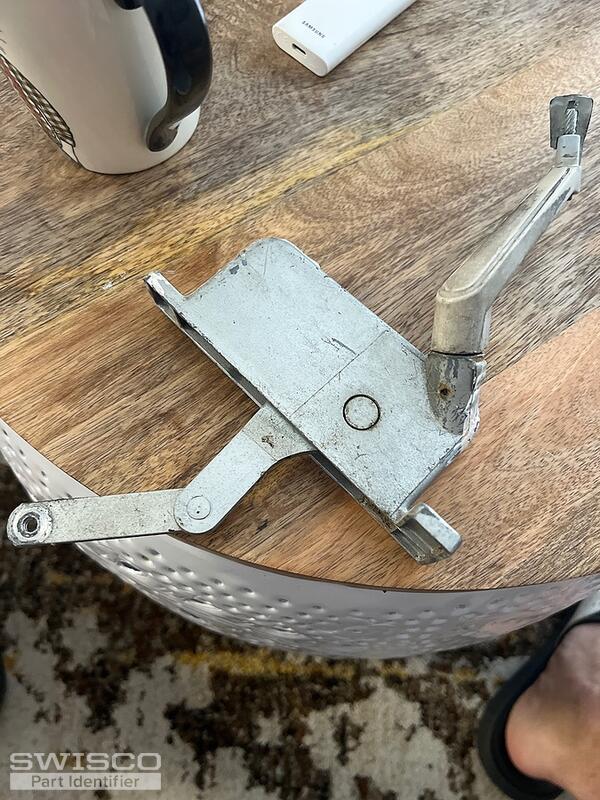

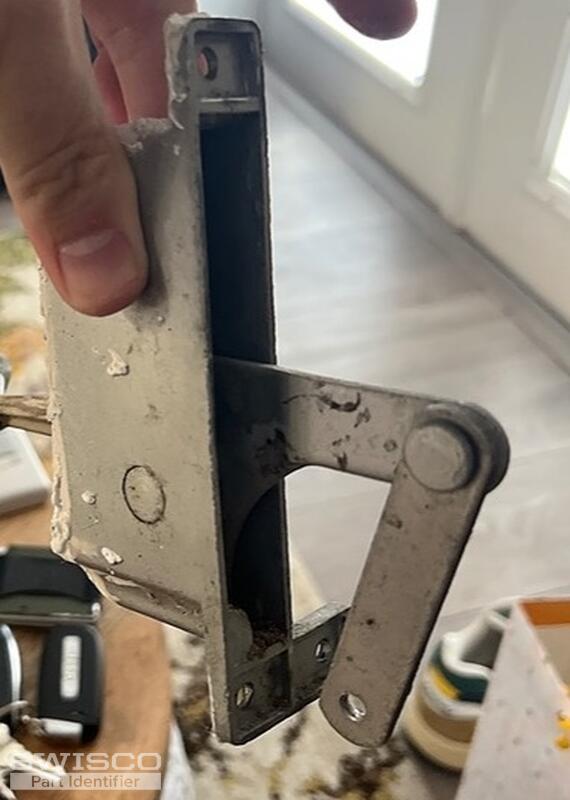

I've attached photos of the mechanism removed from the window. Let me know what other information you will need
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. I'd recommend starting by comparing the specifications of the 39-061 and 39-350 operators shown below to your assembly. We also offer the 39-060 opposite-handed version of the 39-061. Unfortunately, the opposite-handed version of the 39-350 is no longer available. We apologize for the inconvenience.

39-061

Dimensions for 39-061
Dimensions for 39-061

Alternate view of 39-061
Alternate view of 39-061

39-350:

Dimensions for 39-350
Dimensions for 39-350
