Awning Window Hardware

A home owner from USA says:
September 26, 2022

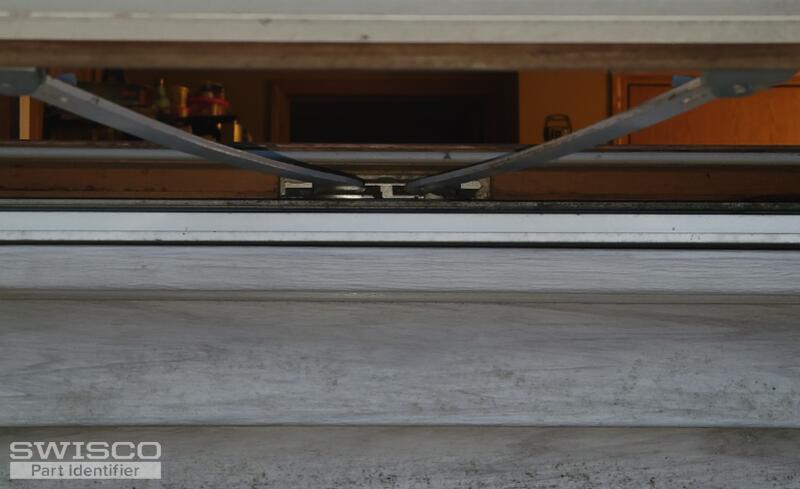

I have a truth awning window crank that is broken. Which area on the part do I measure to get the correct replacement? If I measure it with the window closed the full length is around 22 1/2 inches long. With the window open the track that the arms run on is about 26 1/2 long. Thank you for any help you might be able to provide
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Profile picture of Emily
Emily from SWISCO responded:
September 29, 2022

Hi there!

I recommend you take a look at our 39-348 and compare our dimensions with your old assembly to see if this matches what you're looking for.

detail of 39-348
detail of 39-348
Sill Mounted Awning Operator
Sill Mounted Awning Operator
39-348
$61.10
