Awning Window Opener

Question

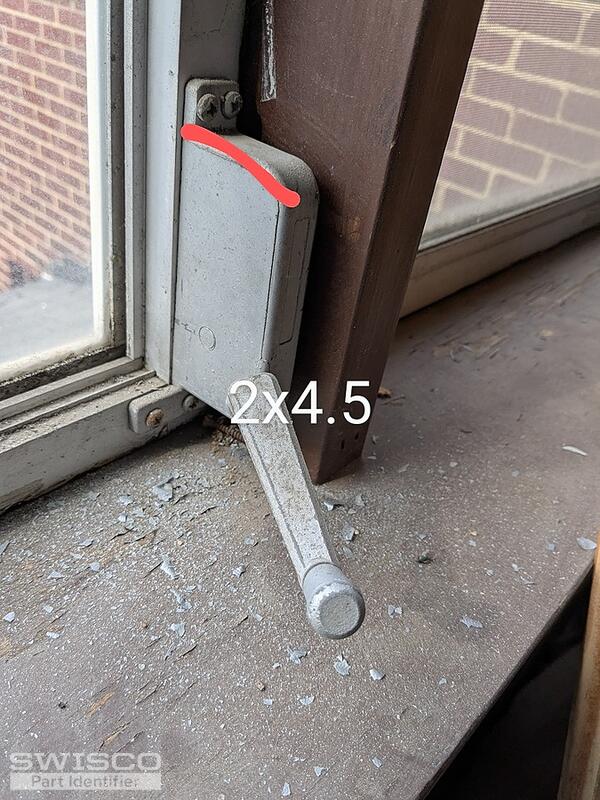

I have not been able to identify the window manufacturer. No markings on the opener. I haven't removed the opener yet hoping to identify a replacement from the photos. It looks like the 39-017 might be correct? The other possibility is the 39-280?
Thanks for any help

Dave Sr. · Accepted Answer

Hello,

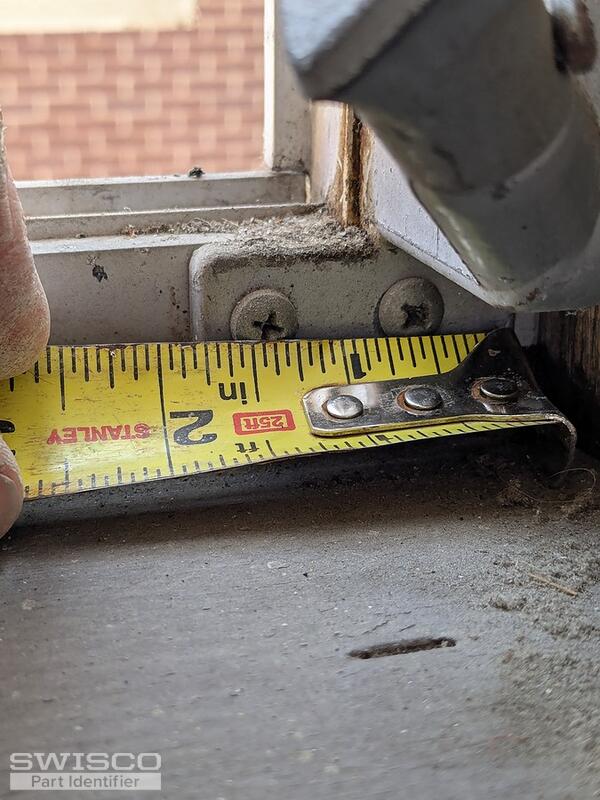

We can't be sure without seeing your operator removed from the window but I don't believe the 39-017 with the "threaded" hole at the end of the link arm is the one you need. From what I can see, it looks like at the end of your link arm is a 3/8" hole, which would take the 33-067 shoulder screw.

Take a look at the 39-280 with the bottom mounting holes at 1-1/8" on center, the 39-074 with bottom mounting hole centers at 13/16", and the 39-419 with bottom mounting holes at 7/8" on center. Review the suggested hardware, along with the related videos to decide which would be the best fit for your window. Thanks for posting!
