Awning Window Operator

A home owner from Silver Spring, MD 20904 says:
August 14, 2020

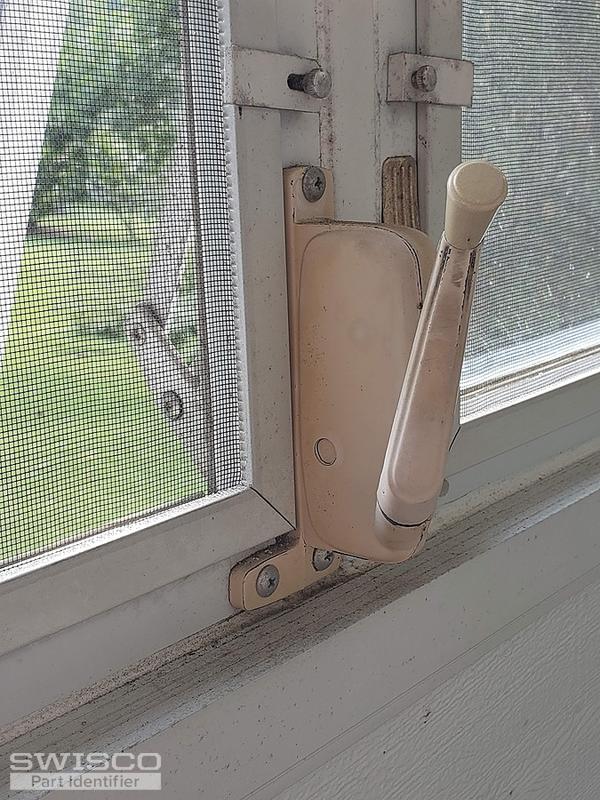

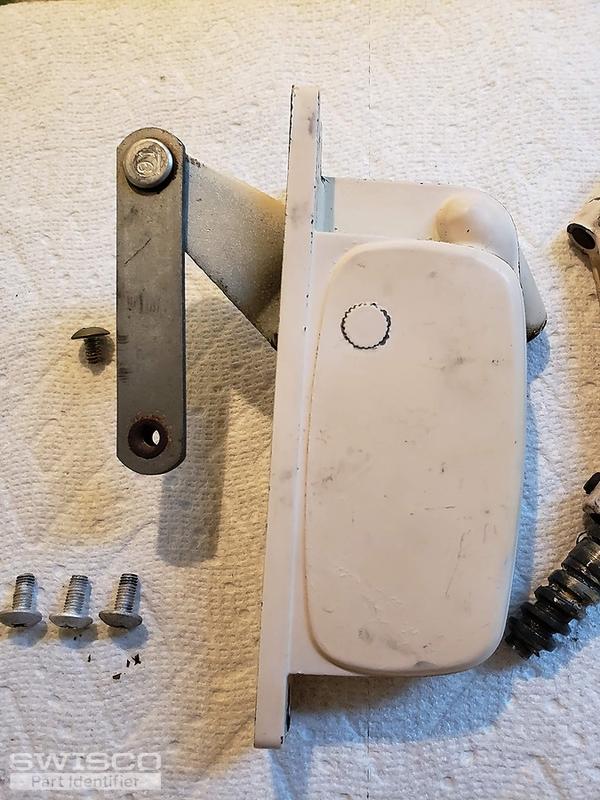

I need a replacement for this awning window operator.
There are two numbers on the arm of the operator, 78 and 91
The bottom holes are 1 1/8 inches apart (center to center).
The vertical holes are 5 1/4 inches apart (center to center).
The arm is 4 1/2 inches long.
The body dimensions are 15/16 in wide x 5 7/8 in long x 2 1/4 in deep.

Do you have a part that matches?
Thanks Mark
Thumbnail of the uploaded file named 20200810_125323.jpg
Thumbnail of the uploaded file named 20200810_130709.jpg
Thumbnail of the uploaded file named 20200810_153810.jpg
Thumbnail of the uploaded file named 20200810_153947.jpg
Thumbnail of the uploaded file named 20200811_165031.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 19, 2020

Hello,

Take a look at our 39-025 and 39-026 box operators. The dimensions match the ones you've provided and it also has a threaded bushing in the link arm, which looks like it may serve the same function as yours. Look them over and see what you think. Thanks for posting!
Awning Window Crank Operator
Awning Window Crank Operator
39-025
$27.10
Awning Window Crank Operator
Awning Window Crank Operator
39-026
$27.10
