Awning Window Operator

Question

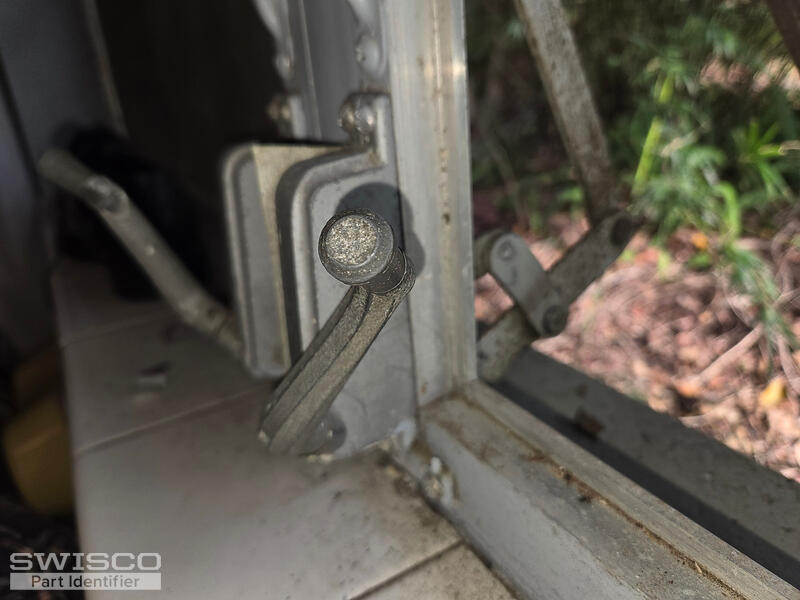

I need several awning window operators, both LH and RH. I'm attaching a sketch with dimensions I believe are important and photos of an existing LH operator from several angles. I cannot find any identification on the windows or the operators.

I thought 39-016 would be close, but it is not quite. The window will almost, but not quite close. I'm not quite sure what is binding at that point. But the control arm is clearly the wrong shape and length. My error in making a selection. I cannot return this one as I modified it attempting to get it to work.

Hopefully you will be able to suggest a replacement that will work.

Thanks

Jasmine · Accepted Answer

Hello,

Thanks for reaching out to us! Your casement window operator appears to be a closer match to the 39-410 and 39-411 Ware Window Cranks. To confirm that these are the right replacement, be sure to carefully double check the dimensions.

This appears to be the closest in design to your operator.

Dimensions for 39-410
