Awning crank : SWISCO.com

Quick Learner from New Jersey

Jun 18, 2024 6:57 pm

Please help ID based on dimensions. Ty

1 user uploaded image

4 Replies

Casey from SWISCO

Jun 21, 2024 11:02 am

Hello,

We'd be happy to look into this for you but we'll need a bit more information to get started. First, we'll need to see a clear view of the top and bottom installation holes to narrow down your options. The distance between the mounting holes, as well as the diameter of the hole at the end of the link arm, are key dimensions that we'll need to compare to our inventory. Thank you!

Quick Learner from New Jersey

Jun 23, 2024 10:57 am

There are two bottom mounting holes at 1 1/8" apart and the link arm hole is 3/8". See photos.

2 user uploaded images

Casey from SWISCO

Jun 24, 2024 8:34 am

Thanks for getting back to us. Our best match for your awning crank would be the 39-012. We also offer the 39-011 opposite-handed version. The length of the link arm differs slightly but that wouldn't normally be a deal breaker since the gears have a good amount of play to compensate for the difference. Take a look and see what you think.

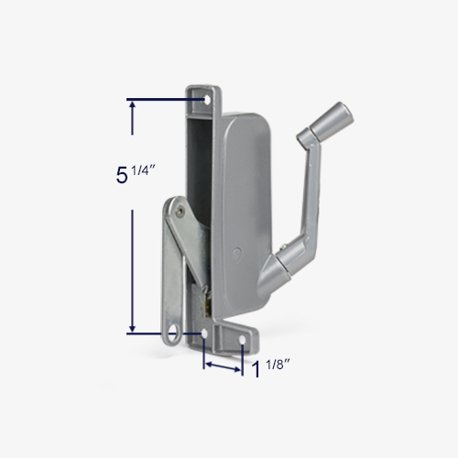

Dimensions for 39-012

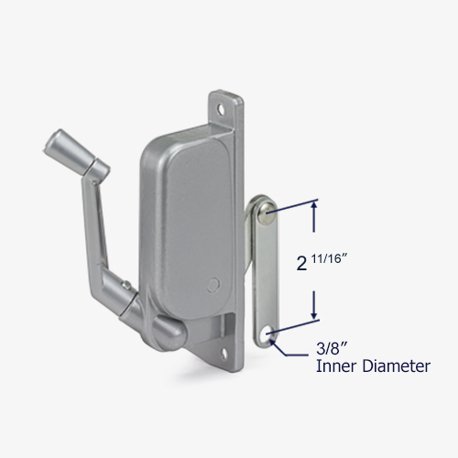

Alternate view of 39-012
