Awning operator

A contractor from CA says:
March 26, 2021

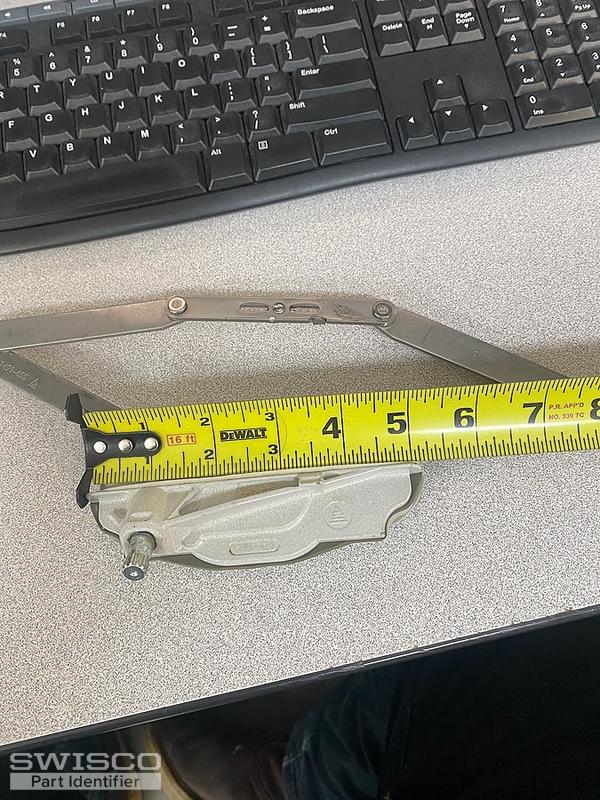

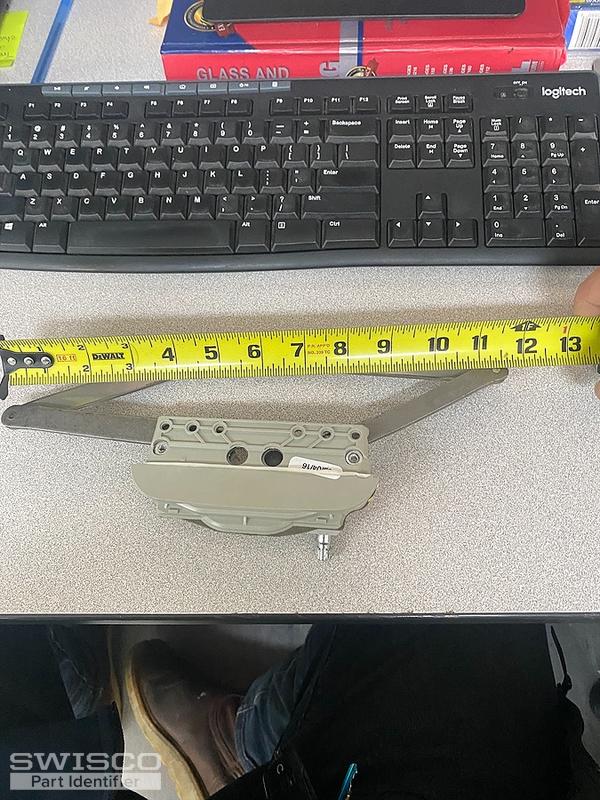

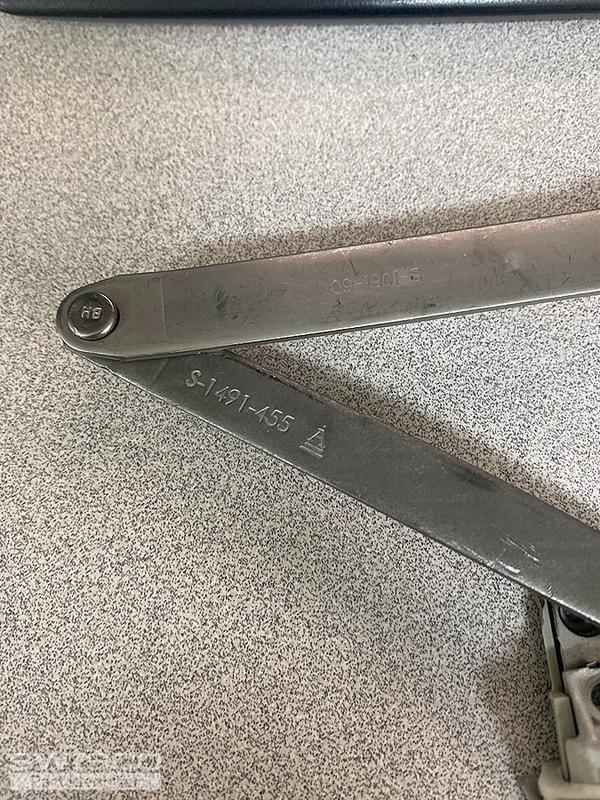

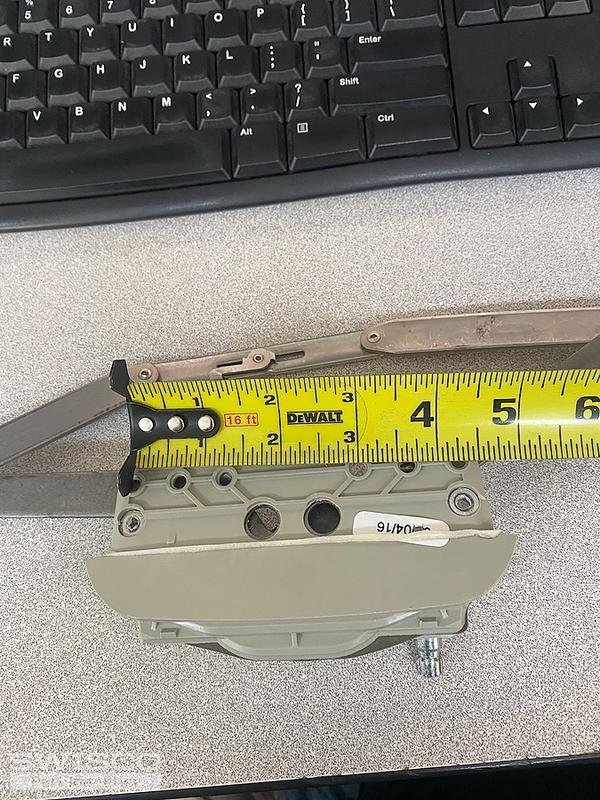

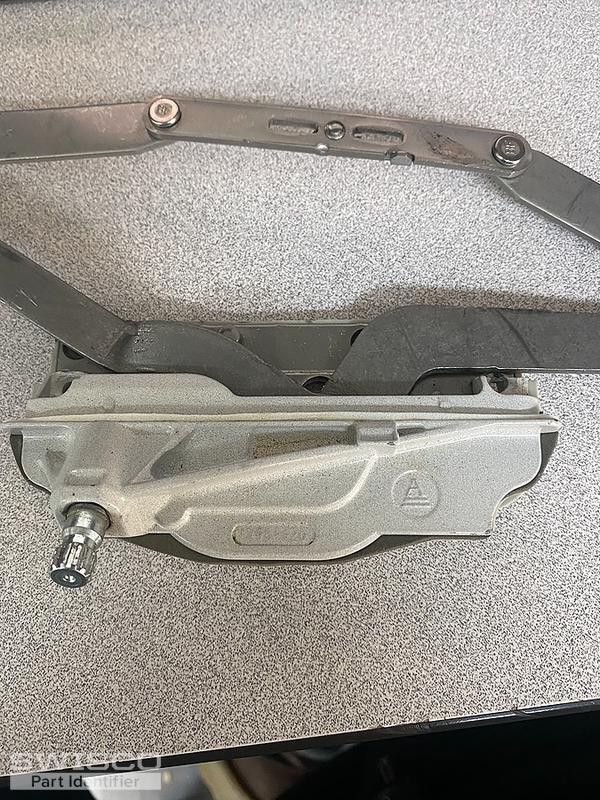

I think I have a Amesbury truth operator. The overall arms are about 11 1/2 inches. The base is square in shape. Looks like the center of the mounting holes is 4 1/4 inches

I have seen some on your website but they don't look to be as small as this one the overall length of the arms is about 11 1/2 inches long.
Thumbnail of the uploaded file named 96A4653B-2A92-40A1-BB4C-A2BE8F127F55.jpeg
Thumbnail of the uploaded file named FBF667E6-AF94-44A2-AB14-A19BB1A1F810.jpeg
Thumbnail of the uploaded file named 722EC7C9-B631-4A83-90FE-D1B0769B0105.jpeg
Thumbnail of the uploaded file named BA00A0A2-308C-4FA4-979C-A052735CCFA2.jpeg
Thumbnail of the uploaded file named image.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 30, 2021

Hello

I believe you have an Ashland operator that I don't believe is still available. That being said, take a look at the 39-324 operator, along with the 39-170 sash bracket and 39-323 cover to see if this base would be wide enough.

Also, look at the wider Maxium operator, 39-433 and 39-433B bracket. You might need to remake the sill cover to fit the new operator base.

Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Window Sash Bracket
Window Sash Bracket
39-170
$1.94
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Truth Hardware Contour Cover
Truth Hardware Contour Cover
39-323
$4.10
EntryGard Awning Operator, 12"
EntryGard Awning Operator, 12"
39-324
$74.96
Maxim Narrow Awning Operator
Maxim Narrow Awning Operator
39-433
$50.19
Truth Maxim Narrow Awning Operator Bracket
Truth Maxim Narrow Awning Operator Bracket
39-433B
$5.04
SWISCO Window Operator Crank Handles
SWISCO Window Operator Crank Handles
VIDEO
WATCH >
How to Replace an Awning Operator
How to Replace an Awning Operator
VIDEO
WATCH >
Watch How To Repair A Casement Window Crank Operator
Watch How To Repair A Casement Window Crank Operator
VIDEO
WATCH >
