Awning operator

Distributor from Wilmington, DE

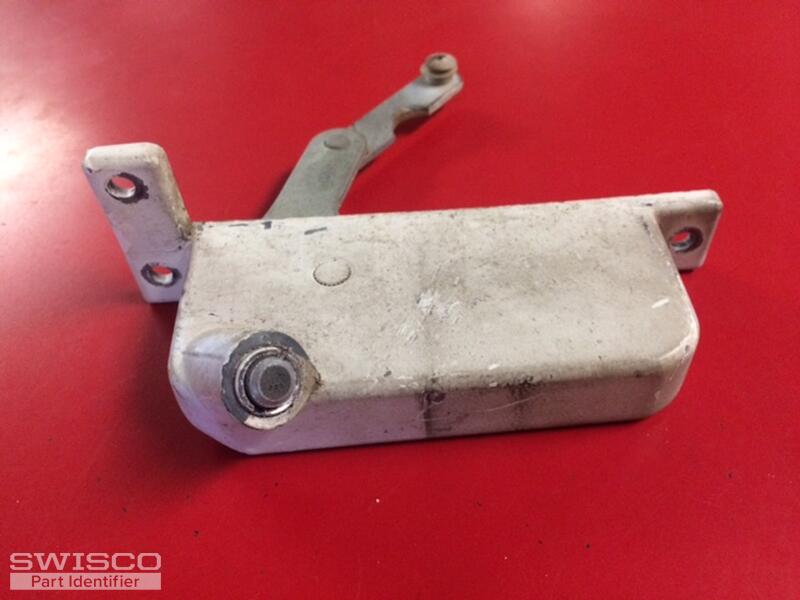

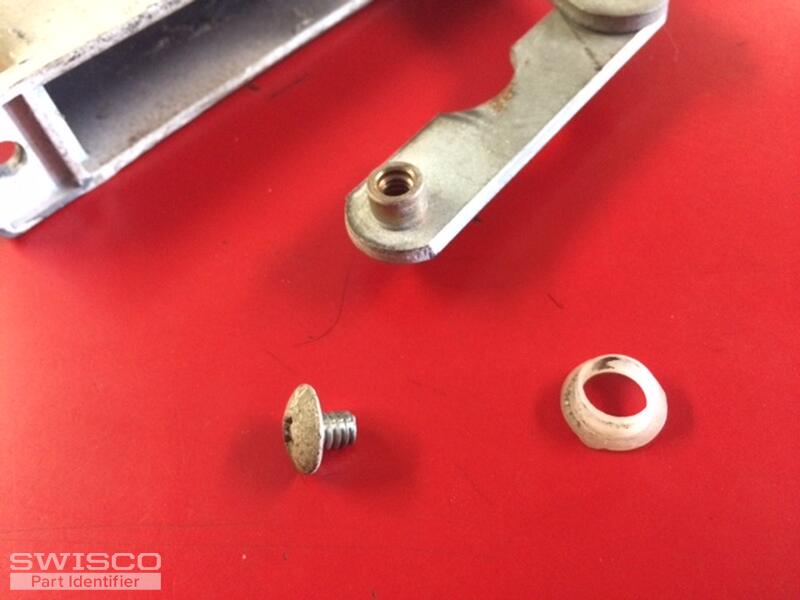

Can you supply this operator? May need several each right & left. Vertical hole spacing 5-1/4", horizontal 1-1/8", end link is 2-3/16" c-c w/10-24 stud, uses screw with shouldered plastic bushing, bushing OD 3/8". Main gear arm is 2-5/8" c-c, end link is flat. Prefer white housing. Could probably substitute for operator with threaded arm and stepped screw.

Thanks,Joe C.

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Sure, see our 39-025 and 39-026. I think you'll find these match up quite well.
