Awning operator for a window built in the 60's

Handy Person from Daytona Beach

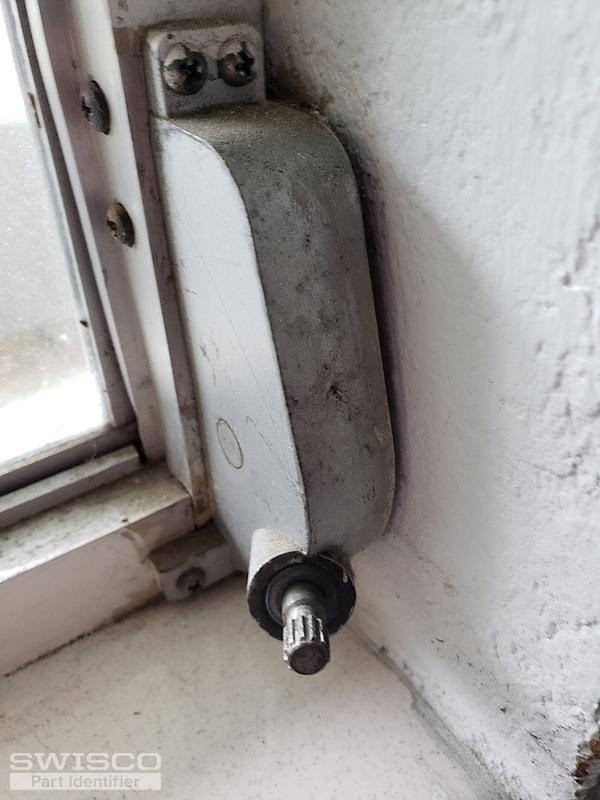

I am in need of parts for 12 awning windows. Cranks gear box operators ext. trying to figure out the manufacture. Built in the 60's.
4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

This is one old piece of hardware. I'm afraid we couldn't find an exact match for this operator. The closest we have is our 39-017. The top holes are slightly different at 1/2" apart, while the top to bottom spacing is the same at 5-1/4". The link arm is a different size too, but that doesn't matter so much since these windows tend to have a lot of play in the linkage.

The hole in the link arm, however, may be an issue, as ours is 5/16" and 18 threaded.

Do you think you could still get this to work in your window? I just couldn't find anything closer.
