Awning roto operators

Start a new Discussion

Distributor from Gibsonia, PA

Mar 25, 2021 3:34 pm

Look to be circa 1980 or so... left hand rotos. Original window manufacturer unknown.

3 user uploaded images

4 Replies

Bob from SWISCO

Mar 29, 2021 11:27 am

I am pretty confident we can help, but I need more information to possibly narrow this down. Can you remove the operator from the window and show me a clear view of it from behind? I need to discern the hole pattern on the top and bottom tabs. Can you also fully remove that link arm and give me a side profile view of it so I can see its shape and the hole at its end? From there I'll do my best to find what you need.

Distributor from Gibsonia, PA

Mar 29, 2021 2:51 pm

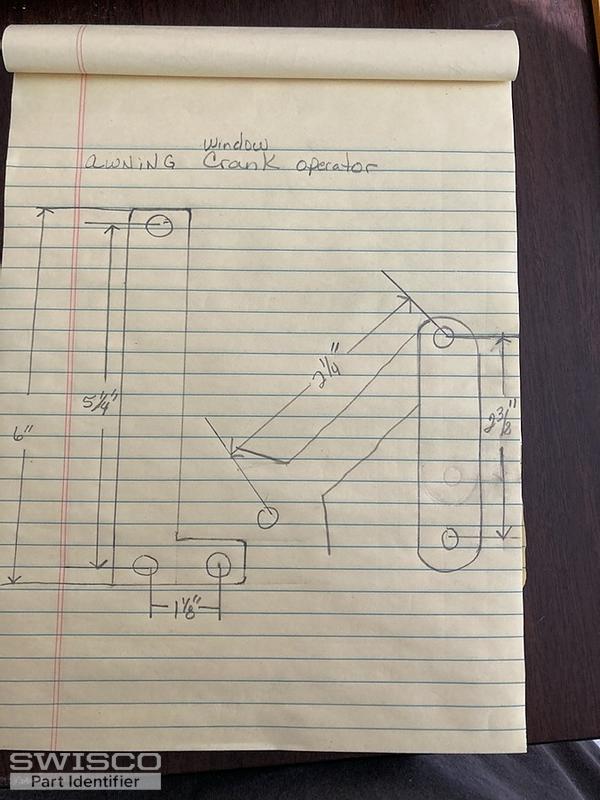

Thanks Bob. See attached... I'm not on-site, but the guy who is on site sent me this sketch, which should answer your questions.

1 user uploaded image

Bob from SWISCO

Mar 30, 2021 8:37 am

Possibilities include our 39-025, 39-061, or 39-194. Without knowing the shape and size of the hole at the end of the link arm, I cannot narrow it down any further. Compare these to the awning operator to see if any match up.
