Awning window

Start a new Discussion

Contractor from 44221

Oct 29, 2020 12:39 pm

Need replacement crank part

1 user uploaded image

4 Replies

Bob from SWISCO

Nov 2, 2020 11:53 am

I am afraid when that gear comes out with the handle, it means the entire awning operator has broken down and must be replaced. We can help with this, but I need to see the operator out of the window, with a clear photo from its rear so I can discern the hole pattern on its top and bottom tabs. A clear photo of its link arm, with the hole at the end, would also be most helpful. From there we'll do our best to find a new operator for you.

Contractor from 44221

Nov 7, 2020 12:29 pm

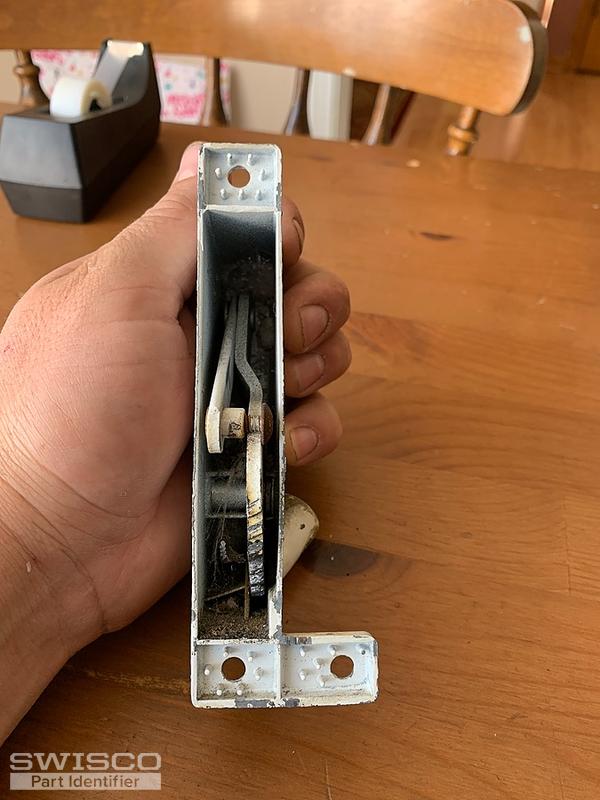

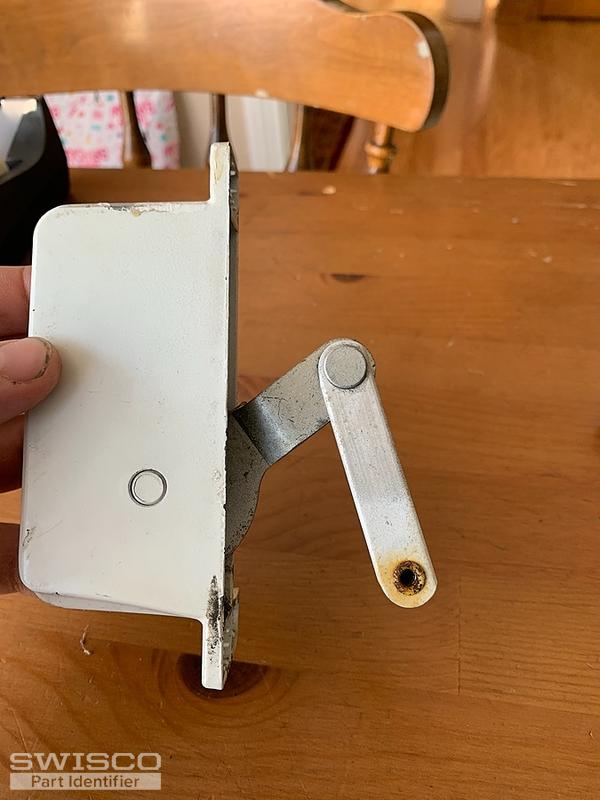

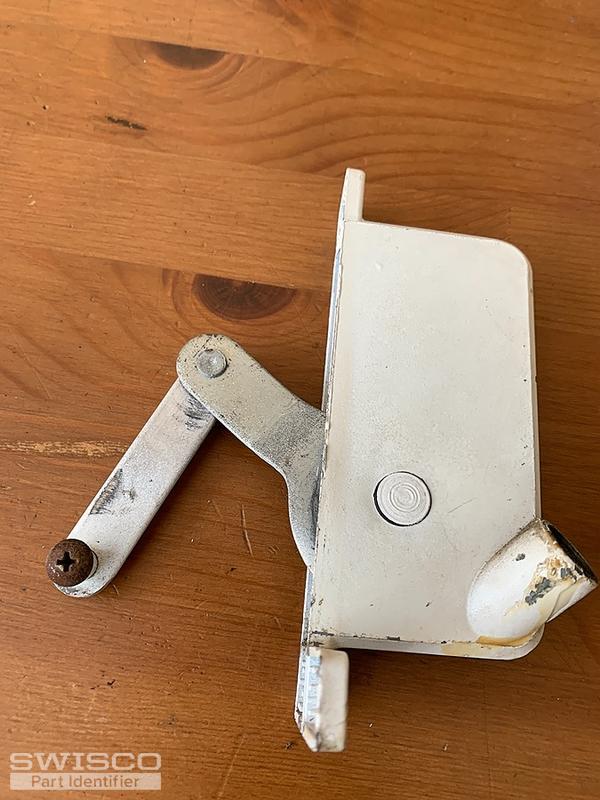

So I was able to get I out and tape the window shut for now. Here are some photos of the mechanism. If there is anything else let me know how I can help

5 user uploaded images

Bob from SWISCO

Nov 9, 2020 10:28 am

Thanks for these, that's perfect. I believe you might have our 39-025. Look over the pictures and dimensions and let me know if you agree.
