Awning window crank

Question

Hi,

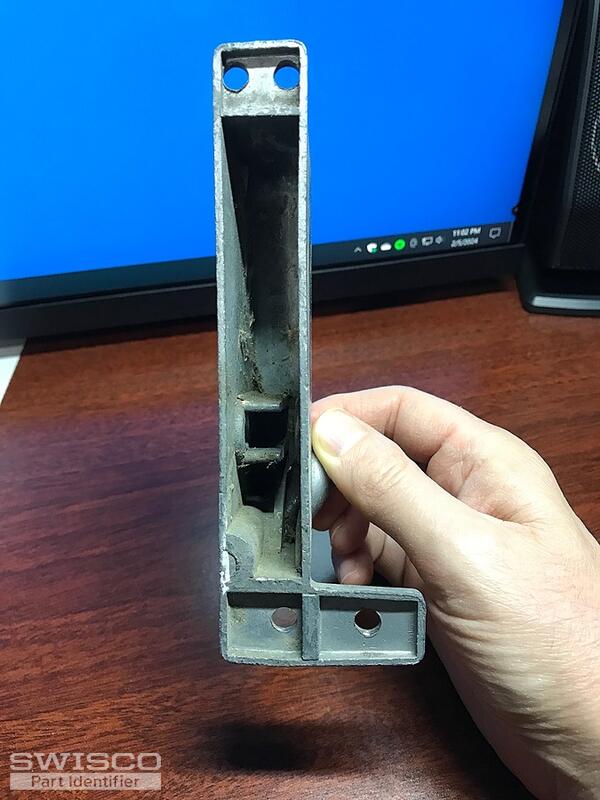

I attached 5 photos to assist in identifying the correct replacement window crank. Dimension between top two holes: 1/2"
Dimension between bottom two holes: 13/16"
Dimension from top holes to bottom holes: 5 1/4"

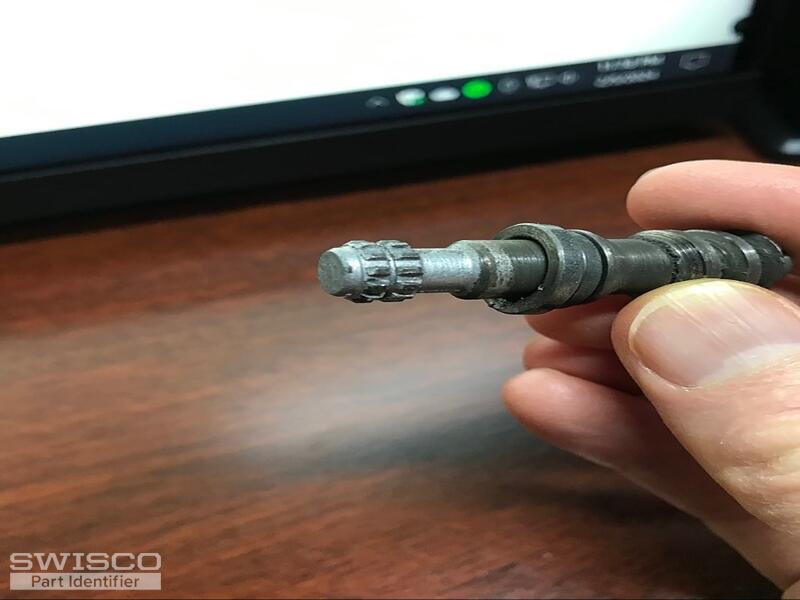

The crank innards must have been attached to the window, so I don't have it with me.

I looked all around trying to find a manufacturer, but no name on the part. The "quality" plaque as shown in the photo is only thing marked anywhere on the windows. It says "ADL" on the end -- not sure if that's a manufacturer...?

I looked through all the awning window cranks on your website and none appeared to be an exact match.

Any help you can provide in identifying this window crank is appreciated. Thank you.

- Mike

Dave Sr. · Accepted Answer

Thanks for reaching out to us, Mike. Unfortunately, we don't sell a match for this operator. Going off just the dimensions alone, the 39-074 and 39-075 would be the closest we can offer but it differs from your old hardware.

Furthermore, I'm afraid we aren't familiar with the ADL brand so we don't know who might have the operator you're searching for. I am very sorry that we can't be of more help.

Alternate view of 39-074

Alternate view of 39-075
