Awning window crank mechanism

Quick Learner

Nov 29, 2015 5:26 pm

Our home was built in 1958 (I think) and has the original awning Windows. Three of our crank mechanisms need to be replaced and I am not sure what to order. I have attached 3 photos. There is an ID inside the housing that says 1 RH.

Can you help? Thanks so much!

Alison

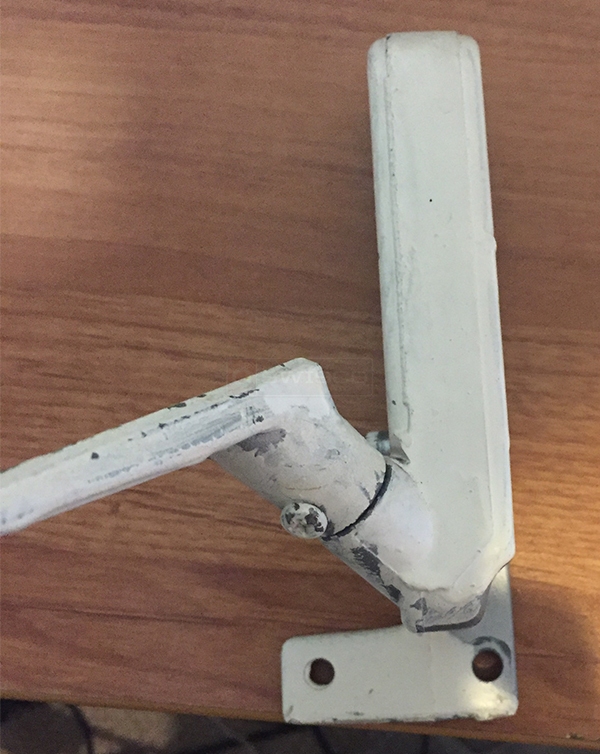

User submitted photos of a window operator.

6 Replies

Dave Sr. from SWISCO

Dec 1, 2015 3:10 pm

Thanks for posting, Alison. Could you show us some photos of the body of this operator? Specifically, I need a picture that will clearly show the mounting hole positions. Please also provide me your measurements of the mounting hole spacing. That would help us identify the operator.

Quick Learner from Atlanta

Dec 2, 2015 4:44 pm

Thank you for your response. The mounting holes are 5 1/4" apart. Attached are pictures. Thank you!

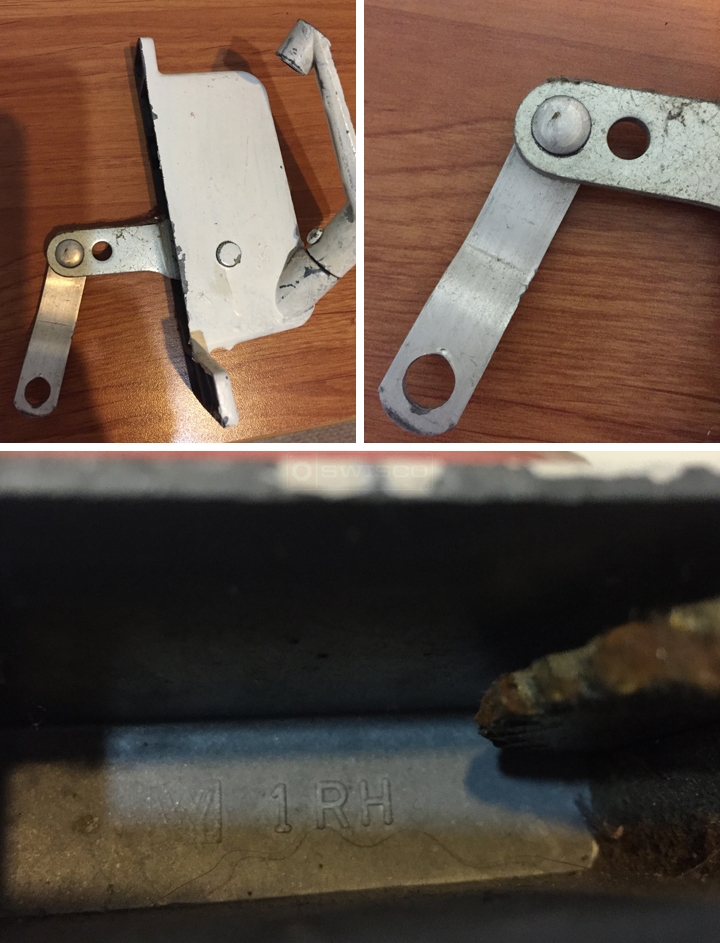

User submitted a photo of a window operator.

Paul from SWISCO

Dec 4, 2015 12:55 pm

Thank you! We still can't see the top hole (or holes, as the case may be), so I can't say for sure. I pulled up a few possible operator replacements, which you can see on the right side of this page.

Quick Learner from Atlanta

Dec 4, 2015 5:39 pm

Thanks for the suggestions. I was thinking the 39-194..
What hardware will I need?

Tom from SWISCO

Dec 7, 2015 9:21 am

Are you referring to installation hardware? You should be able to re-use your old screws, but if not then consider our 33-081.
