Awning window handle sos

A quick learner from New Jersey says:
March 14, 2018

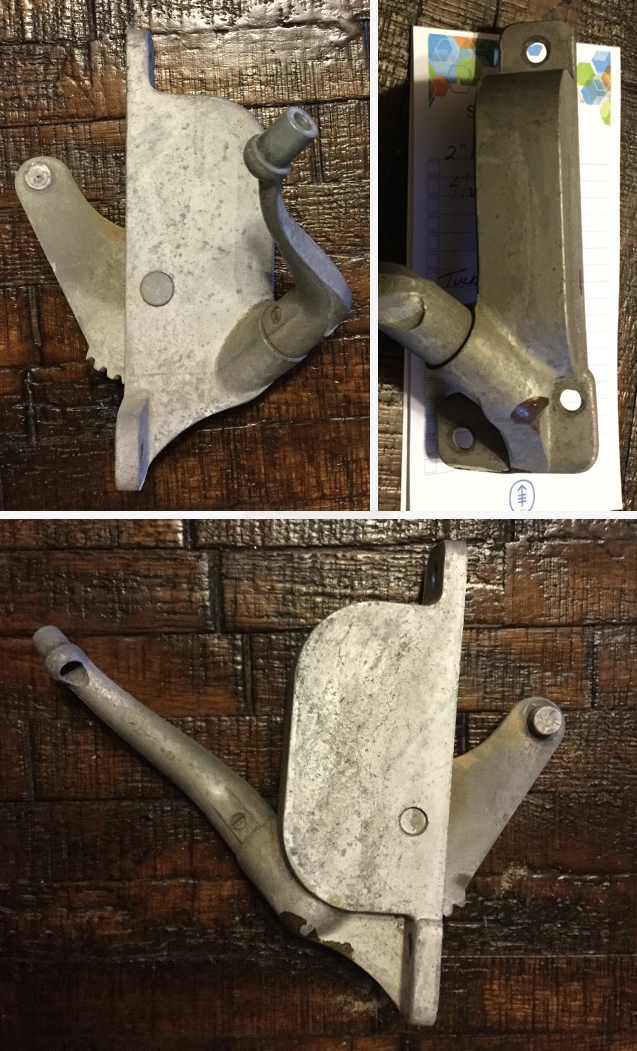

No manufacturers identification on handle. 5/14" center of top hole to center of bottom.
Awning window handles
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 19, 2018

This is an old operator that is no longer made. I believe in the past I used the 39-056 operator. I had to remove the link arm and use a nut and bolt or possibly a groove pin like the 33-077 with an e-ring. Take note once the parts are altered they can not be returned. Plus it's been a while since I've done this repair so it may be a bit difficult for you.

How well does the window operate? If it's not working well, you might want to consider replacing the complete window.
Crossly Window Crank
Crossly Window Crank
39-056
$21.41
Double Groove Pin
Double Groove Pin
33-077
$1.87
5/16" E-Ring
5/16" E-Ring
21-161
$0.32
Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
