Awning window hardware replacements

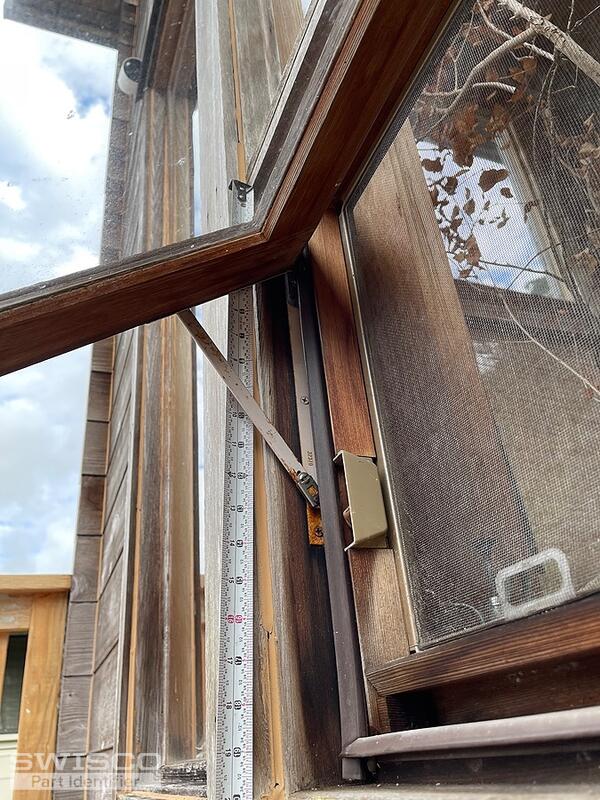

Thanks for reaching out! Your awning window operator looks a lot like our 39-083 21-1/2" Dual Arm Crank. To confirm that this is the right replacement, carefully look over the dimensions and compare them to your awning operator. The compatible bracket is the 39-170 Window Sash Bracket.

You may also need the 39-114L 11/32" Crank Handle.

Dimensions for 39-083

If you are looking to replace the hinges, I'll need to know the measurement for length of the sill track. From there we'll be able narrow down the track you need.
