Awning window mechanism

Handy Person from Rochester Hills

Oct 20, 2020 11:44 am

Hello

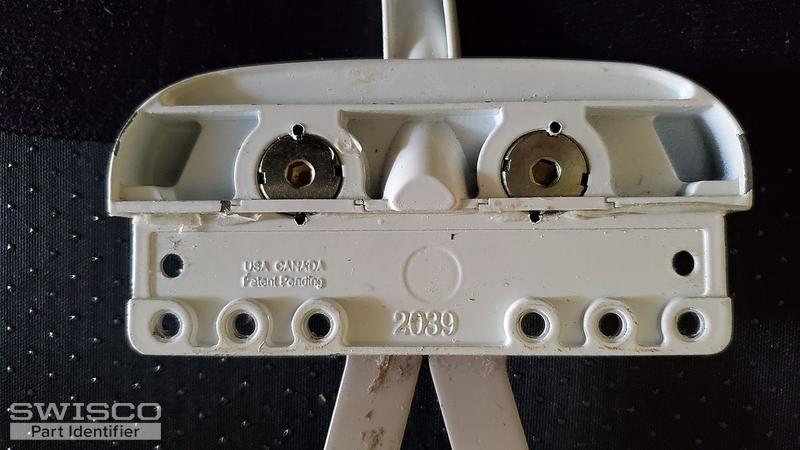

What would be the replacement part for this mechanism (TAFCO window)
I could not find anything with 2 x 3 screws on your website....!
Thanks

2 user uploaded images

6 Replies

Casey from SWISCO

Oct 21, 2020 3:11 pm

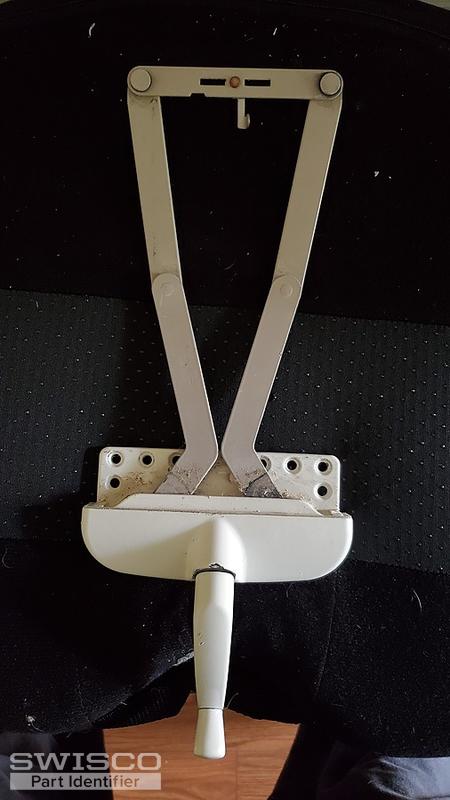

Hello, thank you for posting! Can you please show us the entire assembly, including a full view of the arms? We particularly need to see the attachments at the ends of the arms.

Handy Person from Rochester Hills

Oct 21, 2020 3:46 pm

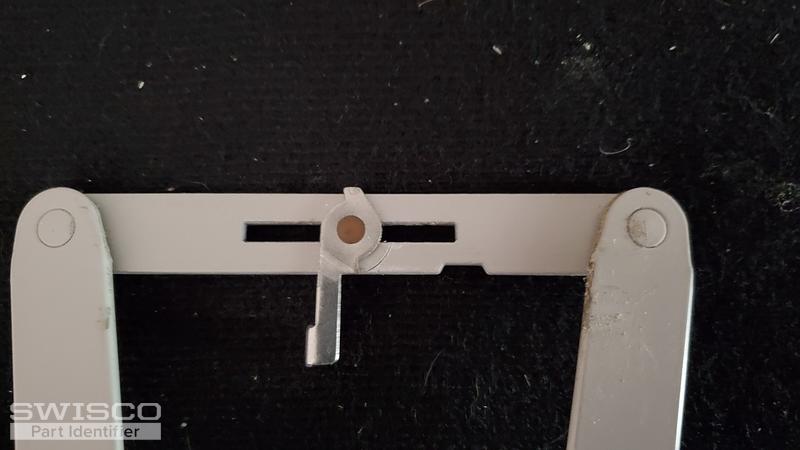

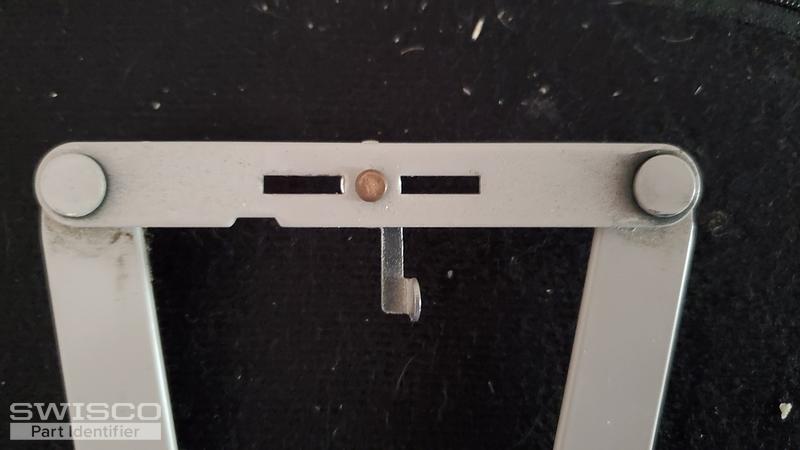

There is no screw to attach the end to the sash...just this small tabs that can rotate and lock the mechanism to the sash
Hope this help
Thanks

5 user uploaded images

Casey from SWISCO

Oct 22, 2020 10:17 am

Thanks for getting back to us with those pictures. Take a look at our 39-143 and 39-324. Review their dimensions to see if either could work as a substitute for you.

Handy Person from Rochester Hills

Oct 22, 2020 2:01 pm

the screw pattern of 39-143 doesn't seem to match, and I can't see the screw pattern for 39-324 on the pictures....!

Casey from SWISCO

Oct 22, 2020 3:51 pm

We believe the 39-143 is the closest match for your operator and is the most likely to function as a substitute. However, sill modification is sometimes necessary. You can review our return policy here. Good luck with your repair!
