Awning window opening mechanism

Home Owner from Port Townsend, WA

Hi, we're looking for a replacement part(s) for an awning window.

The knob/screw mechanism is stripped on the knob and probably the interior of the holding mechanism.

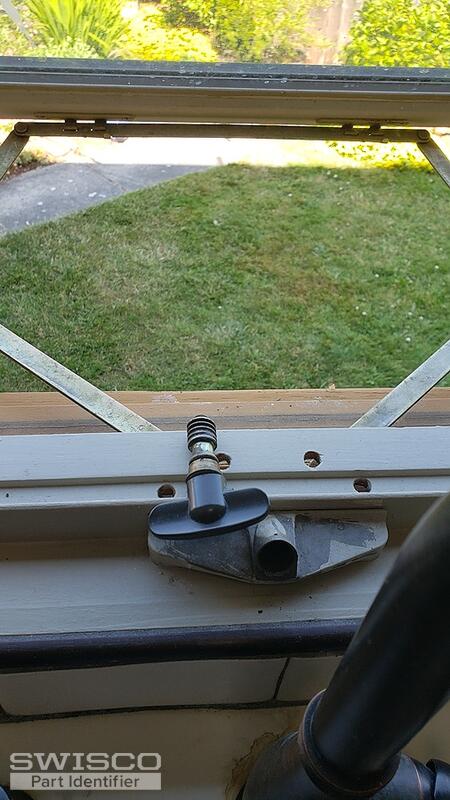

The knob and interior mechanism are shown in the lower portion of the attached photo.

The mechanism is 5" wide.

The exterior opening mechanism bar at the bottom of the awning window is 13.5" long.

The hardware has Truth stamped in several places.

Can you tell me what the replacement part(s) is?Thank your

1 user uploaded image
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I would recommend starting by comparing the 39-015 Roto crank to yours. The 39-114L or 39-205 handles are often used with this assembly but we also offer the 39-102 T-handle. Take a look and thanks for posting!

Dimensions for 39-015
Dimensions for 39-015

Detailed drawing of the 39-015 awning window crank operator
Detailed drawing of the 39-015 awning window crank operator
