Awning window operator

Quick Learner from Coupeville, WA
Jul 20, 2023 3:48 pm
Looking for the right replacement awning operator for Millard Essence series awning window. Existing operator is made by Truth. Numbers on arms are 41013 and 41016.

Photos attached. Broken crank pin is the source of my woes.

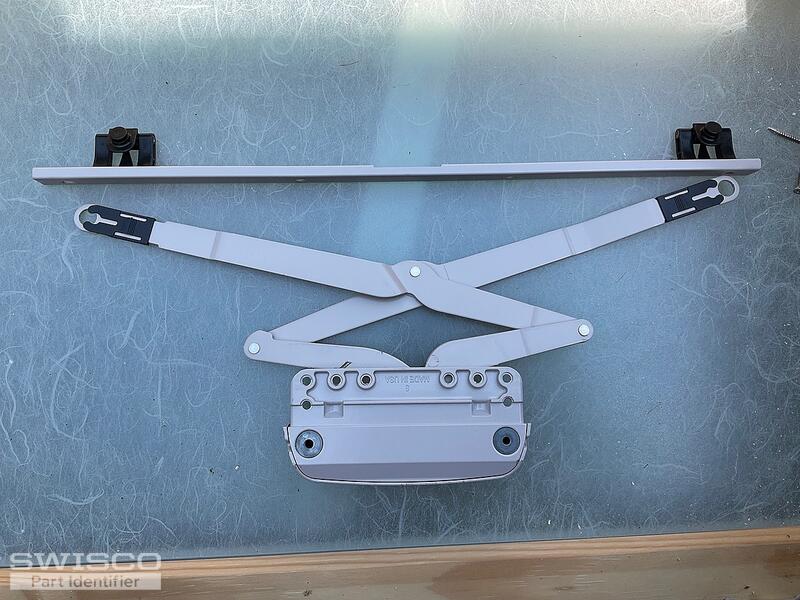

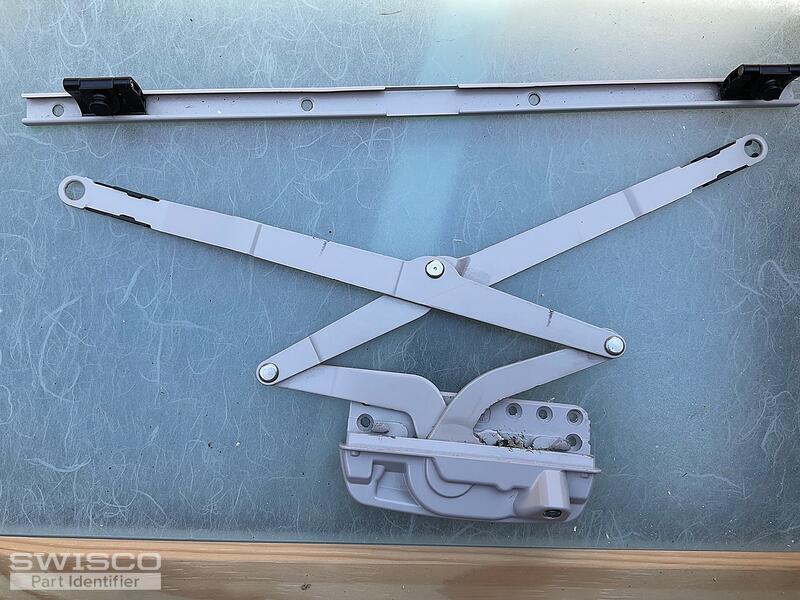

IMG_0128 IMG_0126
2 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 21, 2023 1:39 pm
SWISCO
EXPERT

Hello,

Your awning operator looks like a match to the 39-239B shown below. This assembly is used with the 39-536 pivot slide, 39-558 detach clip and 39-556 track shown in your photos. Take a look and let us know if you need anything else. Thank you!

Dimensions for 39-239B
Dimensions for 39-239B

Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B

Alternate image for 39-536
Alternate image for 39-536

Alternate image for 39-558
Alternate image for 39-558

Alternate image for 39-556
Alternate image for 39-556
