Awning window operator

Quick Learner from New York

Mar 16, 2024 8:01 pm

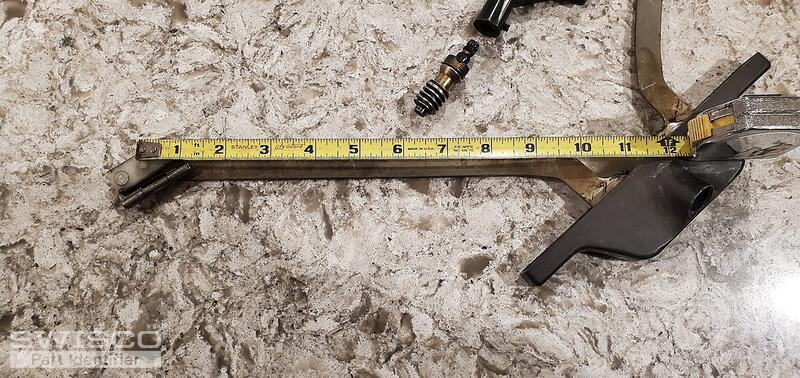

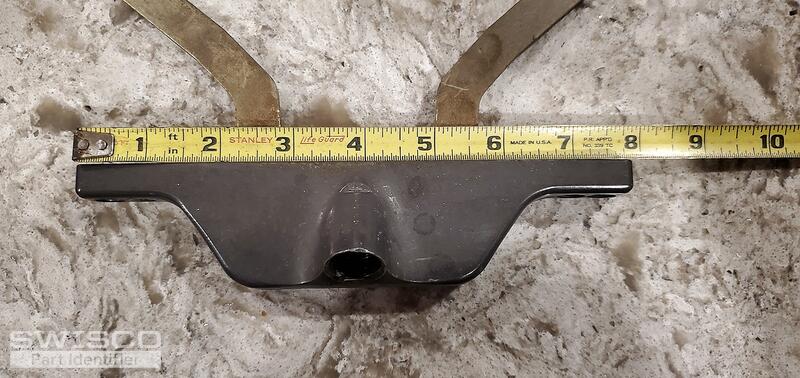

Crank shaft came apart or out. Think I need to replace unit or operator. I have more pictures installed if needed. No name on window or parts. The operator is stamped USA and UK PAT

The # on it is 213539. Thanks

Michael

5 user uploaded images

2 Replies

Casey from SWISCO

Mar 19, 2024 8:59 am

Hello,

Your crank resembles the 39-312 at first glance. Review the specifications below to confirm they match up to yours. We also offer the 39-512 track and 39-114L handle for this assembly. Thanks for posting!

Dimensions for 39-312
