Awning window operator

Question

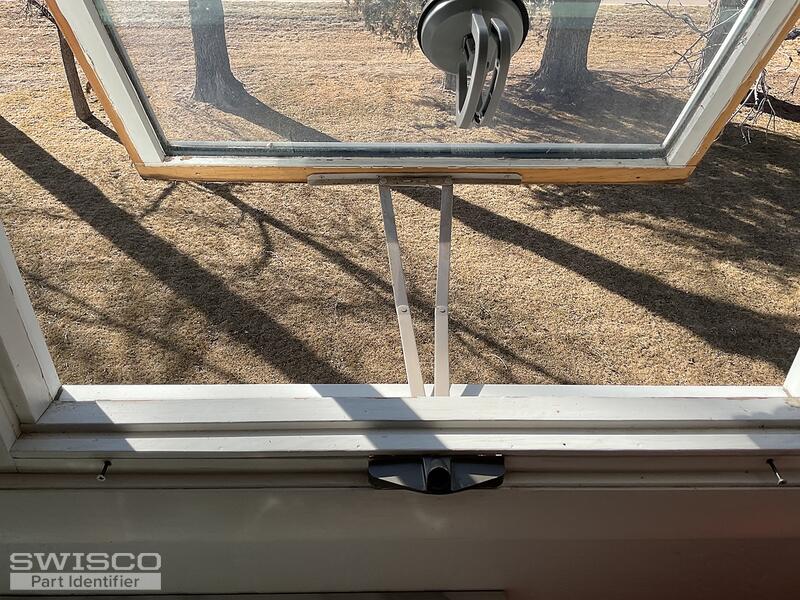

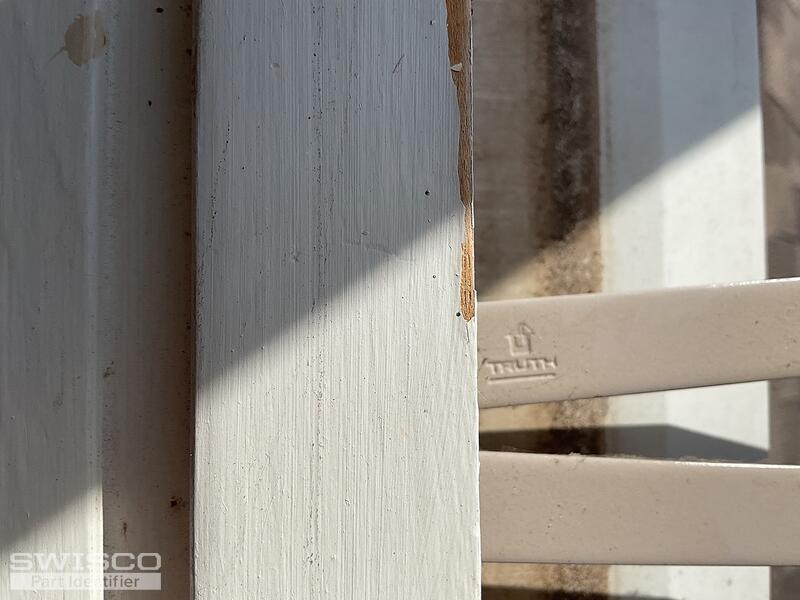

I believe this to be a Sealrite awning window built in about 1996. lt is a double window with each window having the physical dimension 31" x 31".

Jasmine · Accepted Answer

Hello,

Thanks for writing in! Your window operator appears to be the 39-083 Dual Arm Crank with a 21-1/2" arm measurement. This is used with the 39-114L Crank Handle.

If you are looking to replace the bracket, we suggest using the 39-170 Window Sash Bracket. Keep in mind, you would need to drill new installation holes in the wood sash to install it.

Dimensions for 39-083

Dimensions for 39-170
