BALANCER

Question

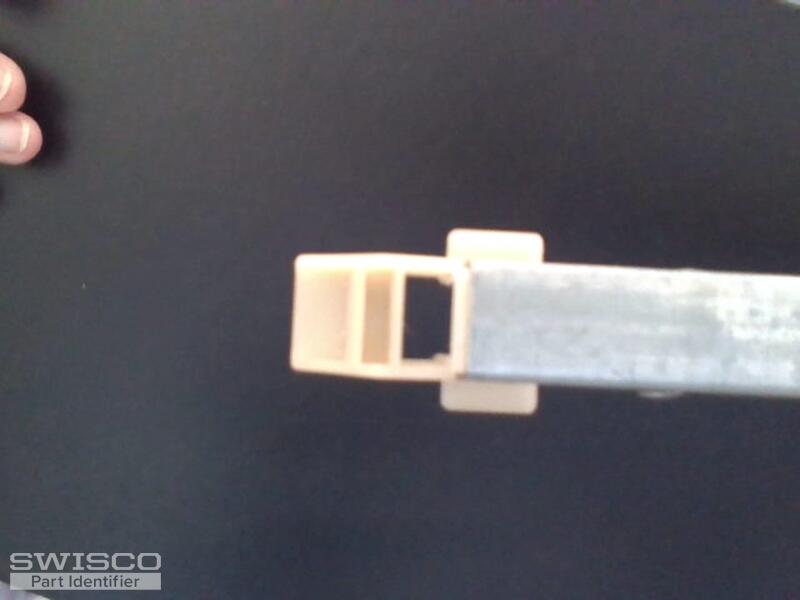

Please help me find the part number for the balancer to order for my Milgard single-hung window:
width: 1/2 inches
length: 27 inches
weight of hung window: 19 lb
If you need further information, I'll try to get them.

I greatly appreciate your help.
Thank you and have a great day.

Louise

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2640 spring strength options for your replacement balances to support a sash between 19-26 pounds. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
